Antares ASC+ - Page 15

ASC+ System Auto Split Charge & Engine Start Protect
User Guide and Installation Instructions
Document No 13362 Issue 04 Page 15 of 21

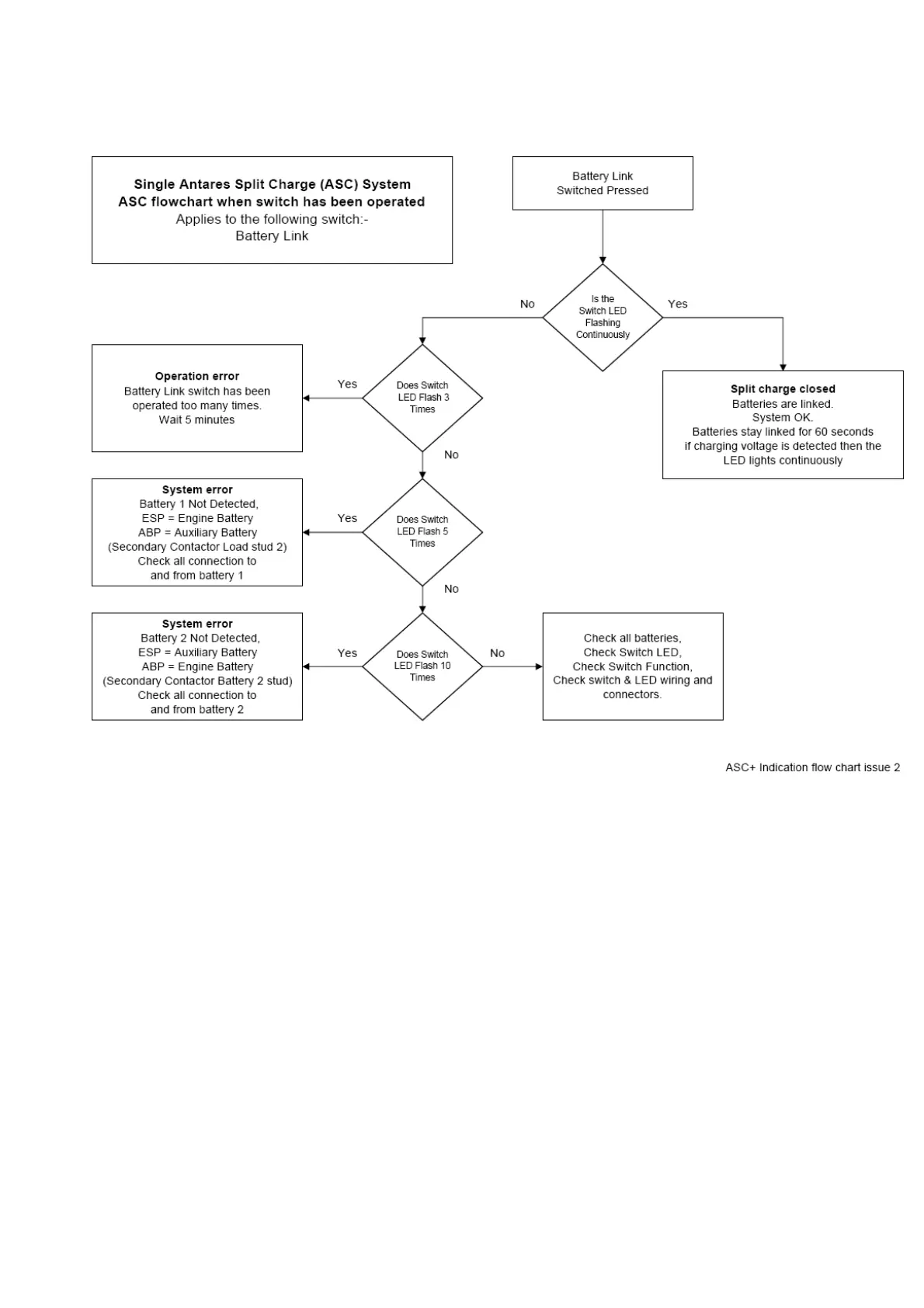

“Battery Link” switch LED flow chart when the switch has been operated
Figure 3
