Antennas Direct ClearStream 4 - Final Assembly and Electrical Connection; Helpful Installation Tips

877-825-5572
1699WestFifthStreet
Eureka,MO63025
www.antennasdirect.com

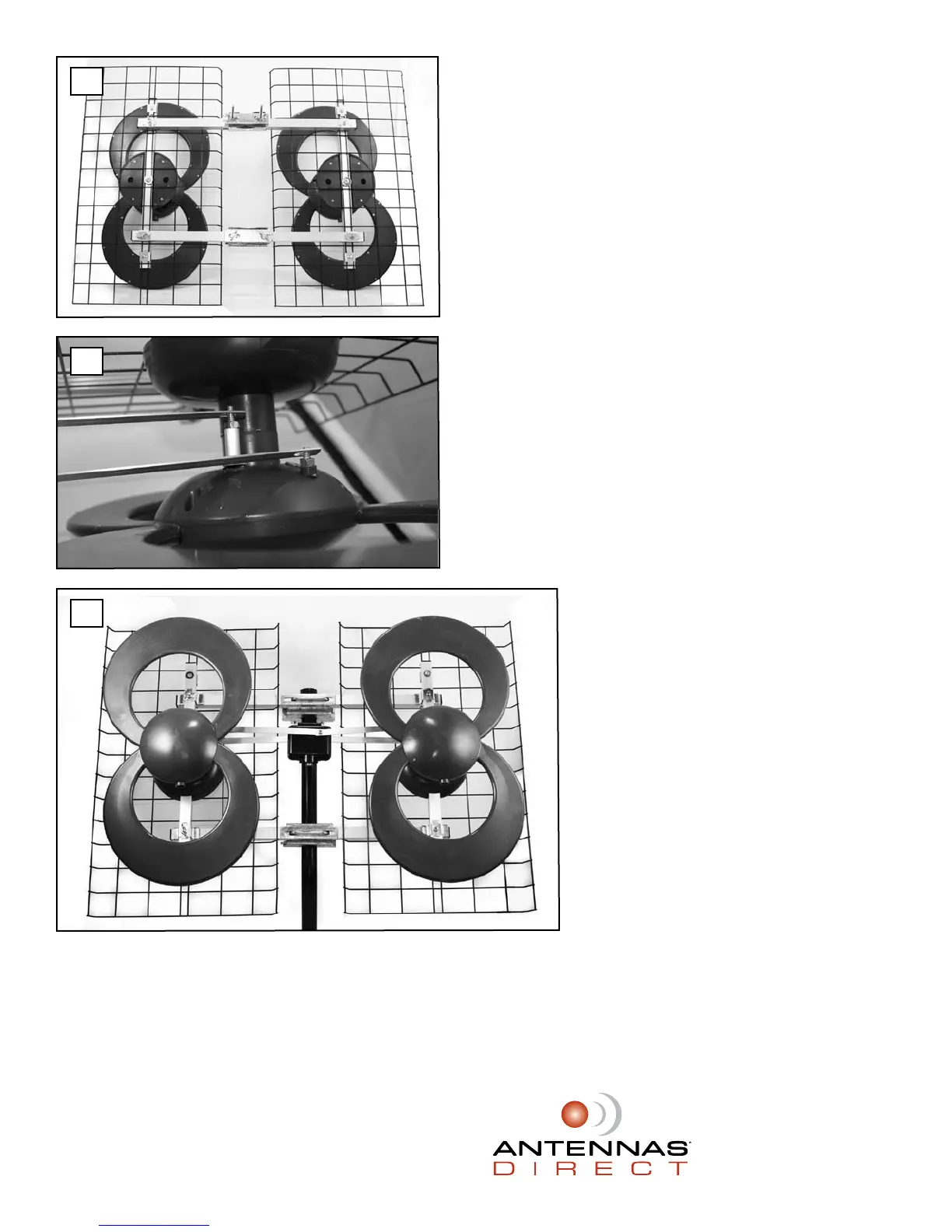

5. Bothhalvesofantennajoinedwithcrossbraces
attachedtotherearofthereectors.
Note:adjustableUboltmastclampsfacetherear
6. Attachthebussbarstotheterminalsoneach
halfoftheantennausingthesuppliedwingnuts.This
electricallyconnectsbothhalvesoftheantenna.
Helpful Tips:
• Ifyourcablerunisgreaterthan75’,Apre-ampliermayberequired.
• UHFsignalsarelineofsight.Getasmuchelevationaspractical.
• AtticInstallationswillcut40%-50%ofyoursignalstrength.
• KEEPANTENNAAWAYFROMPOWERLINES
7.AssemblyComplete.75Ohm
coax“F”connectionisatcenter.
C4shownwithoptionalJmount
5.
6.
7.
