877-825-5572
1699WestFifthStreet
Eureka,MO63025
www.antennasdirect.com

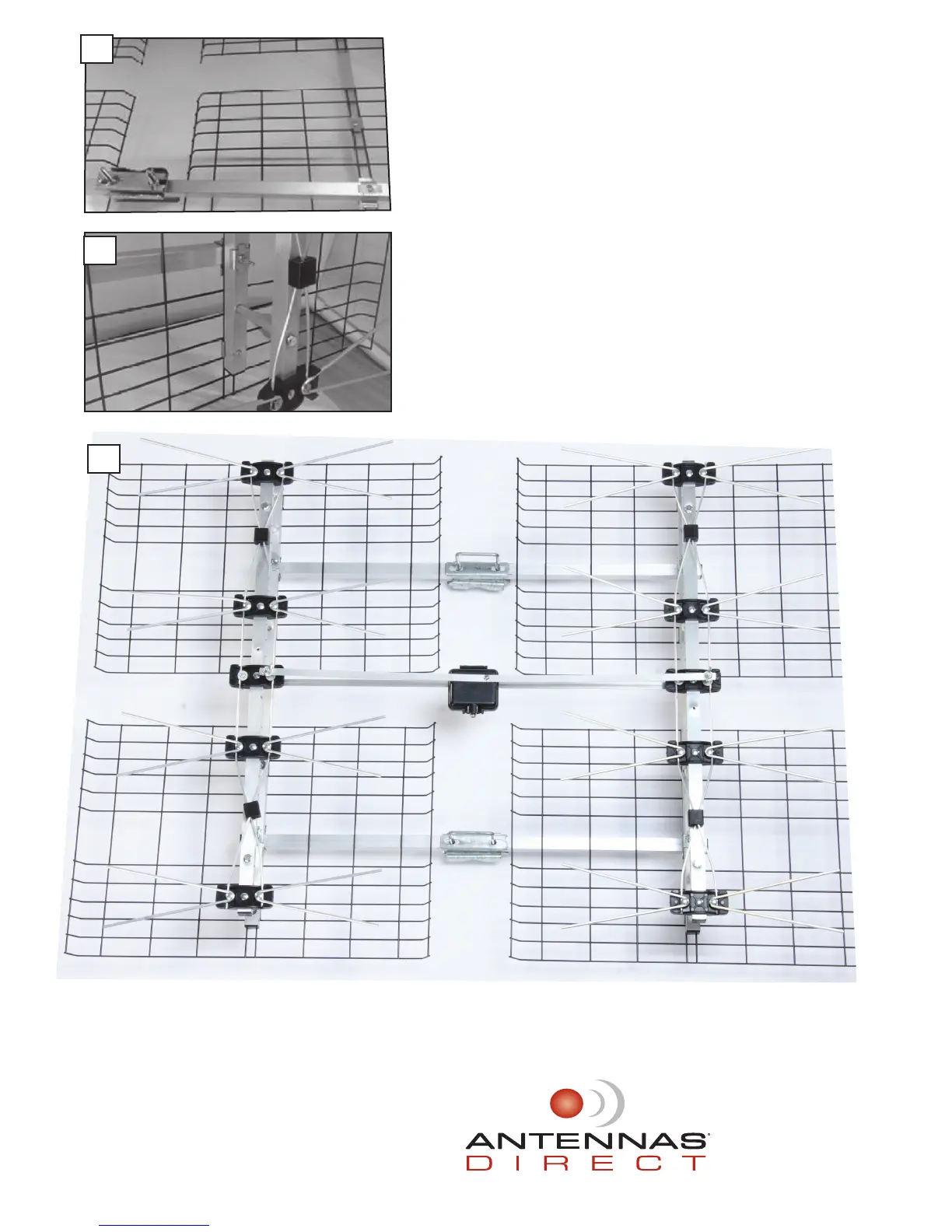

5. Note:adjustableUboltmastclampsfacetherear
5.
6. Attachthereectorstotheelementsusingthe
suppliedboltsandspacers.Slidethespacersover
theboltssothefrontandbackhalvesareseparated
by3.
6.
Helpful Tips:
• Ifyourcablerunisgreaterthan75’,Apre-ampliermayberequired.
• UHFsignalsarelineofsight.Getasmuchelevationaspractical.
• AtticInstallationswillcut40%-50%ofyoursignalstrength.
• KEEP ANTENNA AWAY FROM POWER LINES
7. Assembly Complete
7.
