S E T T I N G U P
The Integrated 2 comes with two (2) tubes, as follows:
6DJ8/6922 PREAMP TUBES
These tubes perform the line level preamplifying function of
the Integrated 2. The preamplifier stage of the Integrated 2
provides 15 db of gain. The 6DJ8/6922 tubes may also be
replaced with matched pairs of 7308 tubes.

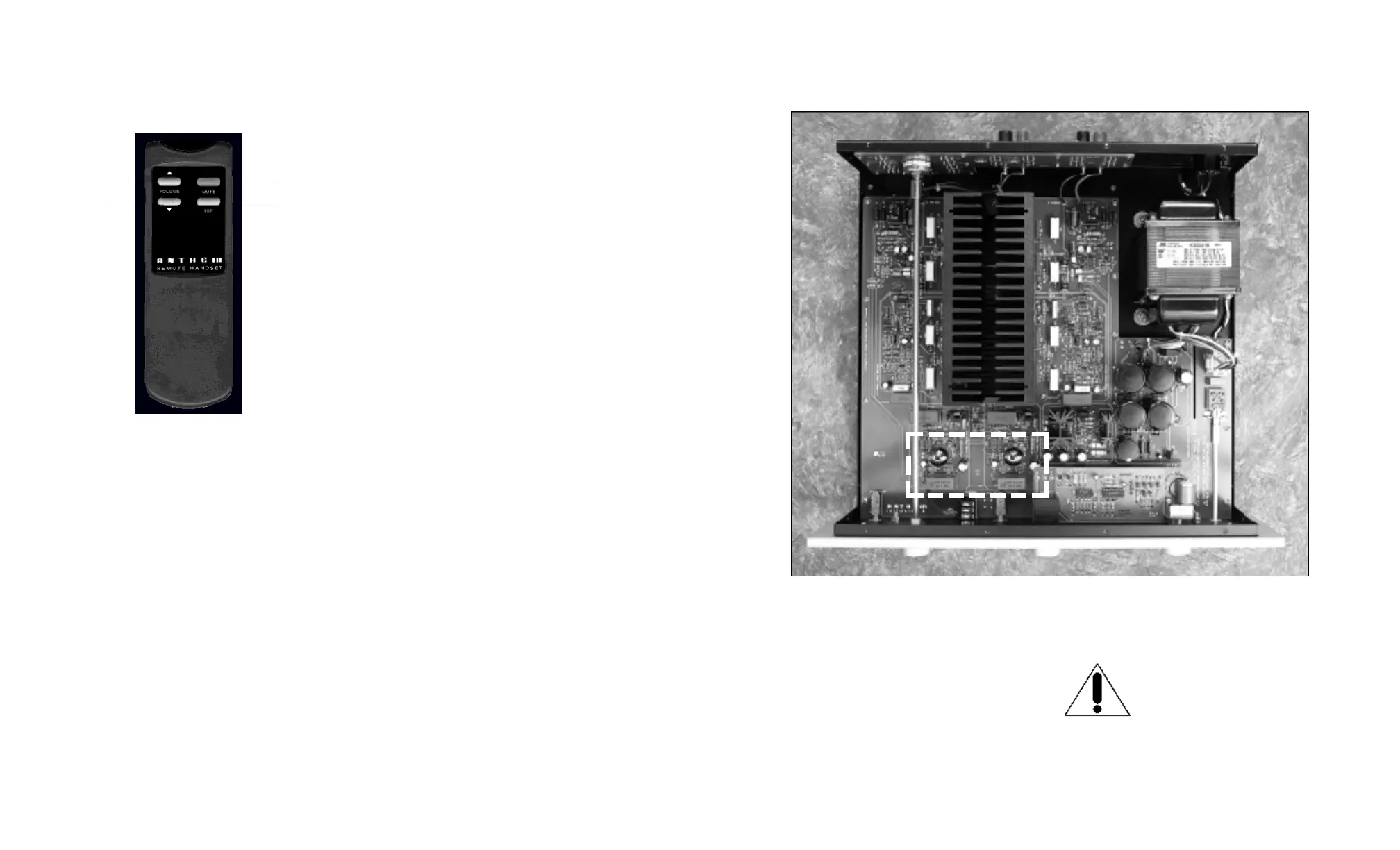

The tubes are labeled V1 & V2. Place each tube in the corre-
sponding position according to figure 1 above.
S
T
U
V
O T E C O N T R O L F U N C T I O N S
S VOLUME CONTROL UP
This button will increase the volume of the Integrated 2.
T VOLUME CONTROL DOWN
This button will decrease the volume of the Integrated 2.
U MUTE BUTTON
This button will Mute the outputs of the Integrated 2
until the button is pressed again. This Muting is indicat-
ed by the flashing of the LED (H).
V SSP BUTTON
This button will select an external Surround Sound
Processor or Preamplifier as the input, and bypass all
Integrated 2 Preamp functions.
