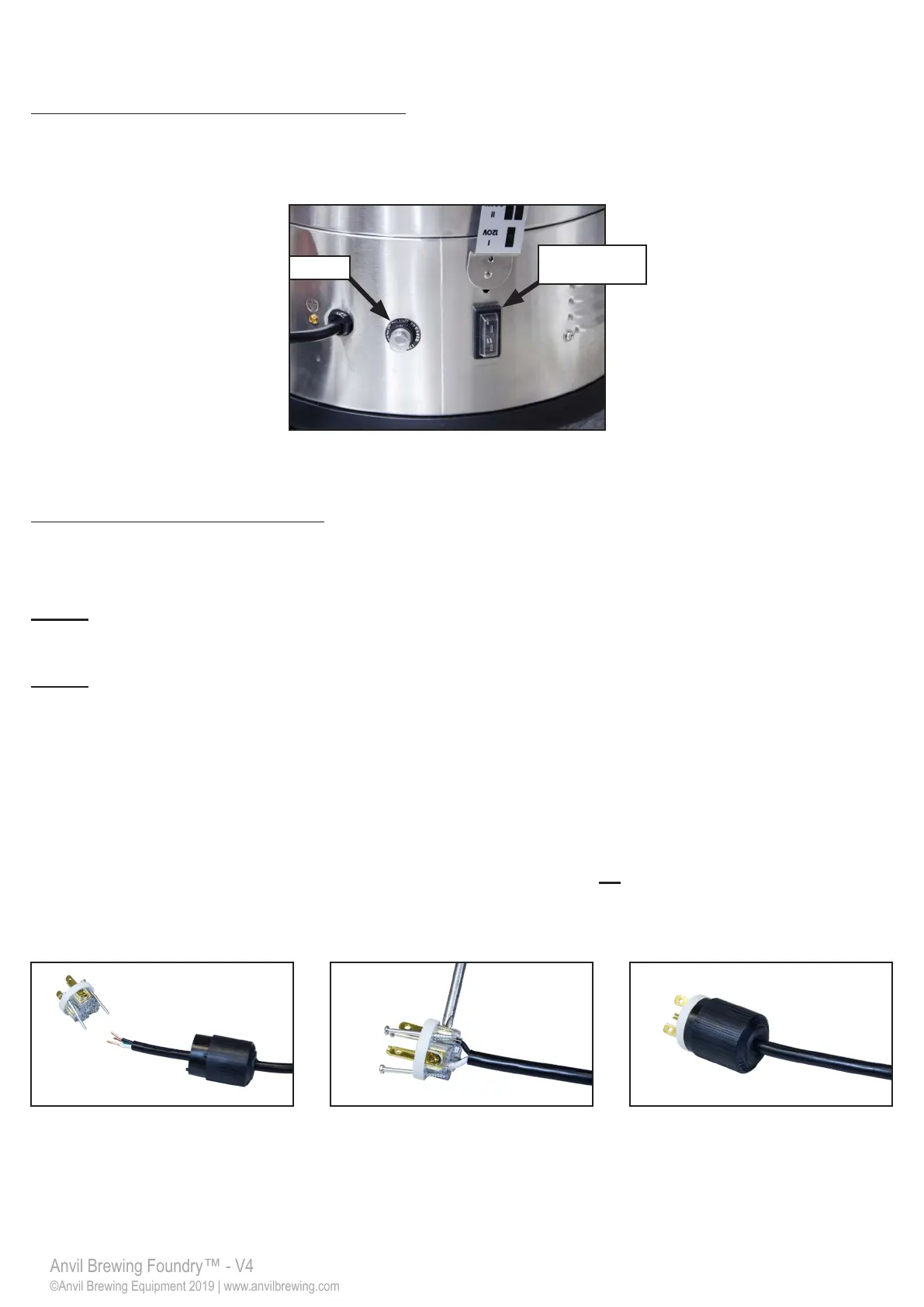

The Foundry™ comes standard set for 120V operation, but has a dual voltage feature. The Foundry™, in its 240V
conguration, will decrease heating times by about half and generate an excellent boil intensity. To use the Foundry™ at 240V,
rst follow the instructions in the 240V Wiring Guide. When the Foundry™ has a 240V plug installed, ip the switch, shown
below, from 120V to 240V.
240V Wiring Guide
Ensure the switch is set to the proper voltage before use. If you are uncertain about the voltage and capacity of your power source,
contact a licensed and qualied electrician familiar with National Electric Code standards before proceeding.
Warning: Operating the product with 240V power with the voltage selector switch set at 120V may cause permanent damage
to the product.
Warning: Ensure the Foundry™ is unplugged from any power source before wiring.
To operate the Foundry™ on 240V, cut off the 120V plug and strip the sleeve from the wires about one inch away from the end. Strip
each wire ½” away from the ends. Your plug may require different lengths. Tighten the terminal screws per the instructions included with
the plug.
Do not use ungrounded plugs for this application. Minimum capacity plug: 15 amps 240V.
One of the following plug types can be used for plugging the Foundry™ into a 240V outlet.
1. NEMA 6-15P
2. NEMA 6-20P
3. Any other UL listed plug that is rated for at least 15A @240V
Power Source Overview
Tip: With the correct adapter and GFCI
protection, dryer and stove connections
maybe used for your 240V power supply.
Breaker
Voltage Selector
Switch
To Next Page
