AOC 22B1H User Manual

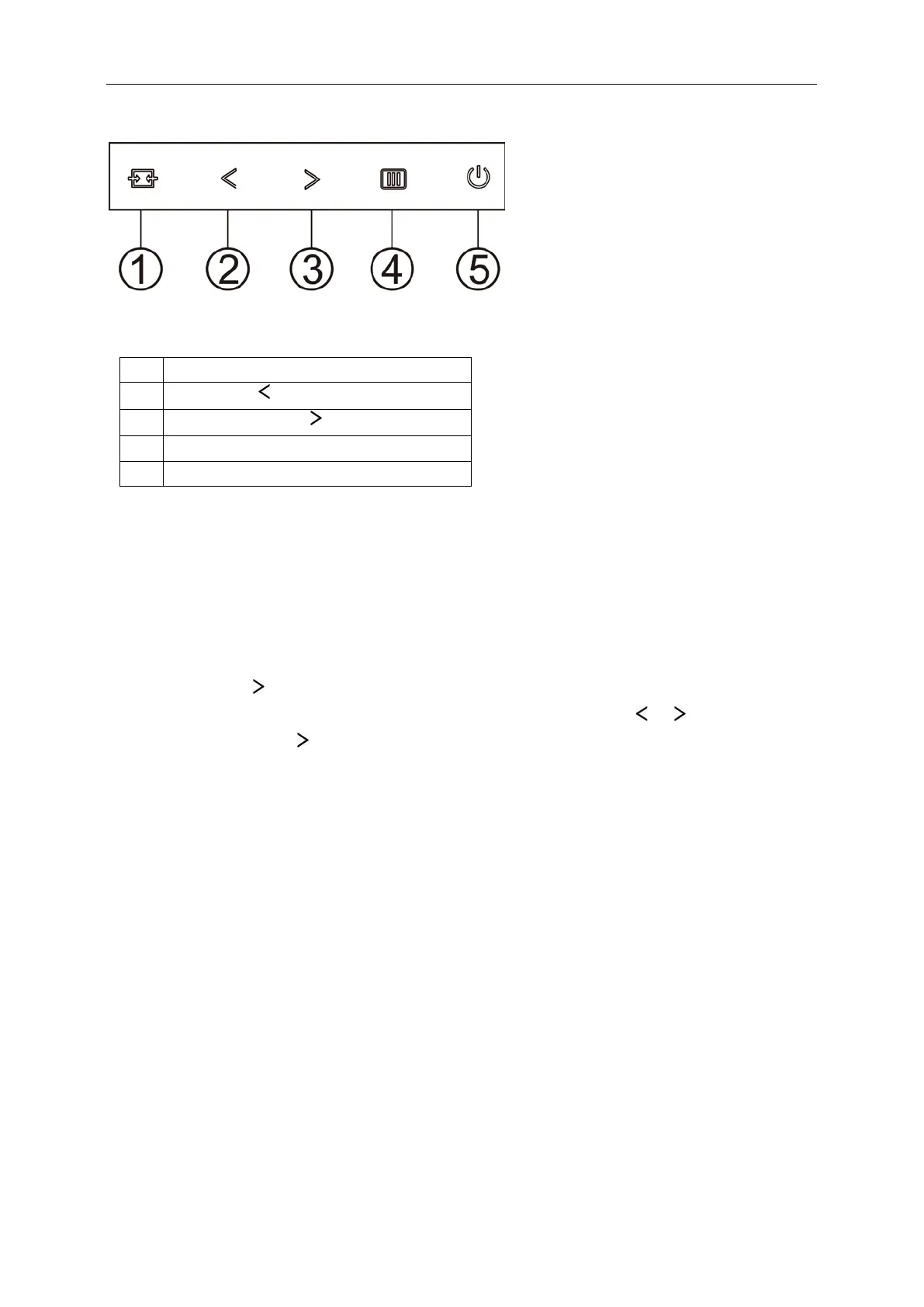

Hotkeys
1
Source/Auto/Exit
2
Clear Vision/
3
Image Ratio/Volume/
4
Menu/Enter
5
Power
Menu/Enter
Press to display the OSD or confirm the selection.
Power
Press the Power button to turn on/off the monitor.
Image Ratio/Volume/
When there is no OSD, Press Volume button to active volume adjustment bar, Press
or to adjust volume.
When there is no OSD, press
hotkey continuously to change 4:3 or wide image ratio. (If the product screen size
is 4:3 or input signal resolution is wide format, the hot key is disable to adjust).
Auto / Exit / Source hot key
When there is no OSD, Press Auto/Source button continuously about 2 second to do auto configure. When the
OSD is closed, press Source button will be Source hot key function. Press Source button continuously to select the
input source showed in the message bar, press Menu/Enter button to change to the source selected.
19

AOC 22B1H Specifications

General

3D	No
Panel type	TN
Pixel pitch	0.2482 x 0.2482 mm
Screen shape	Flat
Backlight type	W-LED
Display diagonal	21.5 \
Adobe RGB coverage	75 %
Display technology	LED
Native aspect ratio	16:9
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Viewable size, vertical	268.11 mm
Viewing angle, vertical	65 °
sRGB coverage (typical)	100 %
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Viewable size, horizontal	476.64 mm
Viewing angle, horizontal	90 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
Tilt angle range	-5 - 21.5 °
Number of OSD languages	16
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
HDMI version	1.4
DisplayPorts quantity	0
Headphone connectivity	3.5 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Power consumption (off)	0.5 W
Power consumption (typical)	17 W
Package type	Box
Package depth	125 mm
Package width	560 mm
Package height	464 mm
Package weight	4200 g
Mean time between failures (MTBF)	50000 h
Certification	ISO
Product color	Black
Heavy metals free	Hg (mercury)
Market positioning	Home
NVIDIA G-SYNC	-
Cables included	AC, HDMI
HDMI cable length	1.5 m
Sustainability certificates	RoHS, EPEAT Silver

Weight and Dimensions

Depth (with stand)	172 mm
Height (with stand)	401 mm
Weight (with stand)	2600 g
Depth (without stand)	33.3 mm
Width (without stand)	503.6 mm
Height (without stand)	301.66 mm
Weight (without stand)	2300 g
