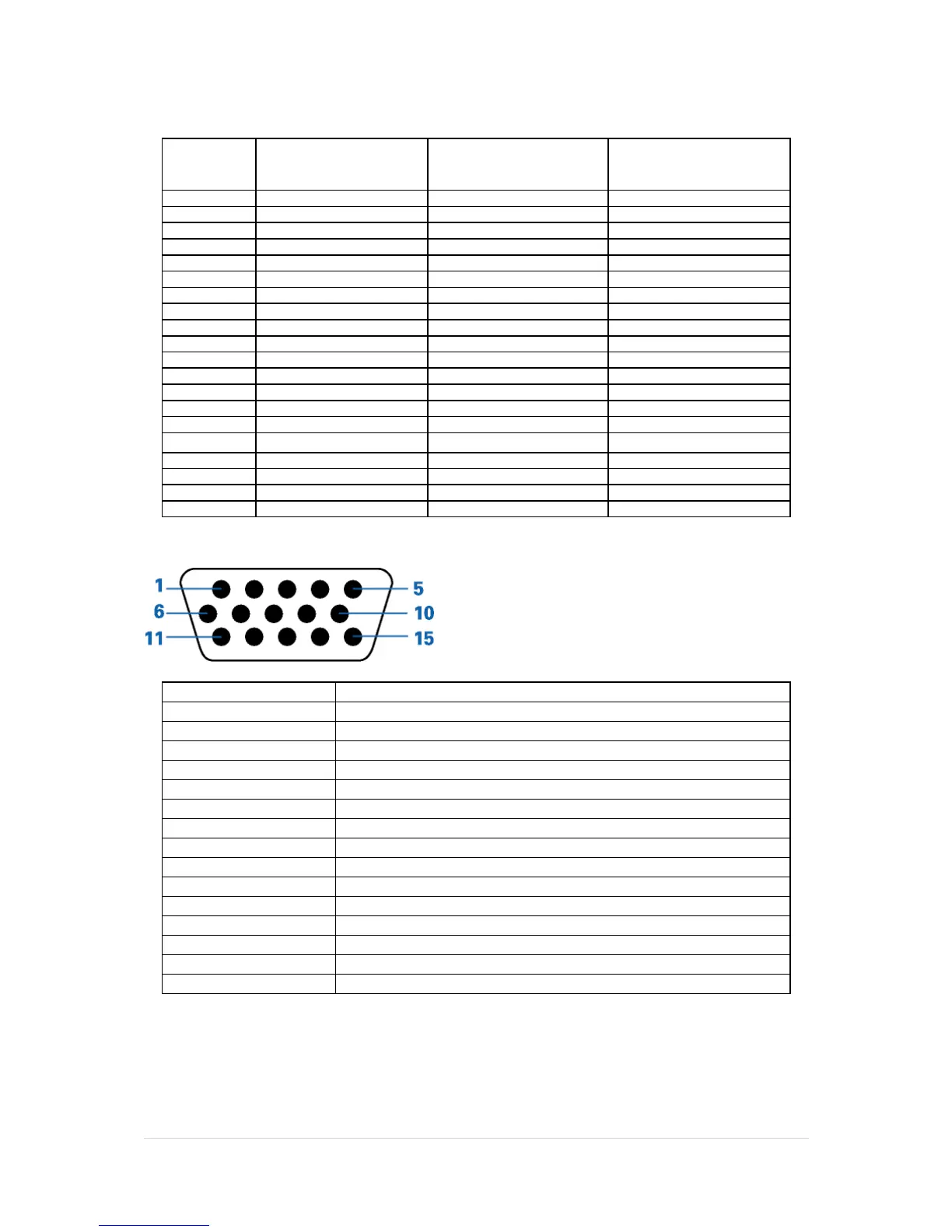

Preset Display Modes

STAND RESOLUTION

HORIZONTAL

FREQUENCY(kHZ)

ERTICAL

FREQUENCY(Hz)

VGA 640×480 @60Hz 31.469 59.940

VGA 640×480 @67Hz 35.000 66.667

VGA 640×480 @72Hz 37.861 72.809

VGA 640×480 @75Hz 37.500 75.000

Dos-mode 720×400 @70Hz 31.469 70.087

SVGA 800×600 @56Hz 35.156 56.250

SVGA 800×600 @60Hz 37.879 60.317

SVGA 800×600 @72Hz 48.077 72.188

SVGA 800×600 @75Hz 46.875 75.000

SVGA 832×624 @75Hz 49.725 74.550

XGA 1024×768 @60Hz 48.363 60.004

XGA 1024×768 @70Hz 56.476 70.069

XGA 1024×768 @75Hz 60.023 75.029

XGA 1024×768 @75Hz 60.241 74.927

*** 1280×960 @60Hz 60.000 60.000

SXGA 1280×1024 @60Hz 63.981 60.02

SXGA 1280×1024 @75Hz 79.976 75.025

WXGA+ 1440×900 @60Hz 55.935 59.887

WSXGA 1680X1050 @60Hz 65.290 59.954

HD 1920×1080@60Hz 67.500 60.000

Pin Assignments

Pin Number 15-Pin Side of the Signal Cable

1 Video-Red

2 Video-Green

3 Video-Blue

4 N.C.

5 Detect Cable

6 GND-R

7 GND-G

8 GND-B

9 +5V

10 Ground

11 N.C.

12 DDC-Serial data

13 H-sync

14 V-sync

15 DDC-Serial clock

Questions and Answers:

Need help?

Do you have a question about the AOC 2436Swa and is the answer not in the manual?

AOC 2436Swa Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Display diagonal	23.6 \
Viewing angle, vertical	160 °
Contrast ratio (typical)	-
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
USB Type-A downstream ports quantity	0
RMS rated power	4 W
Product color	Black
Panel mounting interface	- mm
Power consumption (standby)	1 W
Power consumption (typical)	49 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 5000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 80 %
Operating relative humidity (H-H)	10 - 85 %
