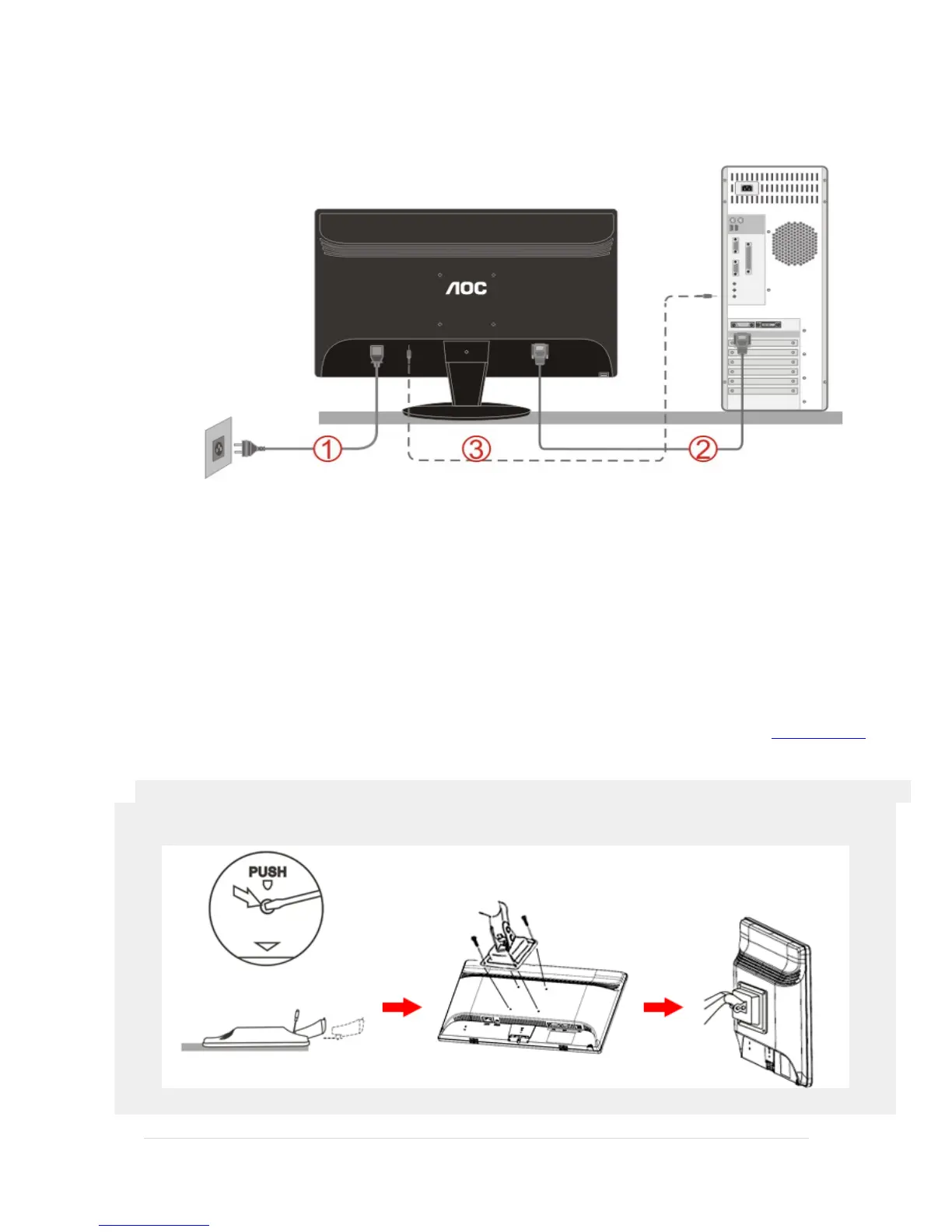

Cable Connections On Back of Monitor and Compute

1. Power

2. Analog (DB-15 VGA cable)

3.Audio

To protect equipment, always turn off the PC and LCD monitor before connecting.

1. Connect the power cable to the AC port on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3. Connect the audio cable to audio in port on the back of the monitor

4. Turn on your monitor and computer.

If your monitor displays an image, installation is complete. If it does not display an image, please refer Troubleshooting

Preparing to Install An Optional Wall Mounting Arm.

Questions and Answers:

Need help?

Do you have a question about the AOC 2436Swa and is the answer not in the manual?

AOC 2436Swa Specifications

General

3D	No
Pixel pitch	0.248 x 0.248 mm
Display diagonal	23.6 \
Viewing angle, vertical	160 °
Contrast ratio (typical)	-
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA)
USB Type-A downstream ports quantity	0
RMS rated power	4 W
Product color	Black
Panel mounting interface	- mm
Power consumption (standby)	1 W
Power consumption (typical)	49 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 5000 m
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 80 %
Operating relative humidity (H-H)	10 - 85 %
