10

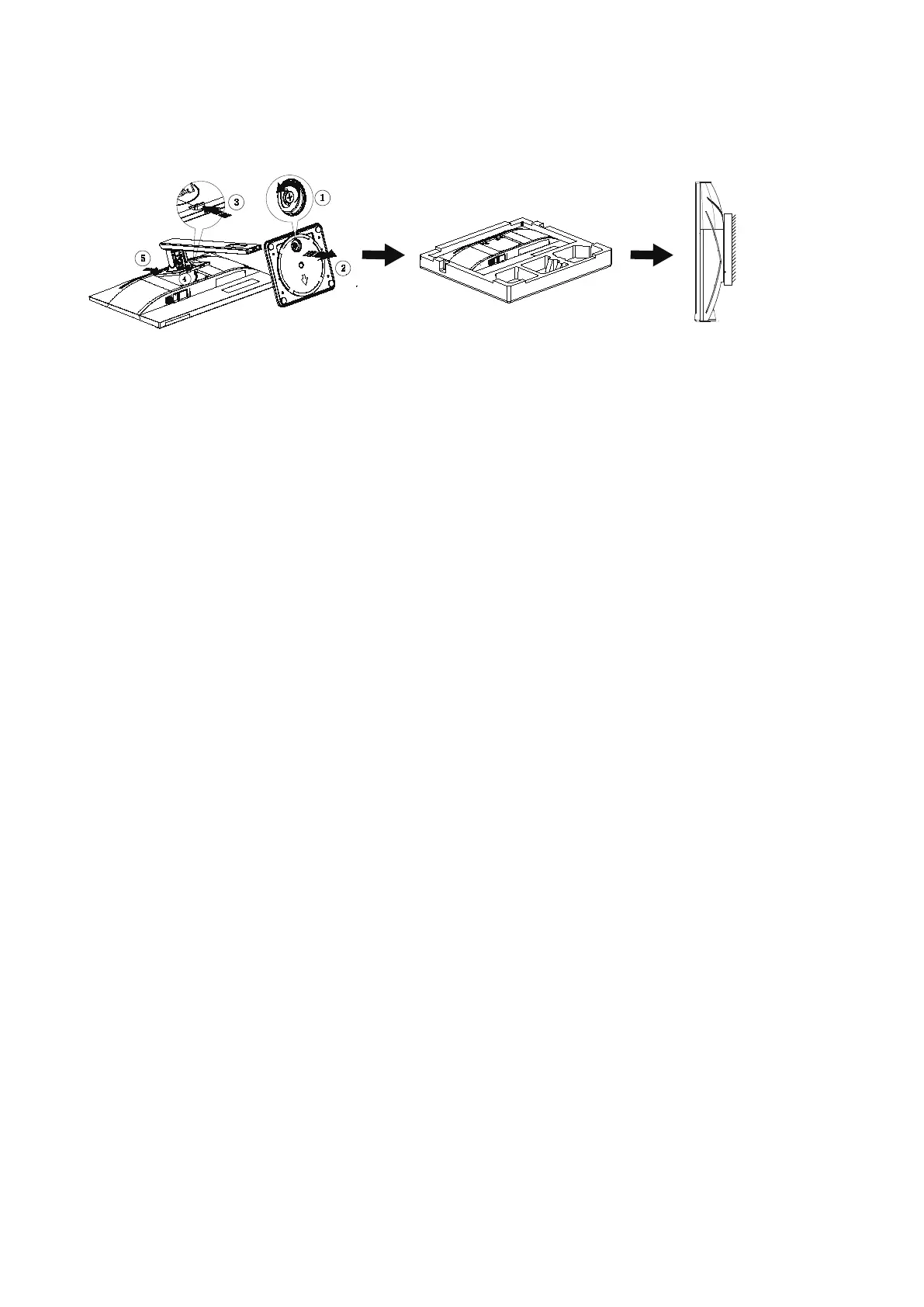

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.
This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure.
Follow these steps:
1. Remove the base.
2. Follow the manufacturer’s instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of
the monitor.
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on
attaching it to the wall.
Noted: VESA mounting screw holes are not available for all models, please check with the dealer or ofcial department of
AOC.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the AOC 24P2C and is the answer not in the manual?

AOC 24P2C Specifications

General IconGeneral
Color depth6 bit
Pixel pitch0.2745 x 0.2745 mm
Screen shapeFlat
Pixel density92 ppi
Backlight typeW-LED
Display surfaceMatt
Display diagonal23.8 \
Surface hardness3H
Anti-glare screenYes
Adobe RGB coverage79 %
Display technologyLED
Native aspect ratio16:9
Maximum refresh rate75 Hz
Horizontal scan range30 - 114 kHz
Supported video modes1080p
NTSC coverage (typical)72 %
Viewable size, vertical296.46 mm
sRGB coverage (typical)107 %
Contrast ratio (dynamic)50000000:1
Contrast ratio (typical)1000:1
Display number of colors16.7 million colors
Display diagonal (metric)60.452 cm
Viewable size, horizontal527.04 mm
Display scanning frequency30 - 114 KHz, 48 - 75 Hz
Display brightness (typical)300 cd/m²
Supported graphics resolutions1920 x 1080 (HD 1080)
RMS rated power2 W
Number of speakers2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Energy efficiency scaleA to G
Power consumption (standby)0.3 W
Power consumption (typical)25 W
HDMI version1.4
USB hub version3.2 Gen 1 (3.1 Gen 1)
DisplayPort version1.2
Headphone connectivity3.5 mm
USB Power Delivery up to65 W
VGA (D-Sub) ports quantity0
USB Type-A downstream ports quantity4
Pivot angle0 - 180 °
Tilt angle range-5 - 35 °
Height adjustment150 mm
Cable lock slot typeKensington
Number of OSD languages16
Panel mounting interface100 x 100 mm
On Screen Display (OSD) languagesCHI (SIMPL), CHI (TR), CRO, CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
CertificationTrue
Product colorBlack
Heavy metals freeHg (mercury)
Market positioningBusiness
CompatibilityVESA-P2
AMD FreeSync refresh rate range48 - 75 Hz
Audio cable length1.8 m
Package typeBox
Package depth160 mm
Package width610 mm
Package height525 mm
Package weight7270 g
Doesn't containPVC/BFR
Sustainability certificatesEPEAT Silver
Exterior finish typeTextured
Recyclable packaging material100 %
Harmonized System (HS) code85285210
Weight and Dimensions IconWeight and Dimensions
Depth (with stand)200.1 mm
Width (with stand)540.2 mm
Height (with stand)513 mm
Weight (with stand)5060 g
Depth (without stand)50.7 mm
Height (without stand)326.4 mm
Weight (without stand)5010 g
