AOC 60P Manual

59

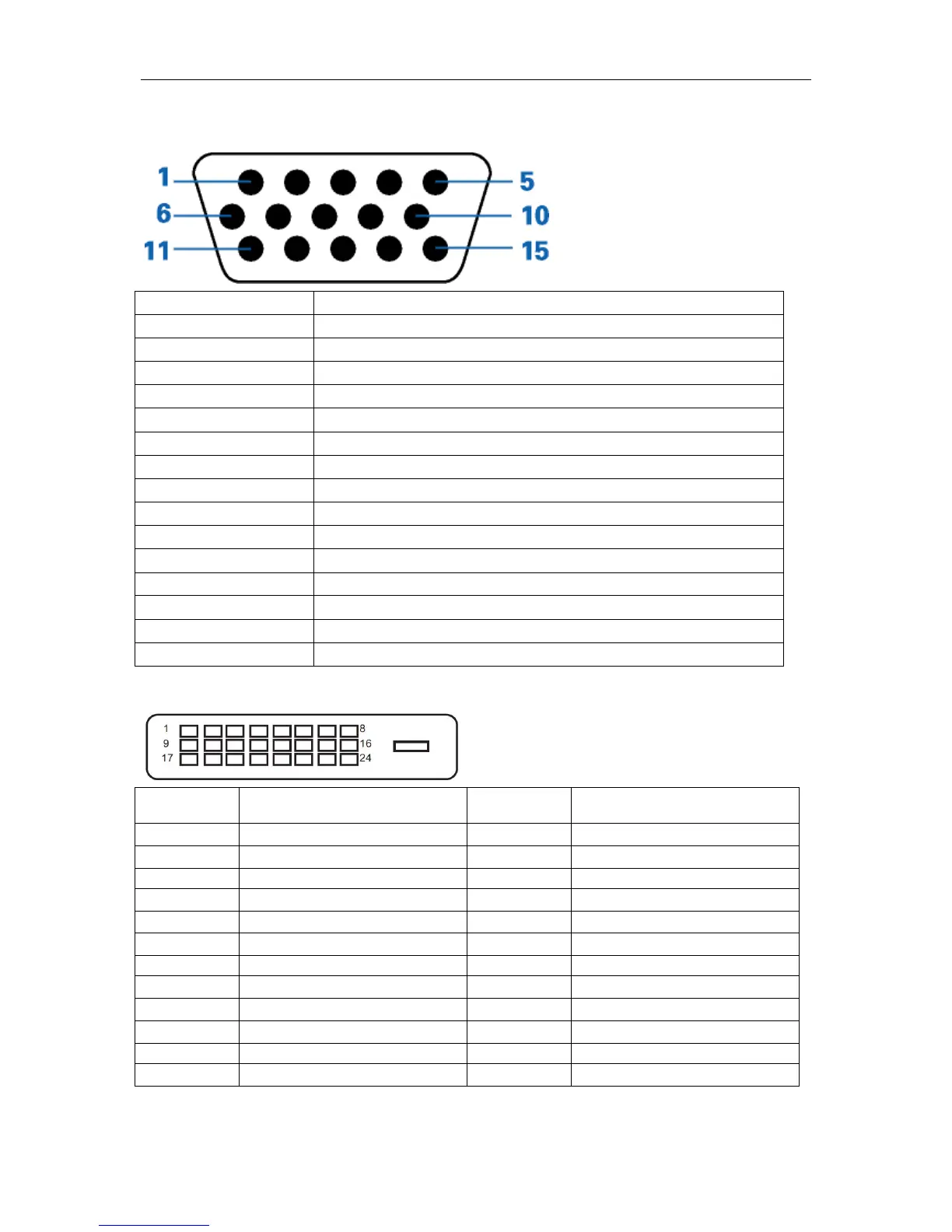

Pin Assignments
Pin Number
15
-
Pin Side of the Signal Cable
1
Video
-
Red
2
Video
-
Green
3
Video
-
Blue
s
N.C.
5
Detect Cable
6
GND
-
R
7
GND
-
G
8
GND
-
B
9
+5V
10
Ground
11
N.C.
12
DDC
-
Serial data
13
H
-
sync
14
V
-
sync
15
DDC
-
Serial clock
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4－ 16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5－
9 TMDS data 1－ 21 TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3－ 24 TMDS Clock －
