AOC 712SI User Manual

17” LCD Color Monitor AOC 712Si

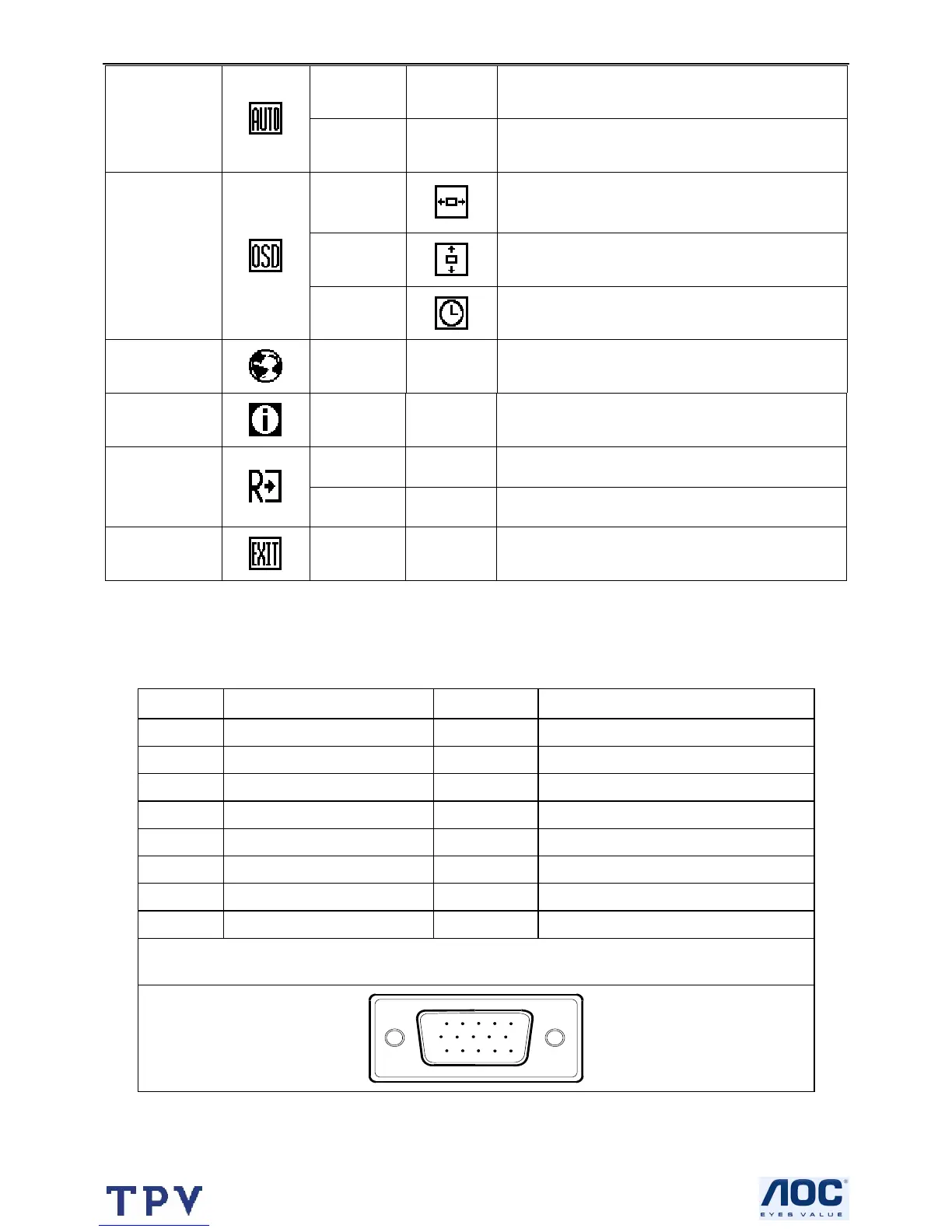

8
Yes N/A
Auto adjust the H/V Position,
Focus and clock of picture
Auto Config
No N/A
Do not execute Auto config return to main menu.
H. Position
Adjust the horizontal position of the OSD.
V. Position
Adjust the vertical position of the OSD.
OSD Setup
OSD Timeout
Adjust the OSD timeout.
Language
Language N/A
Set OSD language.
Information
Information N/A
Show the resolution, H/V frequency and input port of
current input timing.
Yes N/A
Clear each old status of Auto-configuration and set
the color temperature to Cool.
Reset
No N/A
Do not execute reset, return to main menu.
Exit
N/A N/A
Exit OSD
4. Input/Output Specification
4.1 Input Signal Connector
D-SUB connector
Pin No. Description Pin No. Description
1. Red Video 9. +5V Supply
2. Green Video 10. Logic Ground
3. Blue Video 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-Return 13. H-Sync
6. Red Ground 14. V-Sync
7. Green Ground 15. DDC-Serial Clock
8. Blue ground
Analog Connector
15
6
10
11 15

AOC 712SI Specifications

General

Brand	AOC
Model	712SI
Category	Monitor
Language	English
