Operating Instructions

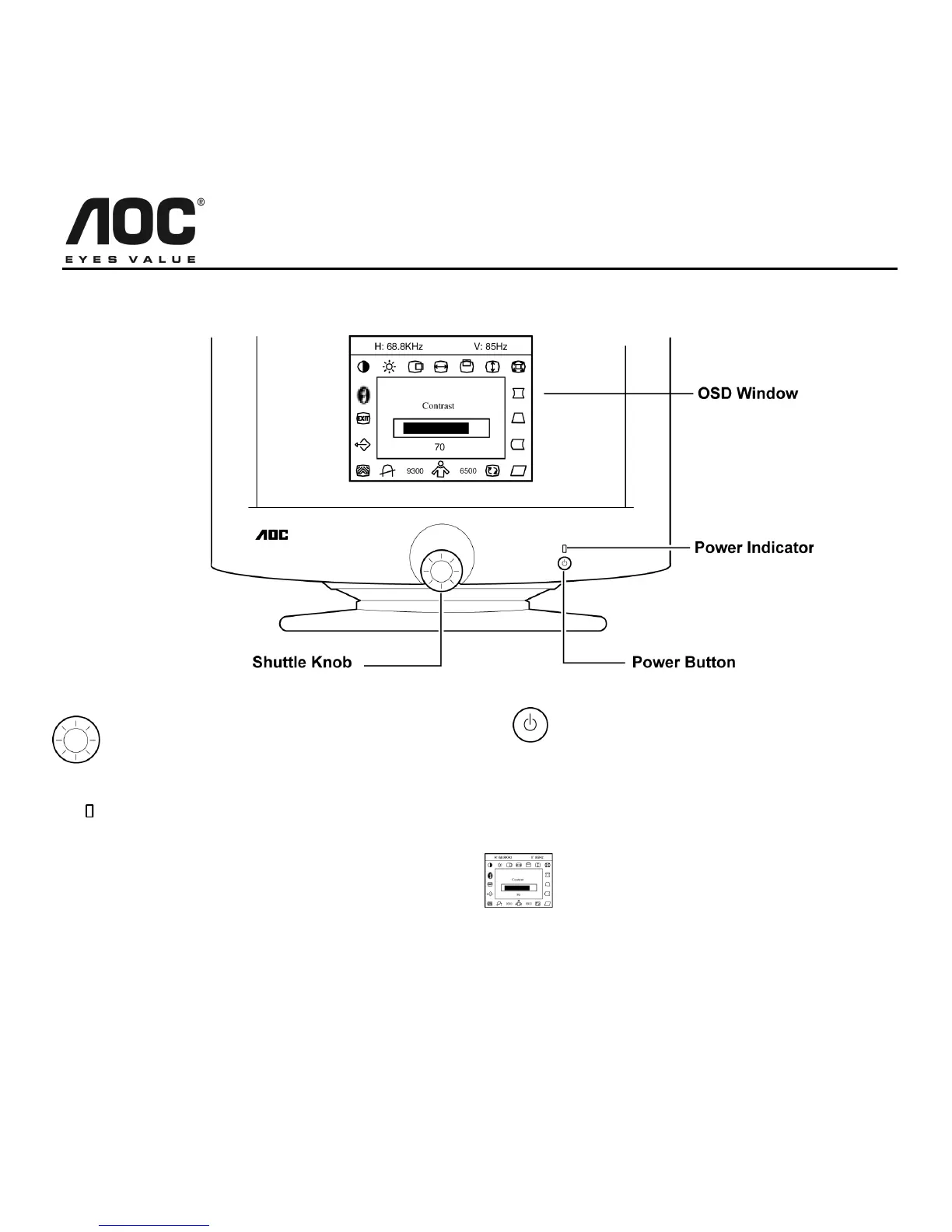

Front Panel Buttons
Shuttle Knob: Press this knob to open the
OSD window or select a highlighted function.
Rotate this knob to switch functions or adjust
settings.
Power Indicator: A green light indicates that
the monitor is on. An orange light indicates
that the monitor is in Off mode.
Note: This monitor automatically turns on
when it is plugged into an AC outlet.
Power: Press this button to put the monitor
into Off mode. The power indicator will turn
orange. Press and hold this button again to
restore the monitor to normal operation
mode.
On-screen Display (OSD): Press the
Shuttle Knob to open the OSD window
and adjust settings on your monitor.
(See next page.)
