- 6 -
Attaching the Cables

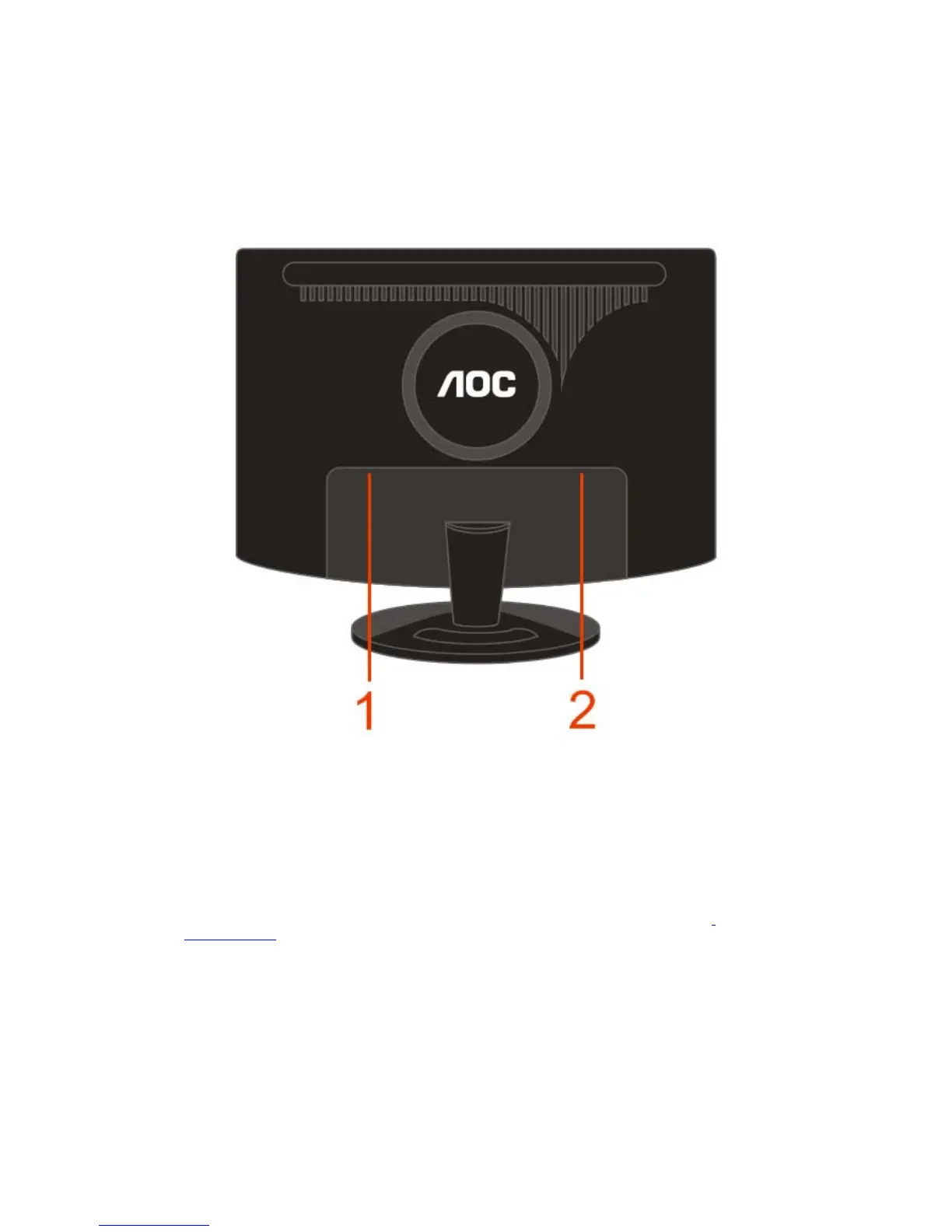

Cable Connections On Back of Monitor and Computer
1. Power
3. Analog
Turn off your computer before performing the procedure below.
1. Connect the power cable to the AC port on the back of the monitor.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other
end to the computer's D-Sub port.
3. Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, see
Troubleshooting.
Attaching Wall Mounting Arm
Preparing to Install An Optional Wall Mounting Arm
To Next Page
