This monitor can be attached to a wall mounting arm you purchase separately.
Disconnect power before this procedure. Follow these steps:

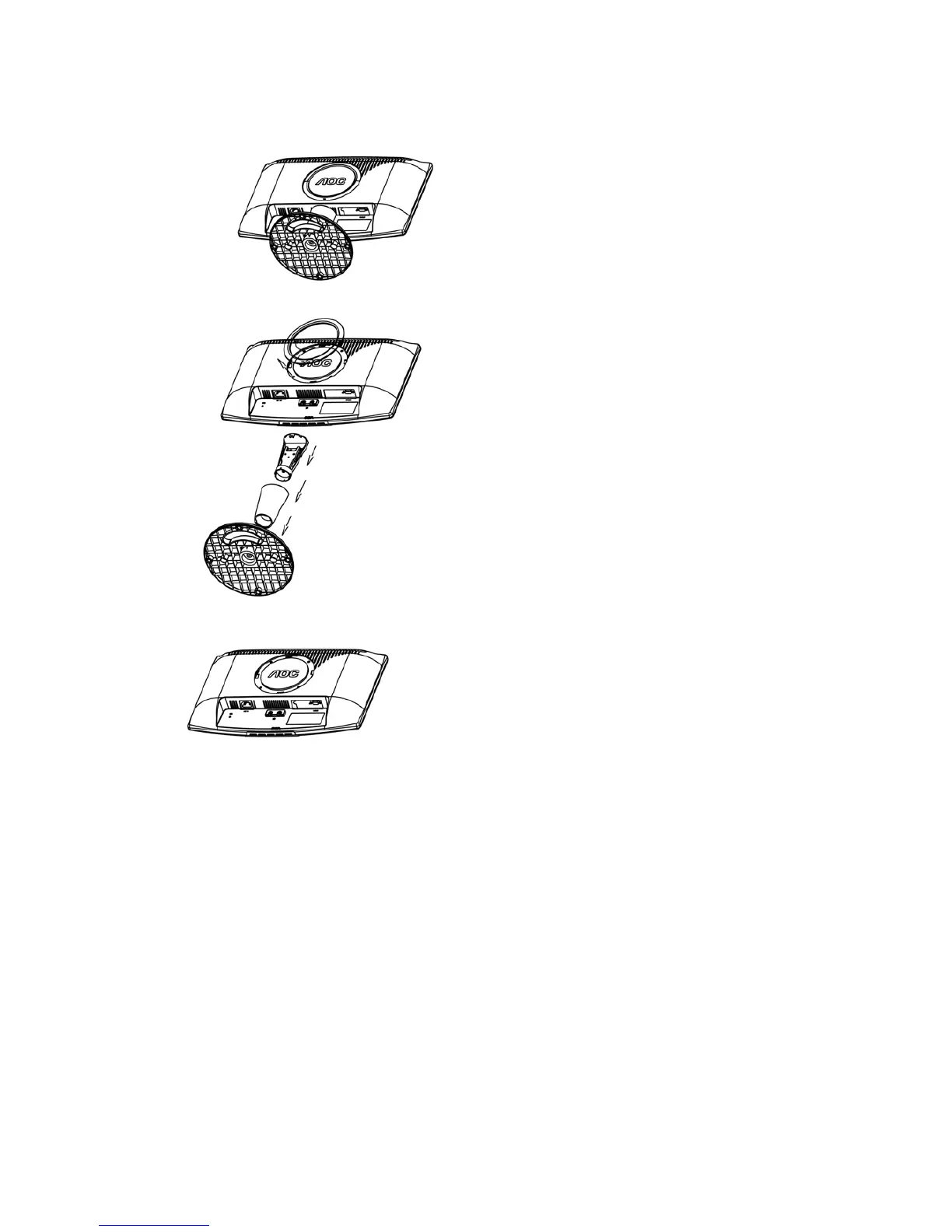

1. Remove the base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with
the holes in the back of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting
arm for instructions on attaching it to the wall.
Noted : VESA mounting screw holes are not available for all models, please check with the dealer or
official department of AOC.
Distance between the wall-mount holes : 100 x 100 mm
Screw specification for wall-mount : M4 x 10
