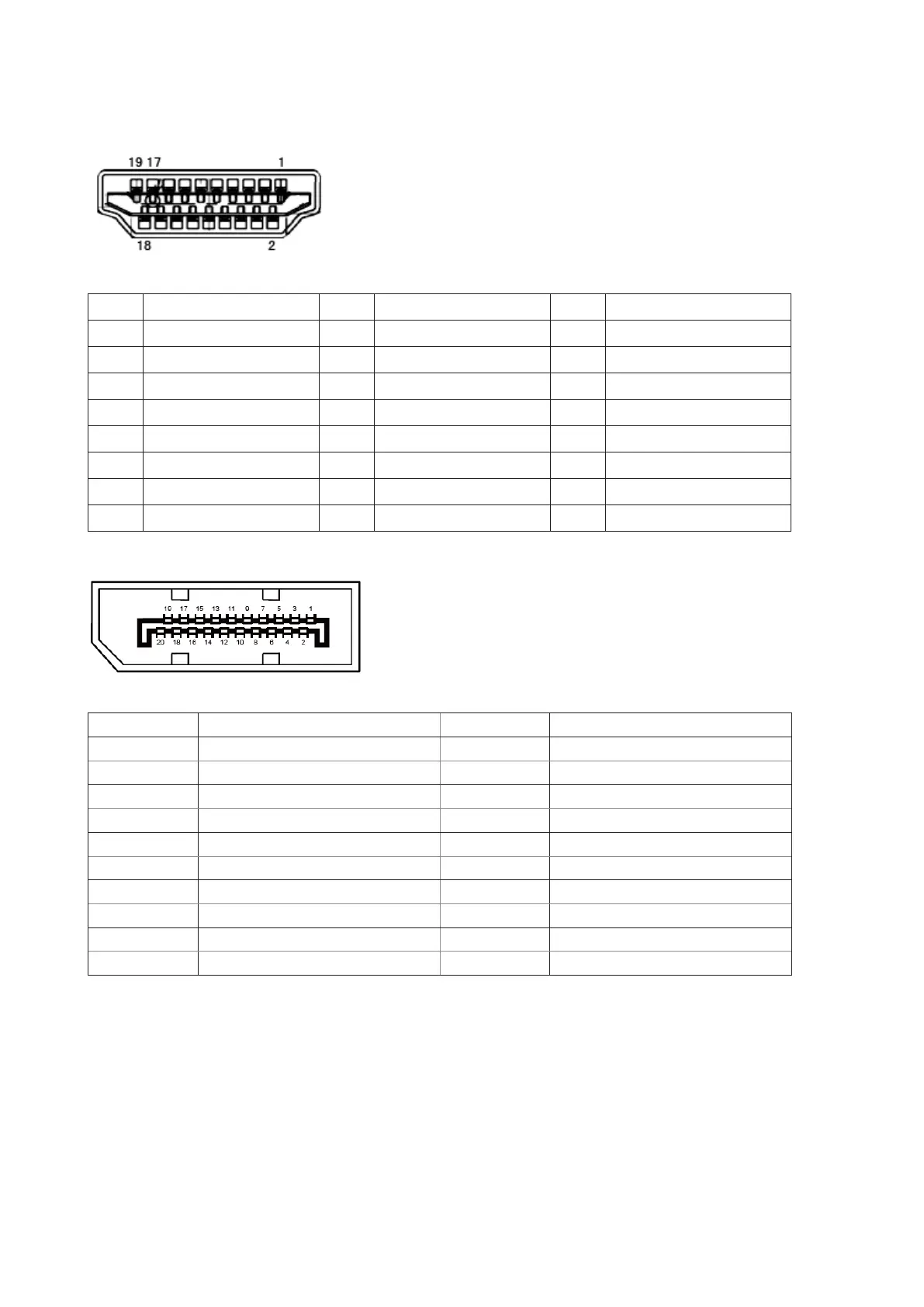

Pin Assignments

19-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name

1. TMDS Data 2+ 9. TMDS Data 0- 17. DDC/CEC Ground

2. TMDS Data 2 Shield 10. TMDS Clock + 18. +5V Power

3. TMDS Data 2- 11. TMDS Clock Shield 19. Hot Plug Detect

4. TMDS Data 1+ 12. TMDS Clock-

5. TMDS Data 1Shield 13. CEC

6. TMDS Data 1- 14. Reserved (N.C. on device)

7. TMDS Data 0+ 15. SCL

TMDS Data 0 Shield

16.

SDA

20-Pin Color Display Signal Cable

Pin No. Signal Name Pin No. Signal Name

1 ML_Lane 3 (n) 11 GND

2 GND 12 ML_Lane 0 (p)

3 ML_Lane 3 (p) 13 CONFIG1

4 ML_Lane 2 (n) 14 CONFIG2

5 GND 15 AUX_CH(p)

6 ML_Lane 2 (p) 16 GND

7 ML_Lane 1 (n) 17 AUX_CH(n)

8 GND 18 Hot Plug Detect

9 ML_Lane 1 (p) 19 Return DP_PWR

10 ML_Lane 0 (n) 20 DP_PWR
