3. Operating Instructions

3.1 Connecting the Monitor

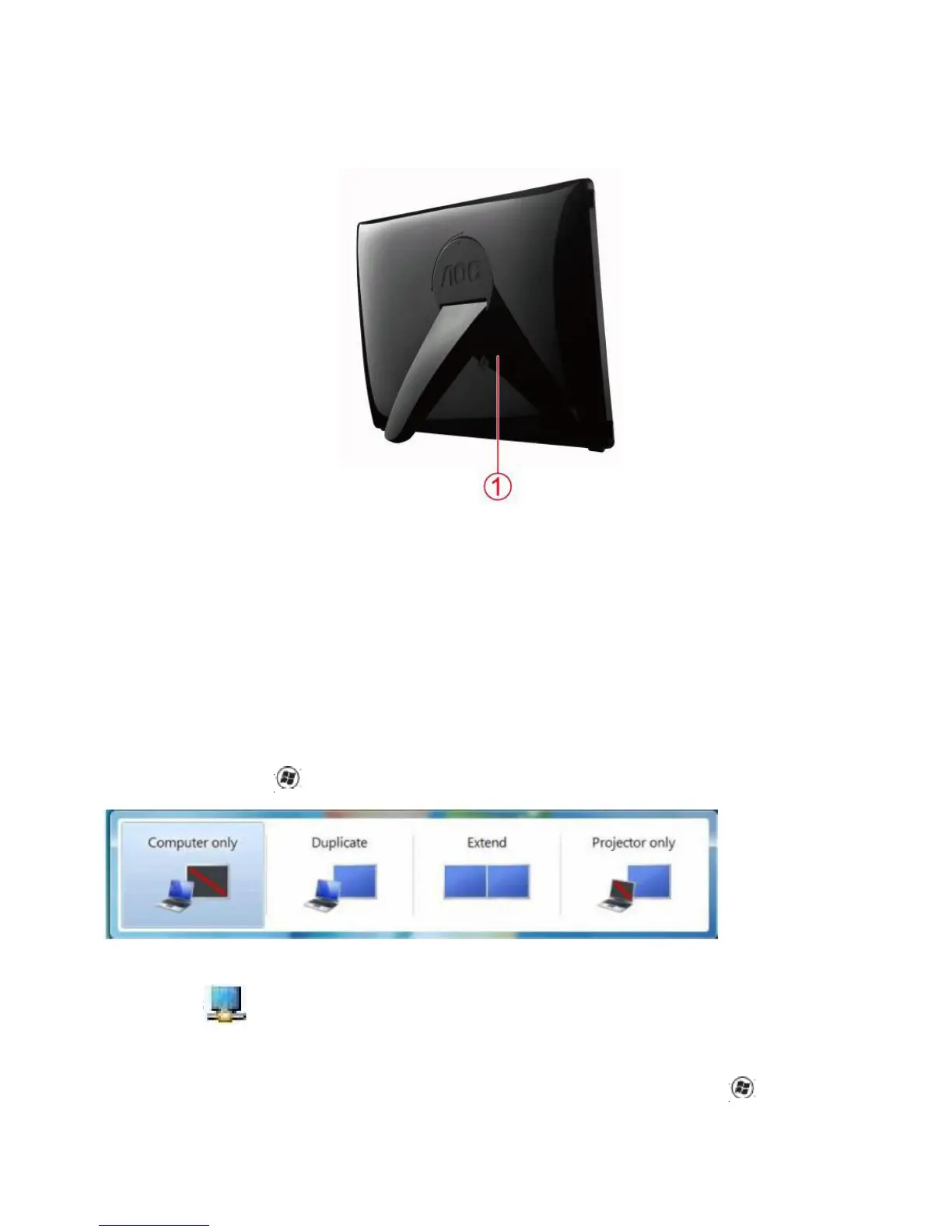

Cable Connections In Rear of Monitor to Connect PC/Laptop:

Important!! Follow the software installation described on page 11 to 15 before connecting the USB monitor to your

Laptop/PC.

1 Connecting the LCD monitor to your computer

To protect the equipment, always turn off the computer before connecting.

- Connect one end of the USB cable to the LCD monitor and the end of USB cable to the computer.

- Your computer should detect the USB Monitor automatically.

Follow the procedure described starting on page 16 to configure your USB Monitor. Note: Some computers may not

provide enough power to the LCD monitor from one USB port.

If so, connect the other USB connector on the Y end of the cable into another USB on your computer.

3.2 Control the Display

You can use the AOC USB LCD monitor in mirror mode or extended mode. Settings may vary depending on your

operating system.

For Microsoft® Windows® 7

Press the Windows® key ( ) + P to switch between different modes as shown below.

For Microsoft® Windows® XP and Microsoft® Windows Vista®

Right-click the “ ”icon in the system tray of your Windows ® desktop to configure the display settings

Disconnecting the LCD Monitor

1. For Microsoft® Windows® 7 only, you can turn the monitor OFF by pressing the Windows key ( ) + P, and then

selecting “Computer only”. For Microsoft® Windows vista® and Windows® XP, you can select OFF by right-Clicking

Other manuals for AOC e1649Fwu

Questions and Answers:

Need help?

Do you have a question about the AOC e1649Fwu and is the answer not in the manual?

General

3D	No
Pixel pitch	0.252 x 0.252 mm
Aspect ratio	16:9
Display surface	-
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Vertical scan range	30 - 50 Hz
Horizontal scan range	30 - 60 kHz
Viewable size, vertical	193.5 mm
Viewing angle, vertical	50 °
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewable size, horizontal	344.2 mm
Viewing angle, horizontal	90 °
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1366 x 768, 640 x 480 (VGA)
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	1
Certification	EPEAT, cULus, FCC, RoHS, EPA 5.0
Product color	Black
Plug and Play	Yes
Panel mounting interface	- mm
Power consumption (standby)	- W
Power consumption (typical)	8 W
Package depth	101 mm
Package width	444 mm
Package height	301 mm
Package weight	1700 g
Sustainability certificates	ENERGY STAR
