4. Panel Specification

4. 1 General Features

B156XW02 V6 is a Color Active Matrix Liquid Crystal Display composed of a TFT LCD panel, a driver circuit, and

LED backlight system. The screen format is intended to support the 16:9 HD, 1366(H) x768(V) screen and 262k

colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are LVDS interface compatible.

B156XW02 V6 is designed for a display unit of notebook style personal computer and

industrial machine.

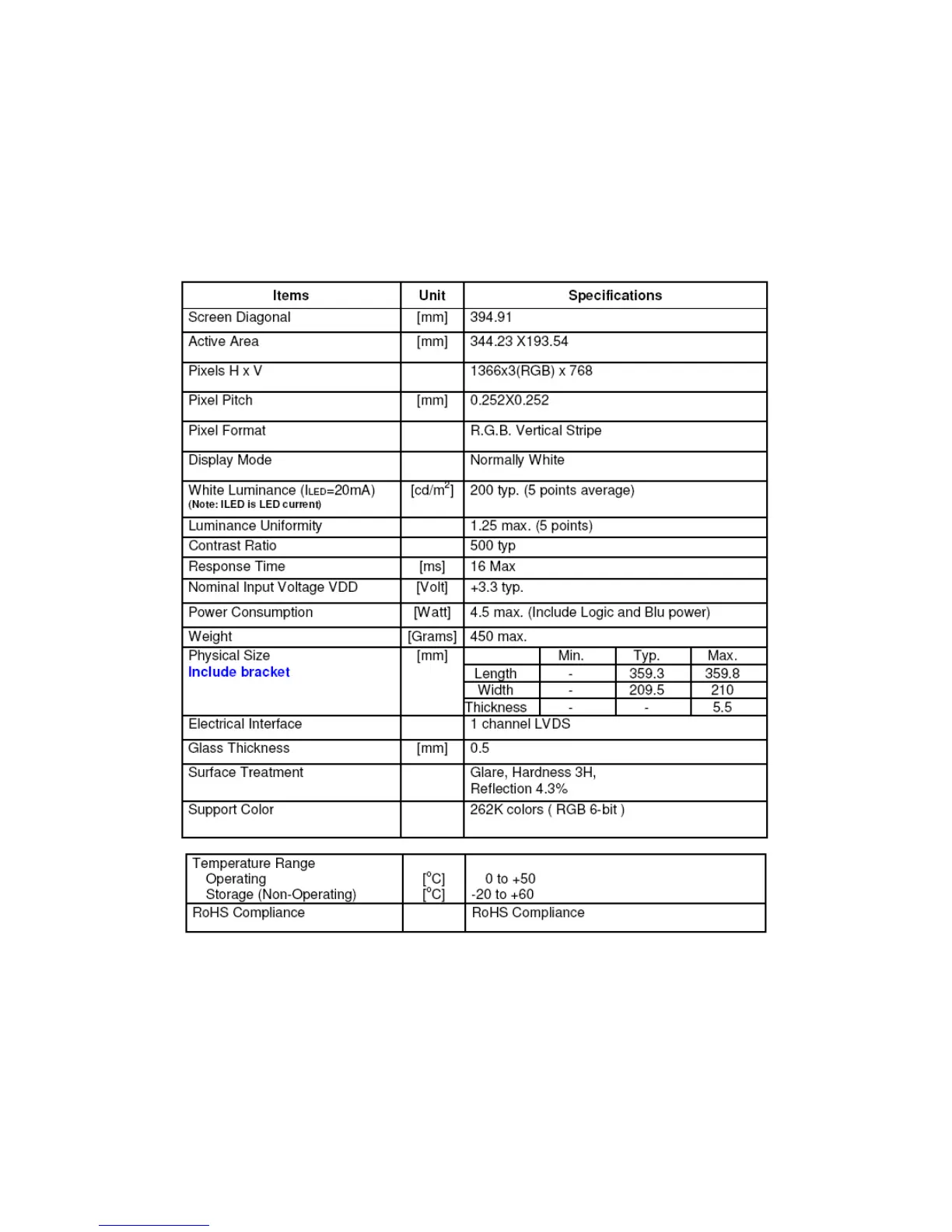

4.2 General Specifications

4.3 Electrical Characteristics

Electrical characteristics

Other manuals for AOC e1649Fwu

Questions and Answers:

Need help?

Do you have a question about the AOC e1649Fwu and is the answer not in the manual?

General

3D	No
Pixel pitch	0.252 x 0.252 mm
Aspect ratio	16:9
Display surface	-
Display diagonal	15.6 \
Display resolution	1366 x 768 pixels
Vertical scan range	30 - 50 Hz
Horizontal scan range	30 - 60 kHz
Viewable size, vertical	193.5 mm
Viewing angle, vertical	50 °
Contrast ratio (dynamic)	50000000:1
Contrast ratio (typical)	500:1
Display number of colors	16.78 million colors
Viewable size, horizontal	344.2 mm
Viewing angle, horizontal	90 °
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1366 x 768, 640 x 480 (VGA)
USB hub version	2.0
VGA (D-Sub) ports quantity	0
USB Type-A downstream ports quantity	1
Certification	EPEAT, cULus, FCC, RoHS, EPA 5.0
Product color	Black
Plug and Play	Yes
Panel mounting interface	- mm
Power consumption (standby)	- W
Power consumption (typical)	8 W
Package depth	101 mm
Package width	444 mm
Package height	301 mm
Package weight	1700 g
Sustainability certificates	ENERGY STAR
