AOC e2051Sn Service Manual

24

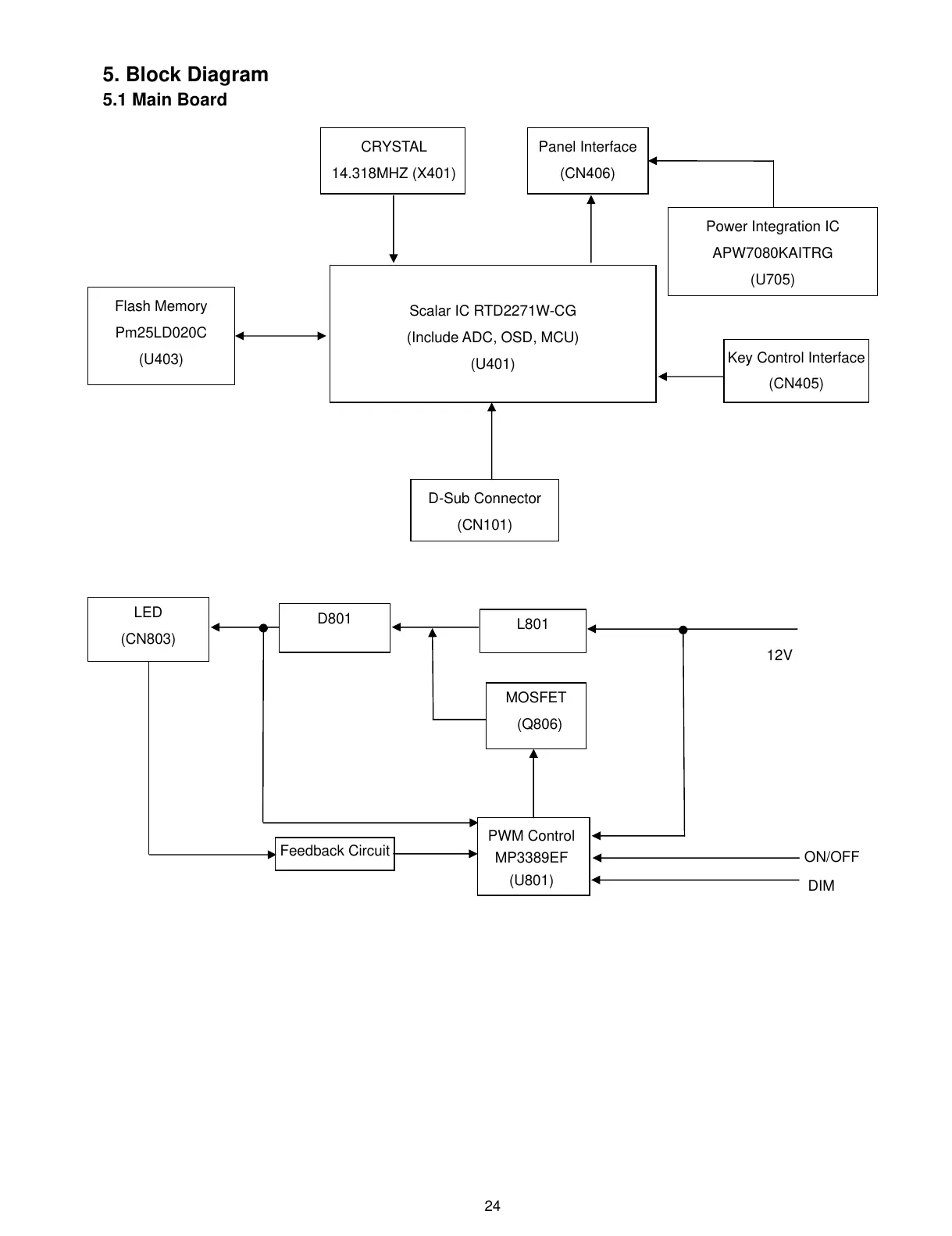

5. Block Diagram
5.1 Main Board
DIM
ON/OFF
Feedback Circuit
D801
L801
PWM Control
MP3389EF
(U801)
12V
LED
(CN803)
MOSFET
(Q806)
CRYSTAL
14.318MHZ (X401)
Flash Memory
Pm25LD020C
(U403)

Scalar IC RTD2271W-CG
(Include ADC, OSD, MCU)
(U401)
Panel Interface
(CN406)
Key Control Interface
(CN405)
D-Sub Connector
(CN101)
Power Integration IC
APW7080KAITRG
(U705)
