AOC e2060Sn User Manual

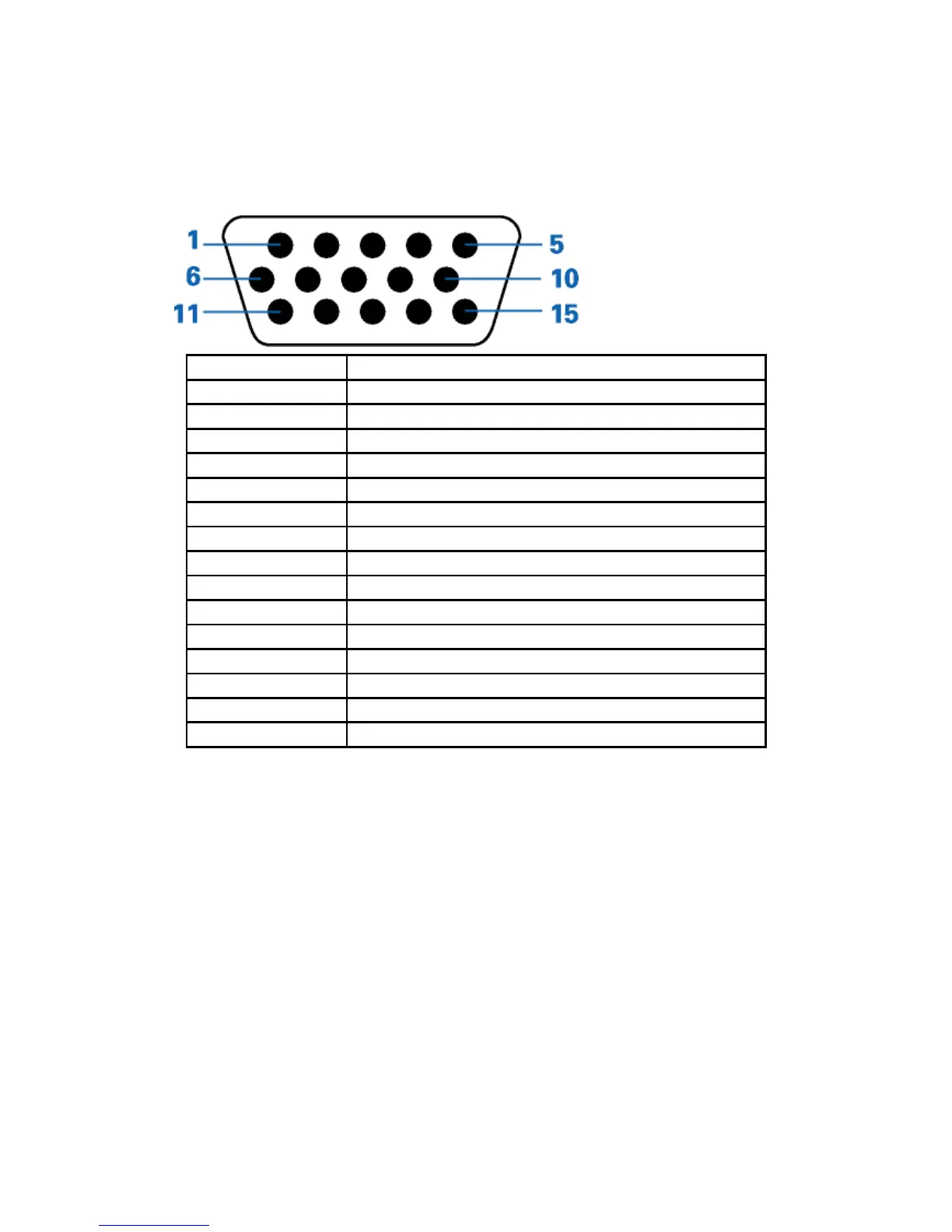

Pin Assignments
Pin Number 15-Pin Side of the Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 N.C.
5 Detect Cable
6 GND-R
7 GND-G
8 GND-B
9 +5V
10 Ground
11 N.C.
12 DDC-Serial data
13 H-sync
14 V-sync
15 DDC-Serial clock
Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It
allows the monitor to inform the host system of its identity and, depending on the level of DDC used,
communicate additional information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID
information over the DDC2B channel.
52

AOC e2060Sn Specifications

General

3D	No
HD type	-
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Display diagonal	20 \
Display resolution	1600 x 900 pixels
Vertical scan range	50 - 75 Hz
Horizontal scan range	30 - 80 kHz
Viewable size, vertical	249.1 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	20000000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	442.8 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1600 x 900
On/off switch	Yes
Ethernet LAN (RJ-45) ports	0
Number of products included	1 pc(s)
LED indicators	Power
Cable lock slot type	Kensington
Number of OSD languages	15
Panel mounting interface	100 x 100 mm
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	25 W
Power consumption (standby)	0.5 W
Safety	RoHS
Certification	cTUVus, FCC, CE, TUV/S, Windows 7
Product color	Black
Cables included	AC
Bundled software	Screen+
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	10 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 80 %
Package depth	115 mm
Package width	534 mm
Package height	420 mm
Package weight	3930 g
Sustainability certificates	EPEAT Gold, ENERGY STAR

Weight and Dimensions

Depth (without stand)	185 mm
Width (without stand)	511 mm
Height (without stand)	373 mm
Weight (without stand)	2680 g
