AOC E2243Fw User Manual

6
3. Operating Instructions
3.1 General Instructions
Press the power button to turn the monitor on or off. The other control knobs are located at base of the monitor. By
changing these settings, the picture can be adjusted to your personal preferences.

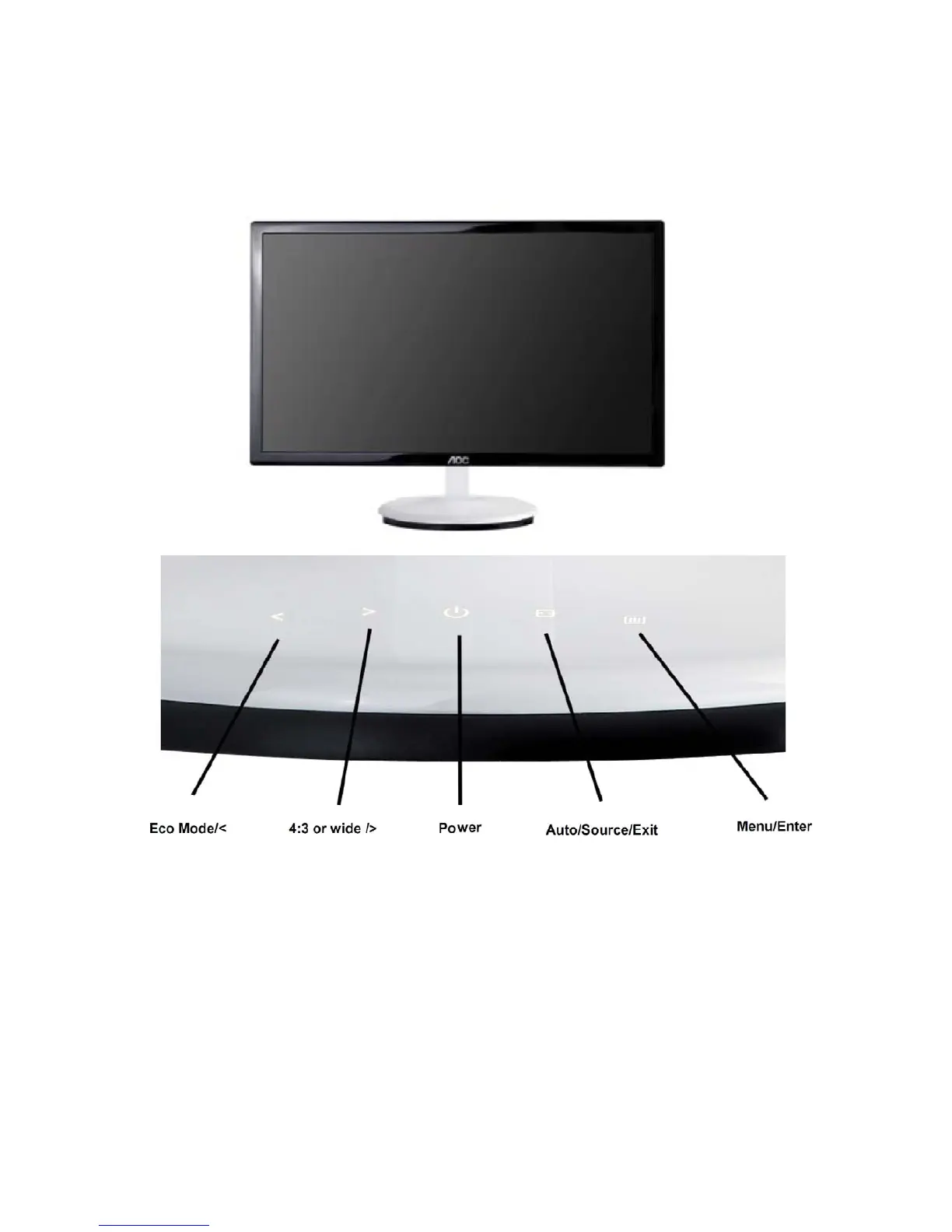

3.2 Control Buttons
Power
Press the Power button to turn 0n/off the monitor.
Eco Mode / <
Press the Eco key continuously to select the Eco mode of brightness when there is no OSD ( Eco mode hot key may
not be available in all models).
4:3 or wide image ratio / >
When there is no OSD, press > hotkey continuously to change 4:3 or wide image ratio. (If the product screen size is
4:3 or input signal resolution is wide format, the hot key is disable to adjust. )
Auto/Source/Exit
When the OSD is closed, press Auto/Source/Exit button continuously about 2 second to do auto configure (only for
the models with dual or more inputs).
When the OSD is closed, press Auto/Source/Exit button will be Source hot key function(Only for the models with
dual or more inputs).Press Auto/Source/Exit button continuously to select the input source showed in the message
bar, press Menu/Enter button to change to the source selected.

AOC E2243Fw Specifications

General

Screen Size	21.5 inches
Resolution	1920 x 1080
Panel Type	TN
Brightness	250 cd/m²
Contrast Ratio	1000:1
Response Time	5 ms
Refresh Rate	60 Hz
Connectivity	VGA, DVI-D
Aspect Ratio	16:9
Viewing Angle	170° (H) / 160° (V)
Weight	3.5 kg
