20
4.3 Panel Specification
4.3.1 General Features
This specification applies to the 21.5 inch-wide Color a-Si TFT-LCD Module M215HW01.The display supports the Full
HD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). All input signals are 2-channel
LVDS interface and this module doesn’t contain an driver board for backlight.

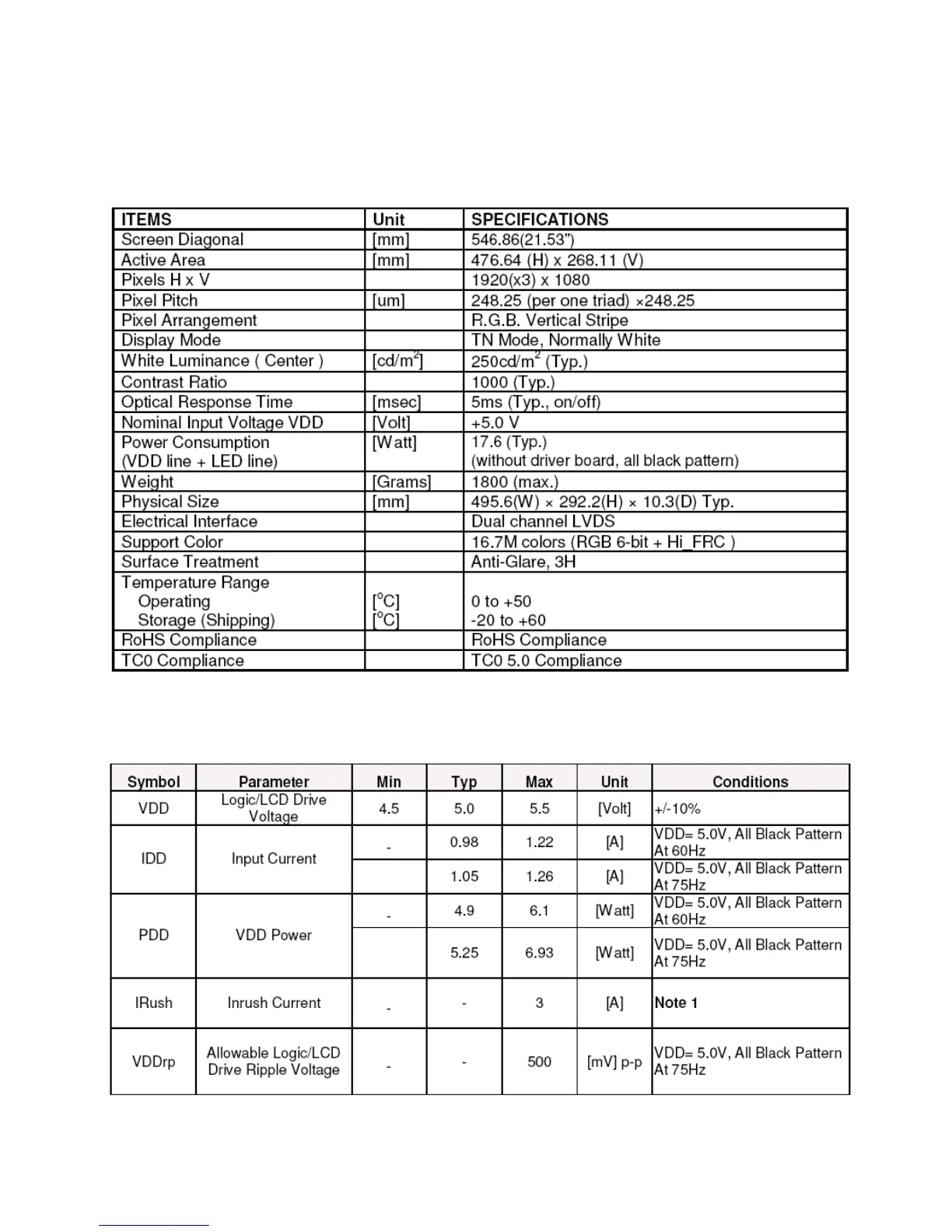

4.3.2 General Specifications
4.3.3 Electrical Characteristics
Electrical characteristics
Note 1: Measurement conditions:
The duration of rising time of power input is 470us.
