4.3 Panel Specification
4.3.1 General Features
M215HGE-L23 is a 21.5” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 2ch-LVDS
interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The converter
module for Backlight is not built in.

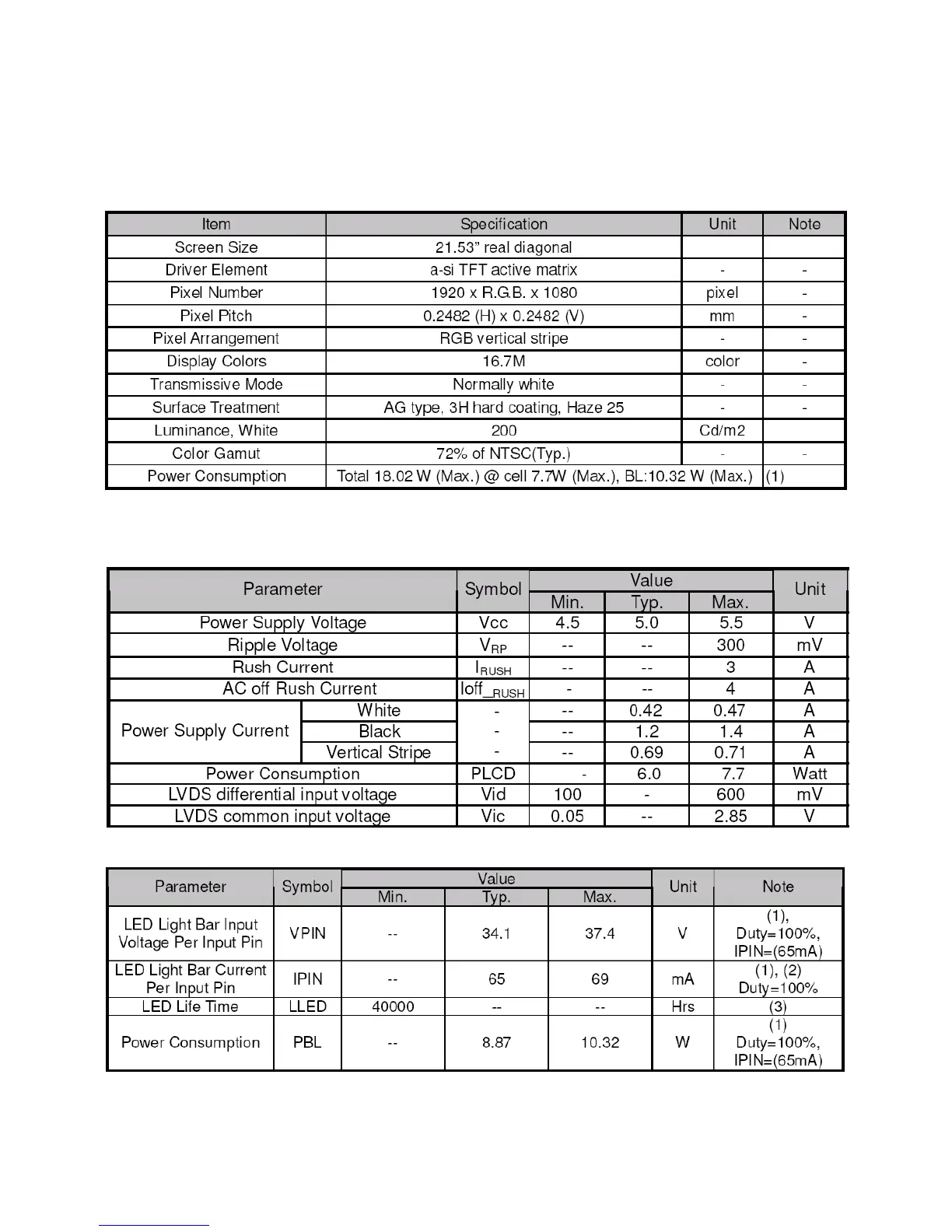

4.3.2 General Specifitions
4.3.3 Electrical Characteristics
Electrical characteristics
Vcc = 5.0 V, Ta = 25 ± 2 ºC, Fr = 60Hz
Backlight Unit
Note (1) LED light bar input voltage and current are measured by utilizing a true RMS multimeter as shown
below:
Note (2) PBL = IPIN × VPIN × ( 4 ) input pins ,
Note (3) The lifetime of LED is defined as the time when LED packages continue to operate under the
conditions at Ta = 25 ±2℃ and I= (65)mA (per chip) until the brightness becomes ≤ 50% of its
