Connecting the Monitor

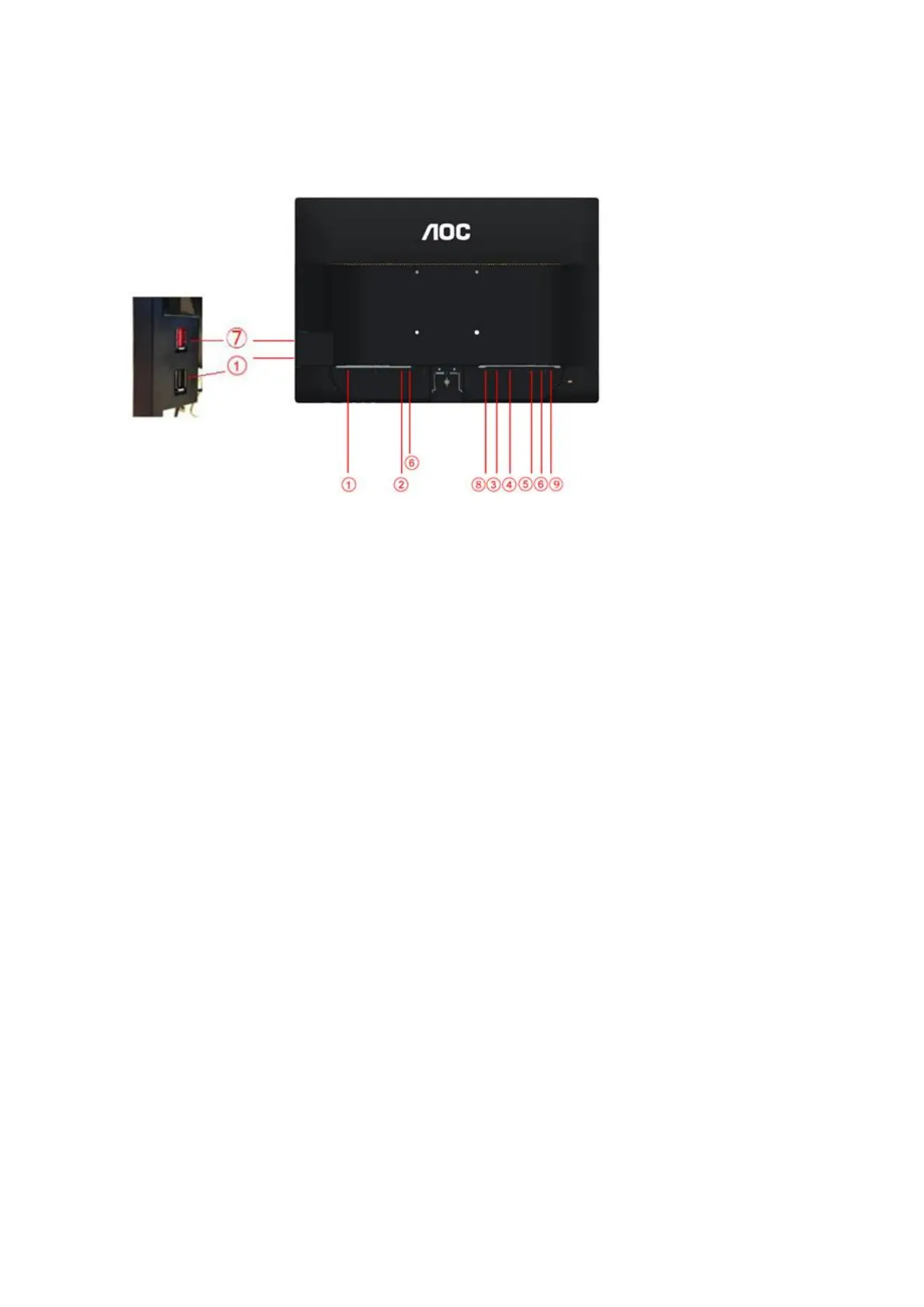

Cable Connections In Back of Monitor and Computer:

1. USB (Optional)

2. Power

3 HDMI (Optional)

4 .DVI (Optional)

5. Analog (DB-15 VGA cable)

6. Line in (Optional)

7. USB fast charging port (Optional)

8. Display port (Optional)

9. Earphone out(Optional)

To protect equipment, always turn off the PC and LCD monitor before connecting.

1 Connect the power cable to the AC port on the back of the monitor.

2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the

computer's D-Sub port.

3. (Optional –Requires a video card with DVI port)Connect one end of the DVI cable to the back of the monitor

and connect the other end to the computer‟s DVI port.

4. (Optional – Requires a video card with HDMI port) - Connect one end of the HDMI cable to the back of the

monitor and connect the other end to the computer’s HDMI port.

5. (Optional – Requires a video card with DP port) - Connect one end of the DP cable to the back of the monitor and

connect the other end to the computer’s DP port.

6. (Optional)Connect the audio cable to audio in port on the back of the monitor

7 .Turn on your monitor and computer.

8. USB fast charging port (Optional) .

If your monitor displays an image, installation is complete. If it does not display an image, please refer

Troubleshooting.
