AOC e2260Sd User Manual

36

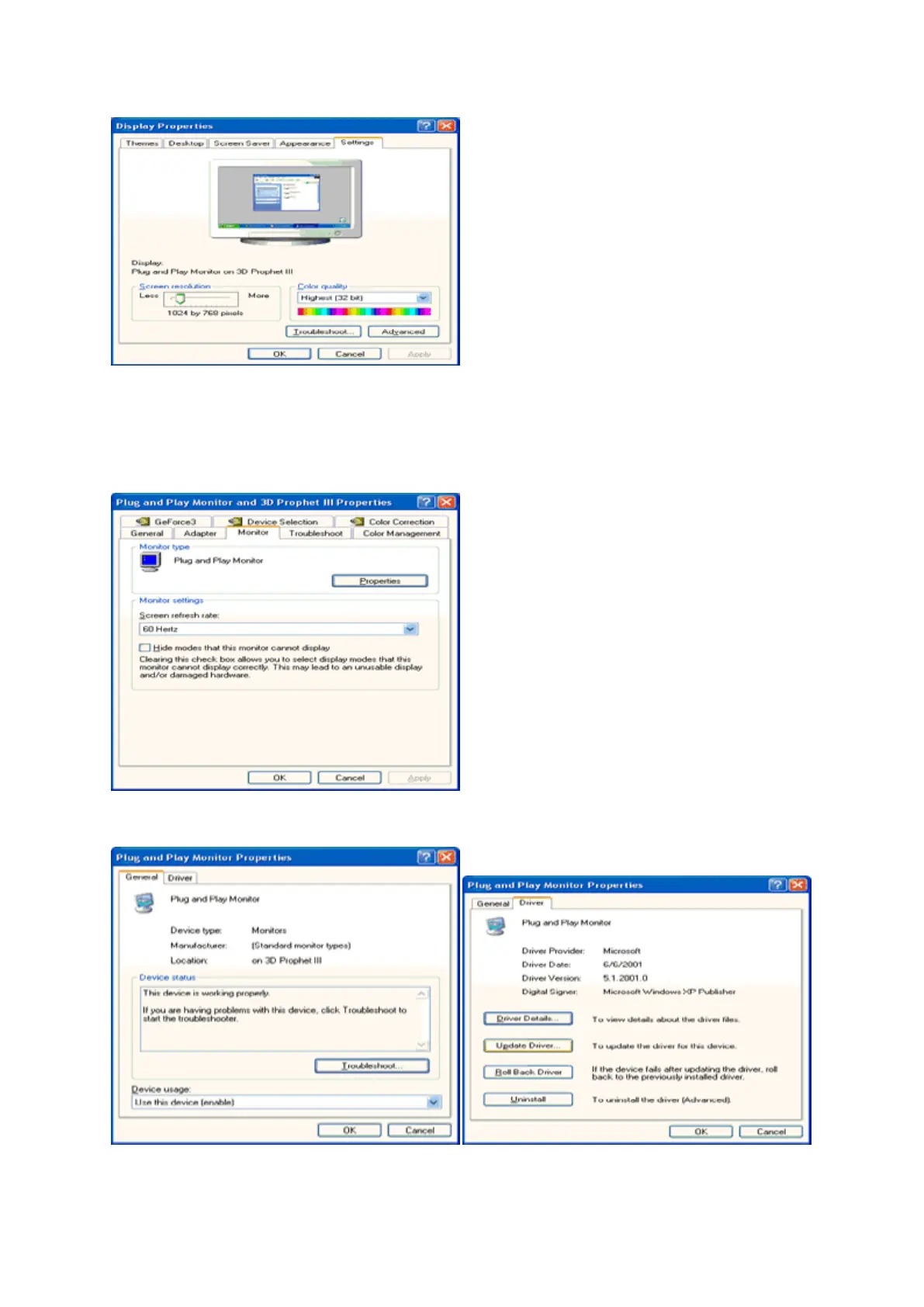

5. Select the 'Settings' tab then click on the 'Advanced' button.
6. Select 'Monitor' tab
- If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation.
- If the 'Properties' button is active, click on 'Properties' button.
Please follow the steps below.
7. Click on the 'Driver' tab and then click on 'Update Driver...' button.

AOC e2260Sd Specifications

General

Screen Size	21.5 inches
Resolution	1920 x 1080
Panel Type	TN
Brightness	250 cd/m²
Contrast Ratio	1000:1
Contrast Ratio (Dynamic)	20, 000, 000:1
Response Time	5 ms
Refresh Rate	60 Hz
Connectivity	VGA, DVI
Dimensions	504.8 x 382.1 x 179.5 mm
Weight	3.2 kg
Aspect Ratio	16:9
Viewing Angle	170° (H) / 160° (V)
Input Ports	VGA, DVI
