AOC e2260Swda

29

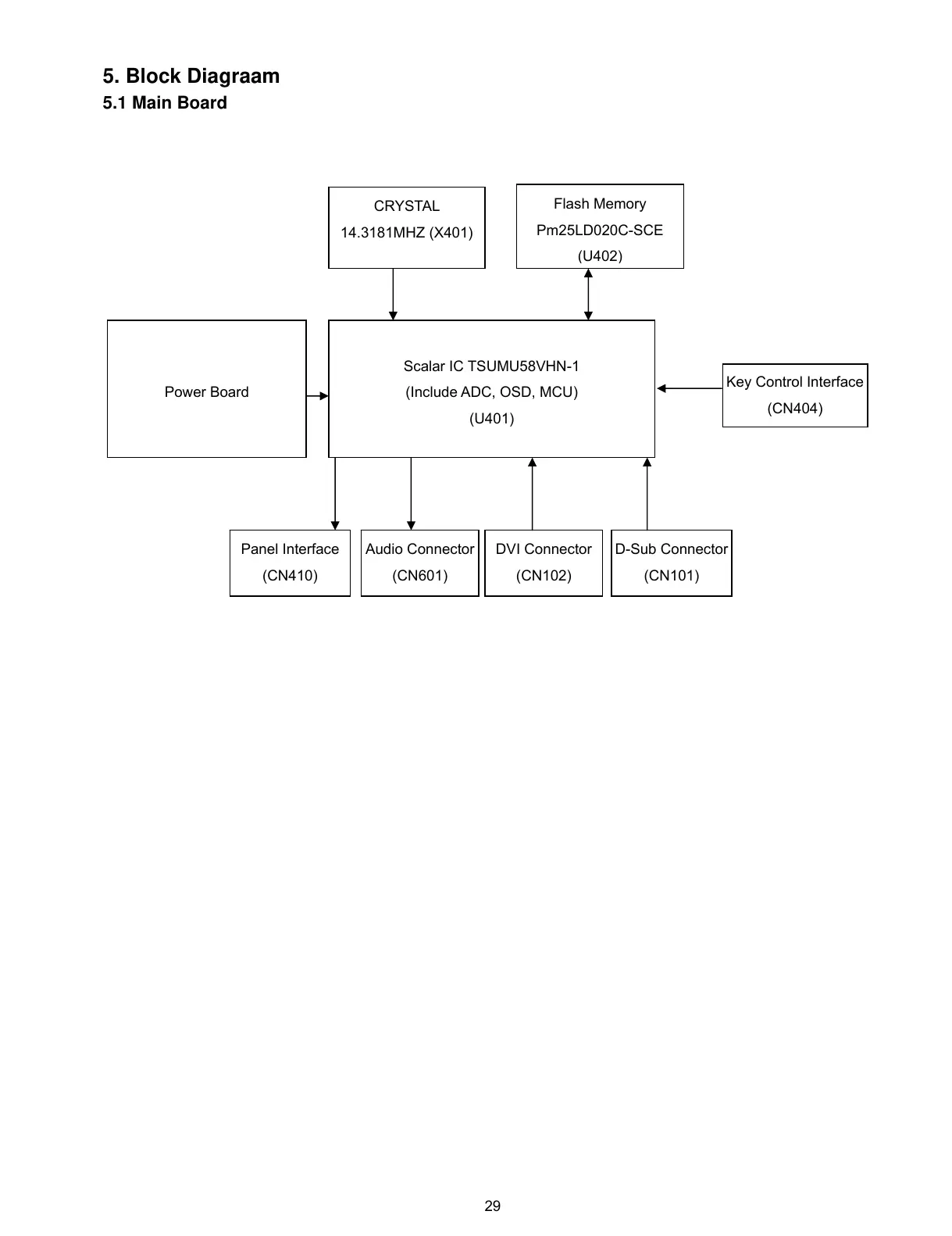

5. Block Diagraam
5.1 Main Board
Power Board
CRYSTAL
14.3181MHZ (X401)
Flash Memory
Pm25LD020C-SCE
(
U402
)
Scalar IC TSUMU58VHN-1
(Include ADC, OSD, MCU)
(U401)
Panel Interface
(CN410)
Key Control Interface
(CN404)
D-Sub Connector
(CN101)
Audio Connector
(CN601)
DVI Connector
(CN102)
