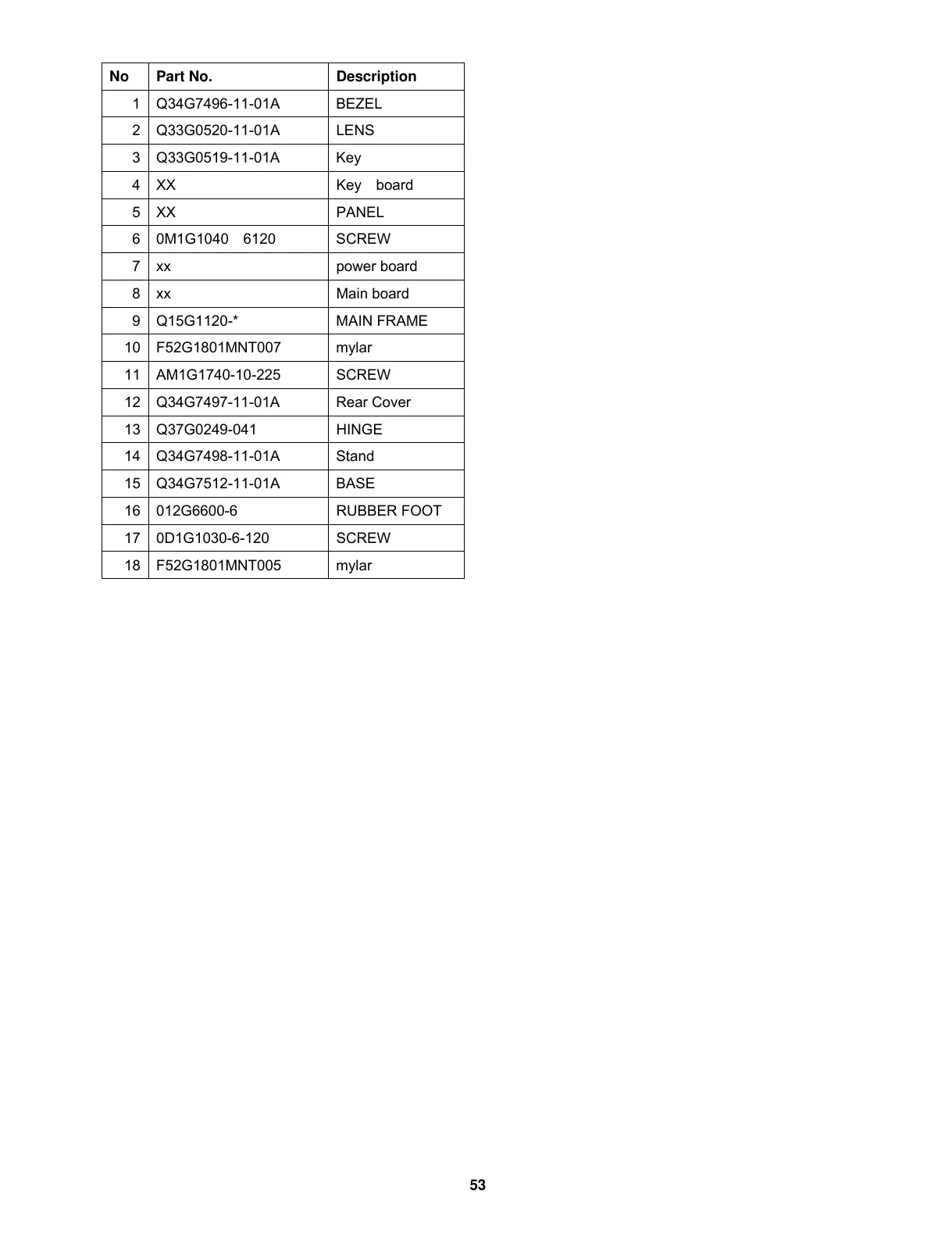

53
No
Part No. Description
1 Q34G7496-11-01A BEZEL
2 Q33G0520-11-01A LENS
3 Q33G0519-11-01A Key
4 XX Key board
5 XX PANEL
6 0M1G1040 6120 SCREW
7 xx power board
8 xx Main board
9 Q15G1120-* MAIN FRAME
10 F52G1801MNT007 mylar
11 AM1G1740-10-225 SCREW
12 Q34G7497-11-01A Rear Cover
13 Q37G0249-041 HINGE
14 Q34G7498-11-01A Stand
15 Q34G7512-11-01A BASE
16 012G6600-6 RUBBER FOOT
17 0D1G1030-6-120 SCREW
18 F52G1801MNT005 mylar
