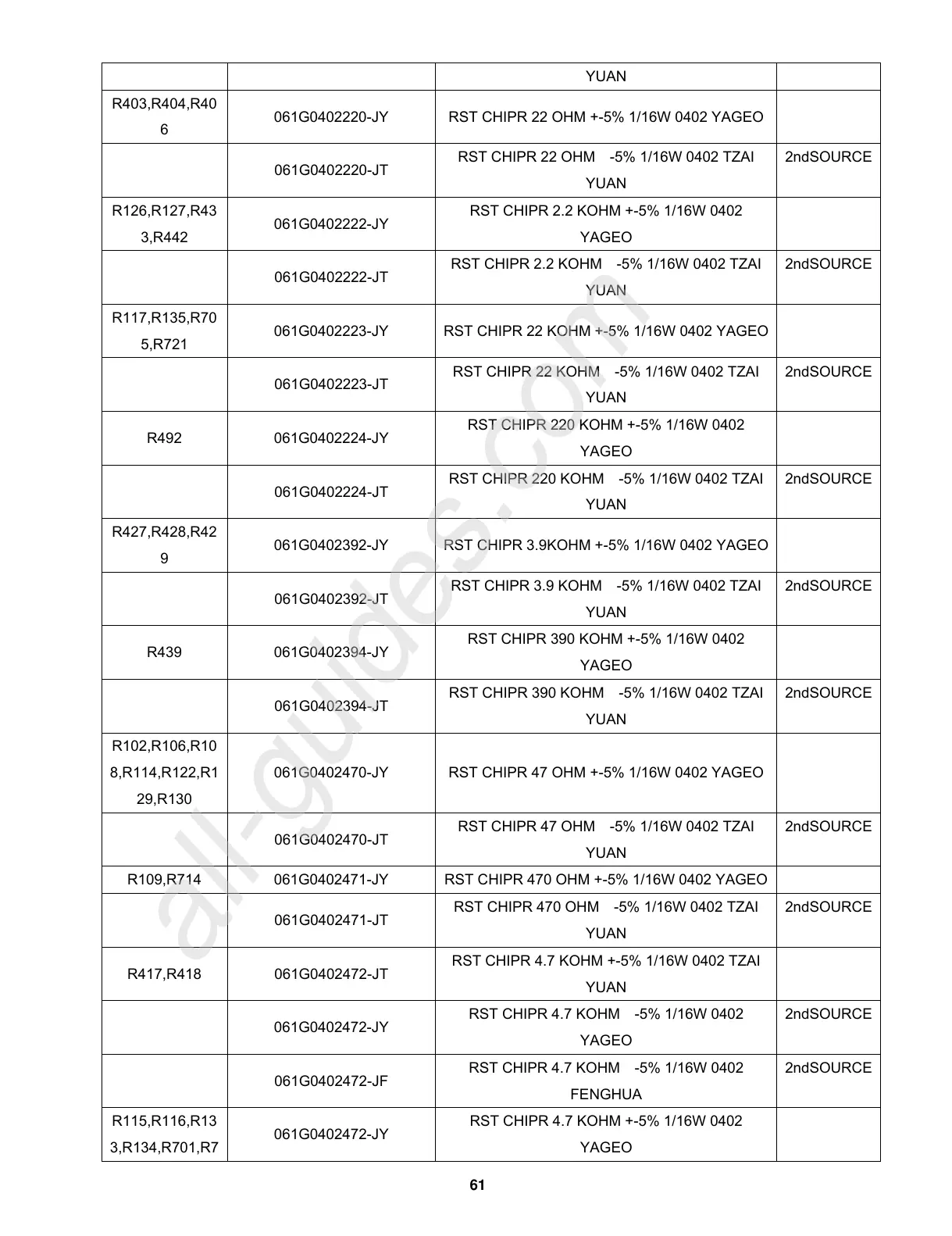

AOC e2260Swda Service Manual

61
YUAN
R403,R404,R40
6
061G0402220-JY RST CHIPR 22 OHM +-5% 1/16W 0402 YAGEO
061G0402220-JT
RST CHIPR 22 OHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R126,R127,R43
3,R442
061G0402222-JY
RST CHIPR 2.2 KOHM +-5% 1/16W 0402
YAGEO
061G0402222-JT
RST CHIPR 2.2 KOHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R117,R135,R70
5,R721
061G0402223-JY RST CHIPR 22 KOHM +-5% 1/16W 0402 YAGEO
061G0402223-JT
RST CHIPR 22 KOHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R492 061G0402224-JY
RST CHIPR 220 KOHM +-5% 1/16W 0402
YAGEO
061G0402224-JT
RST CHIPR 220 KOHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R427,R428,R42
9
061G0402392-JY RST CHIPR 3.9KOHM +-5% 1/16W 0402 YAGEO
061G0402392-JT
RST CHIPR 3.9 KOHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R439 061G0402394-JY
RST CHIPR 390 KOHM +-5% 1/16W 0402
YAGEO
061G0402394-JT
RST CHIPR 390 KOHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R102,R106,R10
8,R114,R122,R1
29,R130
061G0402470-JY RST CHIPR 47 OHM +-5% 1/16W 0402 YAGEO
061G0402470-JT
RST CHIPR 47 OHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R109,R714 061G0402471-JY RST CHIPR 470 OHM +-5% 1/16W 0402 YAGEO
061G0402471-JT
RST CHIPR 470 OHM -5% 1/16W 0402 TZAI
YUAN
2ndSOURCE
R417,R418 061G0402472-JT
RST CHIPR 4.7 KOHM +-5% 1/16W 0402 TZAI
YUAN
061G0402472-JY
RST CHIPR 4.7 KOHM -5% 1/16W 0402
YAGEO
2ndSOURCE
061G0402472-JF
RST CHIPR 4.7 KOHM -5% 1/16W 0402
FENGHUA
2ndSOURCE
R115,R116,R13
3,R134,R701,R7
061G0402472-JY
RST CHIPR 4.7 KOHM +-5% 1/16W 0402
YAGEO
