Connecting the Monitor

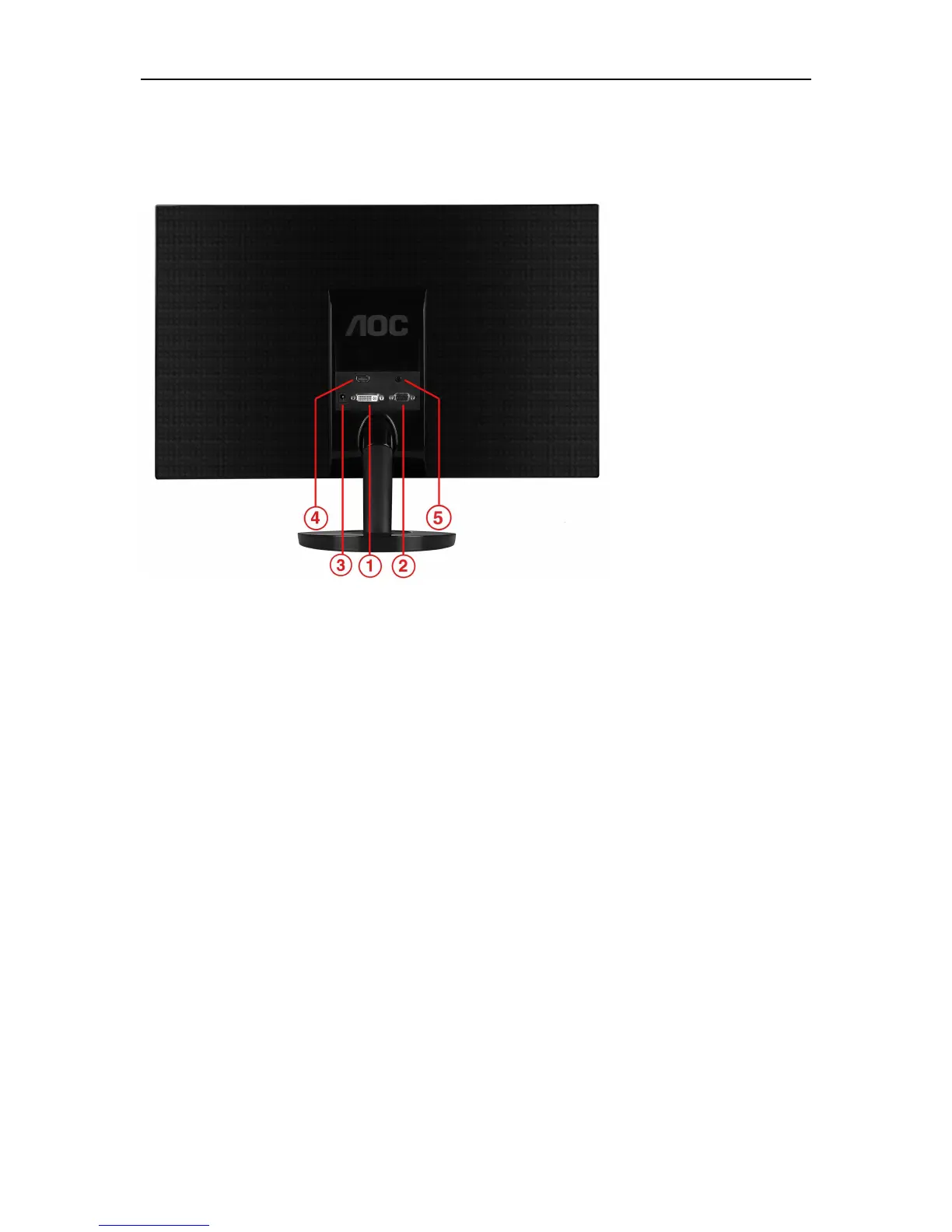

Cable Connections In Back of Monitor and Computer:
DVI
D-SUB
Power
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port.
3 (Optional-Requires a video card with DVI port) -Connect one end of the DVI cable to the back of the monitor
and connect the other end to the computer’s DVI port.
6
Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
1
2
3
4
5
HDMI
Earphone jack
Connect one end of the HDMI cable to the back of the monitor and connect the other end to the computer’s
HDMI port.
4
Earphonejack: ThisportisonlyavailablewhenanHDMIcableisconnected.
5
