4.3 Panel Specification

4.3.1 General Features

This specification applies to the 24 inch-FHD Color a-Si TFT-LCD Module M240HW01. The display supports the

FHD - 1920(H) x 1080(V) screen format and 16.7M colors (RGB 6-bits + Hi-FRC data). The light source of this

TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and this module doesn’t contain a driver

for backlight.

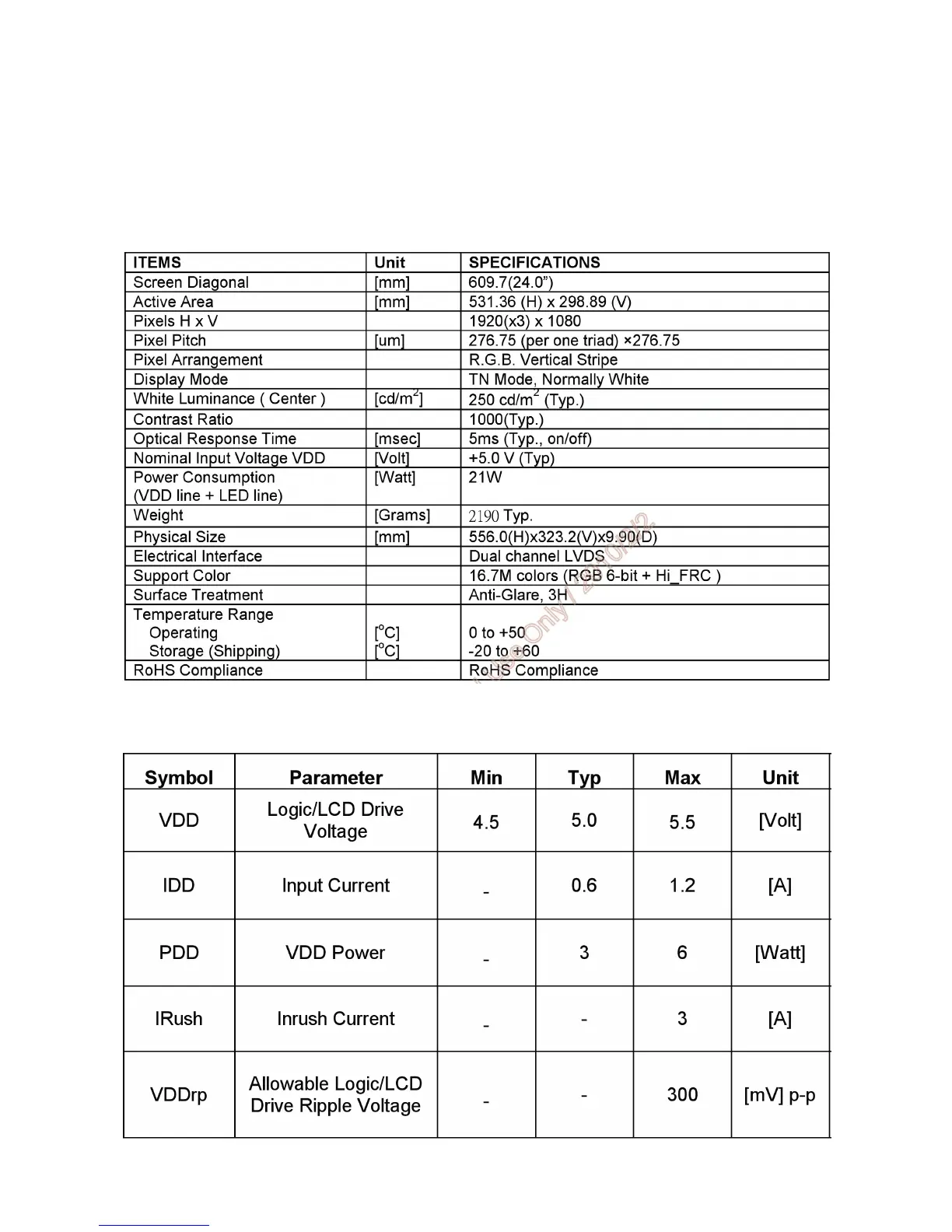

4.3.2 Display Characteristics

4.3.3 Electrical Characteristics
