20
4.3 Panel Specification
4.3.1 General Features
M236H3-LA3 is a 23.6” TFT Liquid Crystal Display module with WLED Backlight unit and 30 pins 2ch-LVDS
interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors. The
converter module for Backlight is not built in.

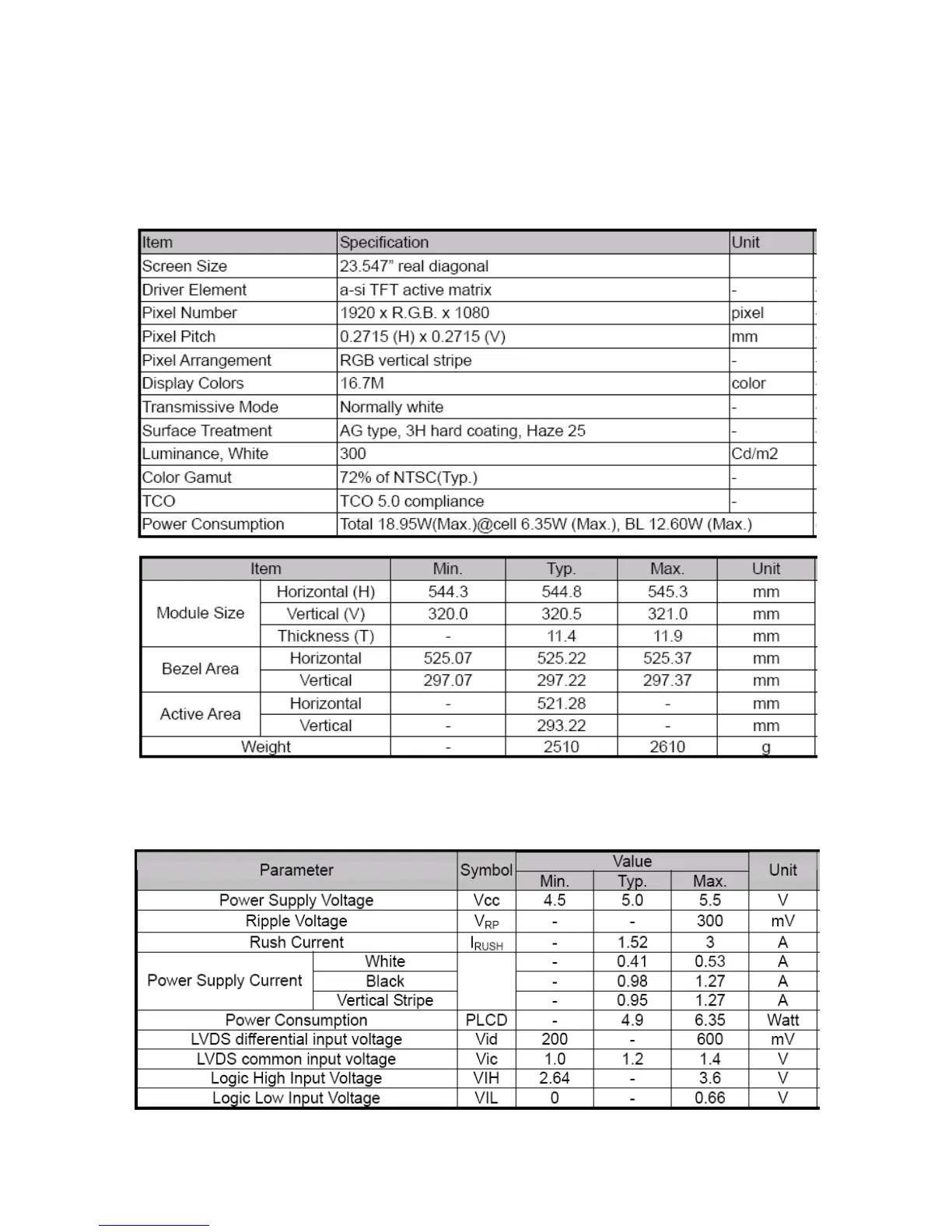

4.3.2 General Specifications
4.3.3 Electrical Characteristics
Electrical characteristics
