AOC E2460PDA User Manual

12
Connecting the Monitor

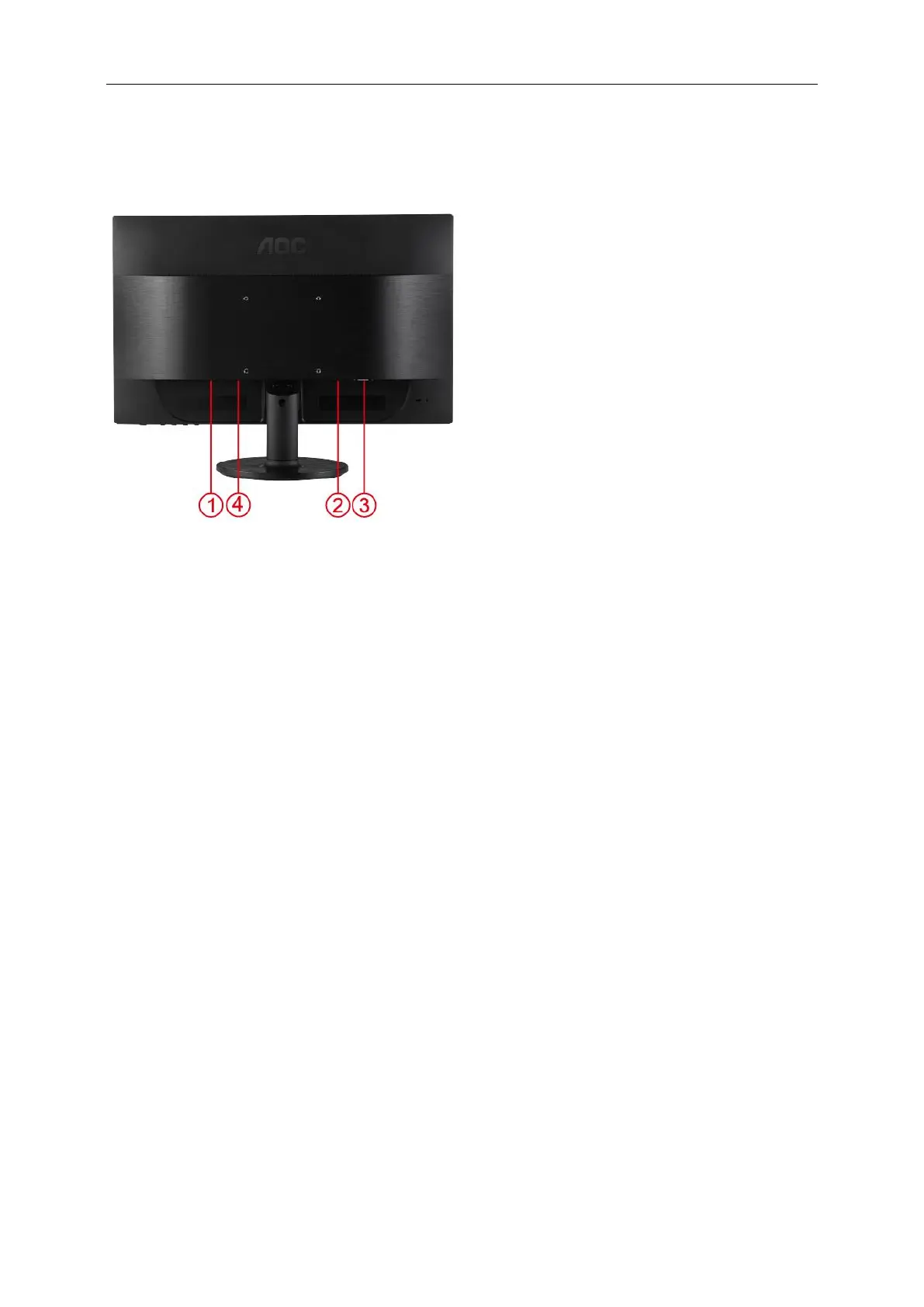

Cable Connections In Back of Monitor and Computer:
1. Power
2. DVI cable
3. D-Sub cable
4. Audio Cable
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the AC port on the back of the monitor.
2 Connect one end of the 15-pin DVI /D-Sub cable to the back of the monitor and connect the other end to the
computer's DVI /D-Sub port.
3 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.

AOC E2460PDA Specifications

General

Screen Size	24 inches
Panel Type	TN
Refresh Rate	60 Hz
Response Time	5 ms
Brightness	250 cd/m²
Contrast Ratio	1000:1
Dynamic Contrast Ratio	20, 000, 000:1
Viewing Angle	170° (H) / 160° (V)
VESA Mount	100 x 100 mm
Resolution	1920 x 1080
Connectivity	VGA, DVI, HDMI
Built-in Speakers	Yes
