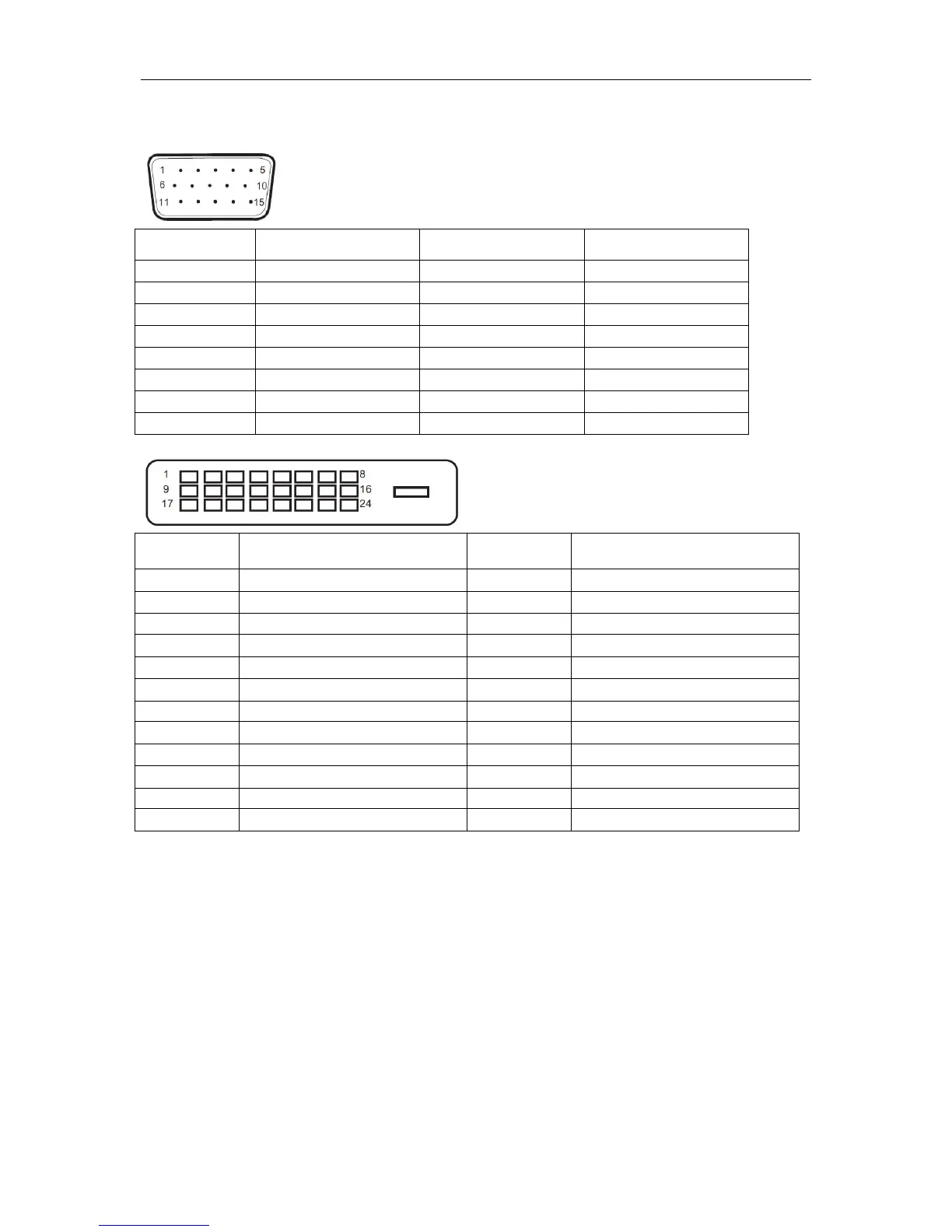

Pin Assignments
Pin Number
15
-
Pin Side of the
Signal Cable
Pin Number
15
-
Pin Side of the
Signal Cable
1 Video-Red 9 +5V
2 Video-Green 10 Ground
3 Video-Blue 11 N.C.
4 N.C. 12 DDC-Serial data
5 Detect Cable 13 H-sync
6 GND-R 14 V-sync
7 GND-G 15 DDC-Serial clock
8 GND-B
Pin Number
24-Pin Color Display Signal
Cable
Pin Number
24-Pin Color Display Signal
Cable
1
TMDS data 2－
13
TMDS data 3＋
2 TMDS data 2＋ 14 ＋5V Power
3 TMDS data 2/4 Shield 15 Ground (for+5V)
4 TMDS data 4－ 16 Hot Plug Detect
5
TMDS data 4＋
17
TMDS data 0－
6 DDC Clock 18 TMDS data 0＋
7 DDC Data 19 TMDS data 0/5 Shield
8 N.C. 20 TMDS data 5－
9
TMDS data 1－
21
TMDS data 5＋
10 TMDS data 1＋ 22 TMDS Clock Shield
11 TMDS data 1/3 Shield 23 TMDS Clock +
12 TMDS data 3－ 24 TMDS Clock －
