AOC E936SWA Service Manual

18.5" LCD Color Monitor AOC e936Swa
25

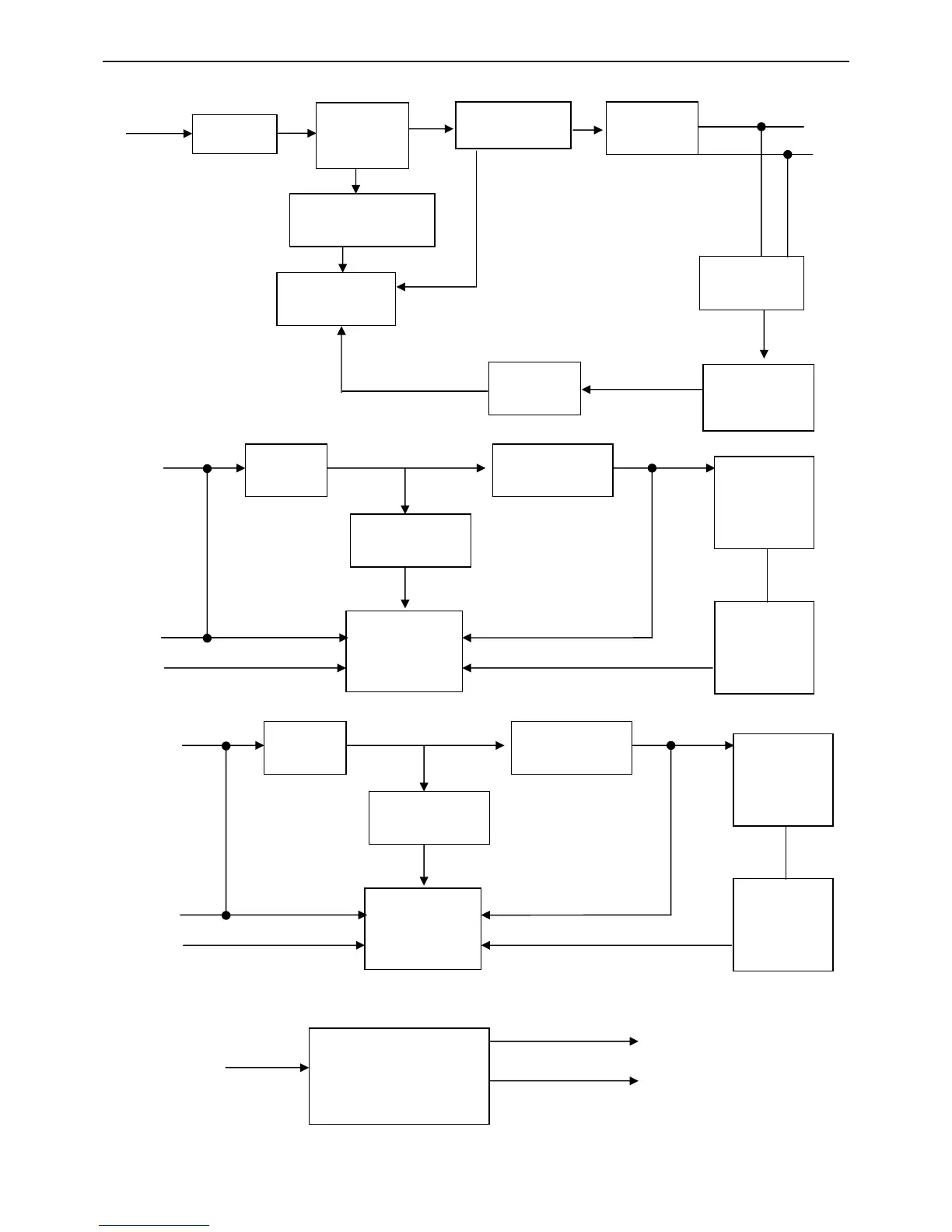

6.2.2 Inverter / Power Board
715G3823P01000004S
715G3649P01000004S
Audio
EMI filter
Start Resistor
(R920,R921,R922)
PWM Control
(IC901)
Transformer
(T901)
AC input
14.5V
Bridge
Rectifier
and Filter
Feedback
Circuit
Rectifier
diodes
Photo coupler
(IC902)
5V
Regulator
(IC903)
Audio Power Amplifier
APA2071JI
(IC601)
CN602
+5V
CN601(Phone Jack)
ZD801
PWM Control
OZ9954SN
(U801)
12V
MOSFET
(Q802)
DIM
ENA
L801
LED
（CN803）
LED
(CN802)
ZD801
PWM Control
TA9690GN
(IC801,IC802)
12V
MOSFET
(Q801)
DIM
ENA
L801
LED
（CN803）
LED
(CN802)
