AOC e950Swn User Manual

19

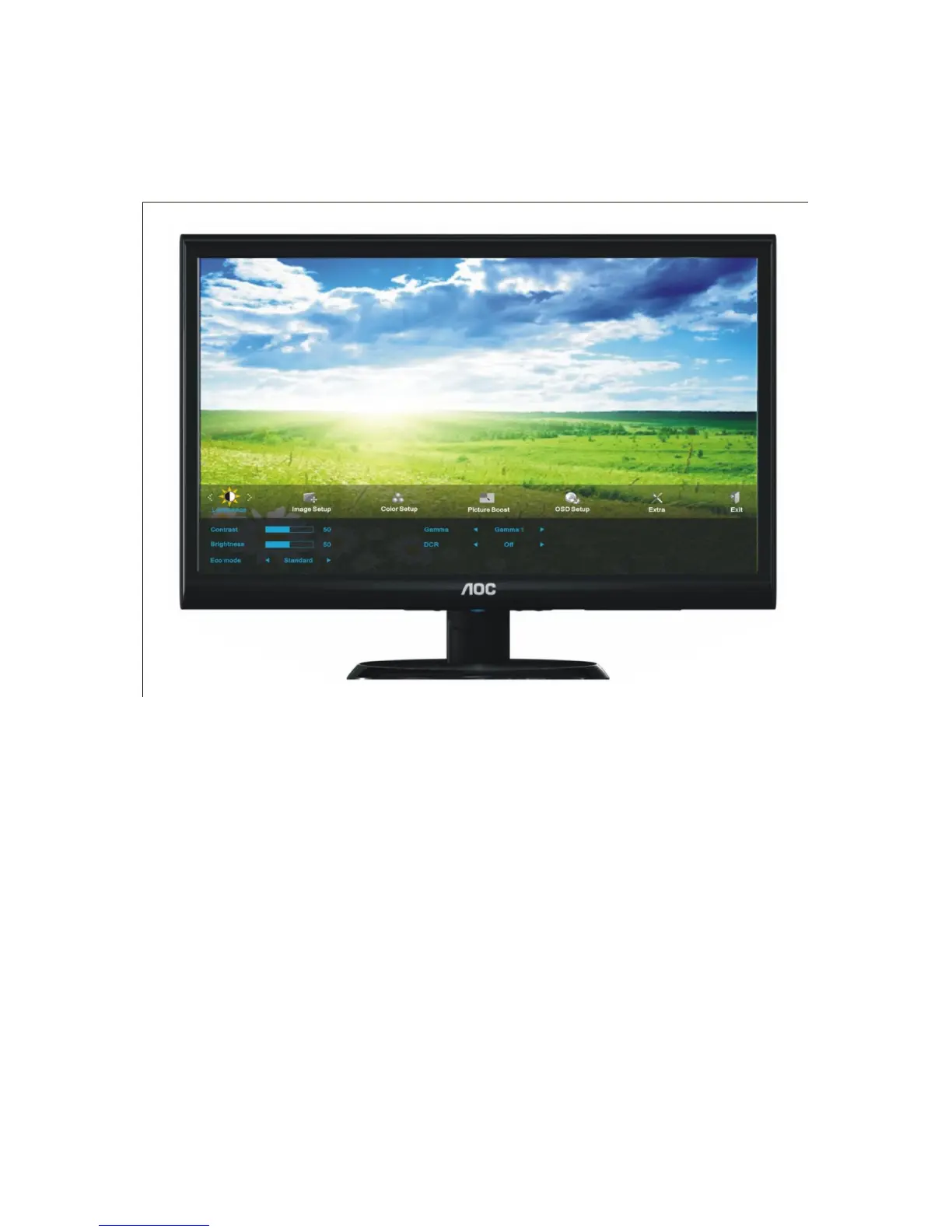

OSD Setting
Basic and simple instruction on the control keys.
1) Press the MENU-button to activate the OSD window.
2) Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button
to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted,
press MENU-button to activate it.
3) Press - or + to change the settings of the selected function. Press AUTO to exit. If you want to adjust any other
function, repeat steps 2-3.
4) OSD Lock Function: To lock the OSD, press and hold the MENU button while the monitor is off and then press
power button to turn the monitor on. To un-lock the OSD - press and hold the MENU button while the monitor is
off and then press power button to turn the monitor on.
Notes:
1) If the product has only one signal input, the item of "Input Select" is disable to adjust.
2) If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disable to
adjust.
3) One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly.

AOC e950Swn Specifications

General

3D	No
HD type	-
Panel type	TN+Film
Pixel pitch	0.3 x 0.3 mm
Aspect ratio	16:9
Backlight type	W-LED
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 60 kHz
Viewable size diagonal	230.4 mm
Viewable size, vertical	409.8 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1366 x 768
On/off switch	Yes
Placement supported	Horizontal
DVI-D ports quantity	0
Certification	CB, CE, FCC, GOST, ISO 9241-307, RoHS, TÜV-GS, Ukraine Safety, Win7, cCSAus
Product color	Black
LED indicators	Power
Tilt angle range	-4 - 17 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (standby)	0.3 W
Power consumption (typical)	12 W
Cables included	AC, VGA
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	175 mm
Width (with stand)	444.35 mm
Height (with stand)	343 mm
Weight (with stand)	3550 g
Width (without stand)	- mm
Weight (without stand)	2630 g
