AOC e950Swn User Manual

39

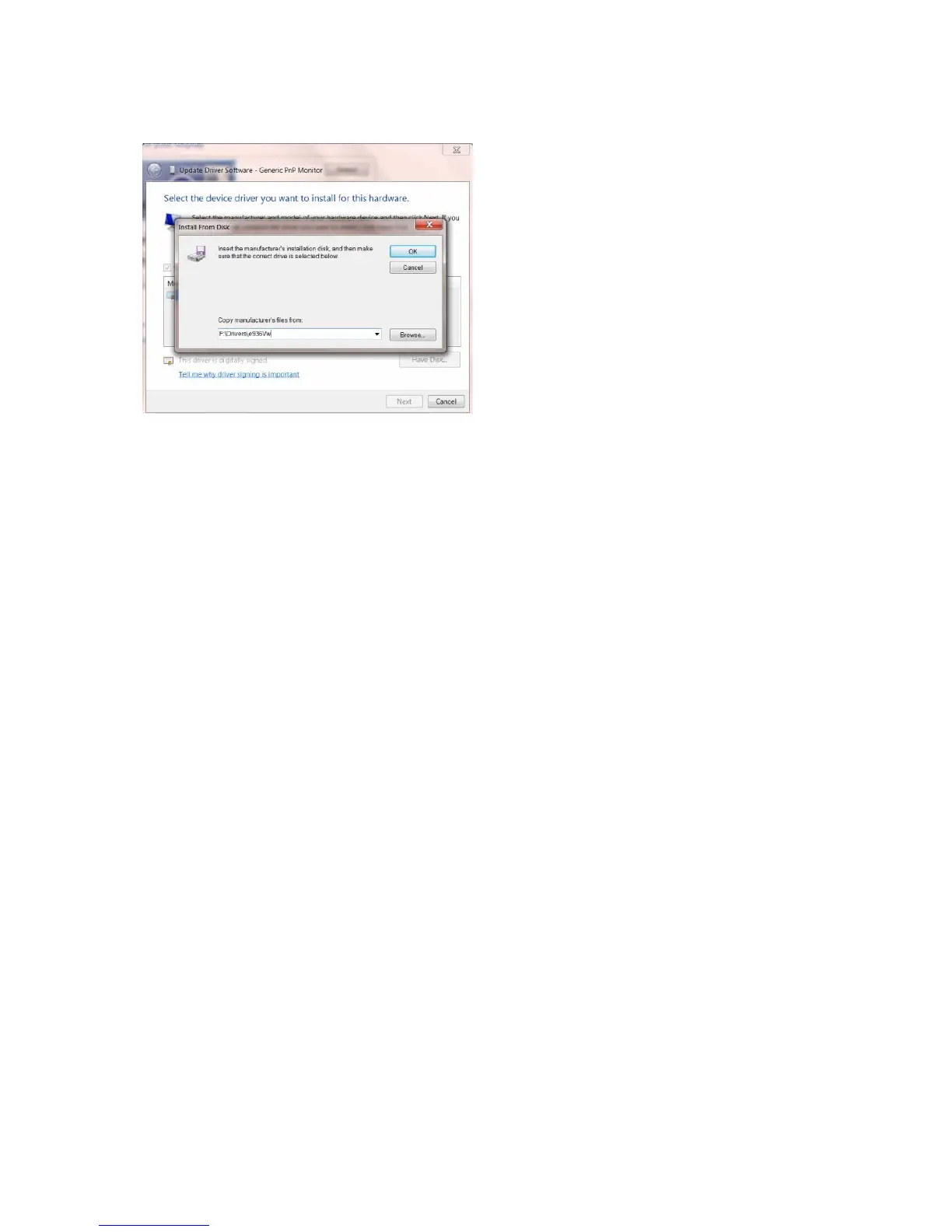

10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
12. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
13. Close all open windows and remove the CD.
14. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.

AOC e950Swn Specifications

General

3D	No
HD type	-
Panel type	TN+Film
Pixel pitch	0.3 x 0.3 mm
Aspect ratio	16:9
Backlight type	W-LED
Display diagonal	18.5 \
Display resolution	1366 x 768 pixels
Display technology	LED
Vertical scan range	50 - 76 Hz
Horizontal scan range	30 - 60 kHz
Viewable size diagonal	230.4 mm
Viewable size, vertical	409.8 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	600:1
Display number of colors	16.78 million colors
Display brightness (typical)	200 cd/m²
Supported graphics resolutions	1366 x 768
On/off switch	Yes
Placement supported	Horizontal
DVI-D ports quantity	0
Certification	CB, CE, FCC, GOST, ISO 9241-307, RoHS, TÜV-GS, Ukraine Safety, Win7, cCSAus
Product color	Black
LED indicators	Power
Tilt angle range	-4 - 17 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.2 W
Power consumption (standby)	0.3 W
Power consumption (typical)	12 W
Cables included	AC, VGA
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	175 mm
Width (with stand)	444.35 mm
Height (with stand)	343 mm
Weight (with stand)	3550 g
Width (without stand)	- mm
Weight (without stand)	2630 g
