24
4. Input/Output Specification

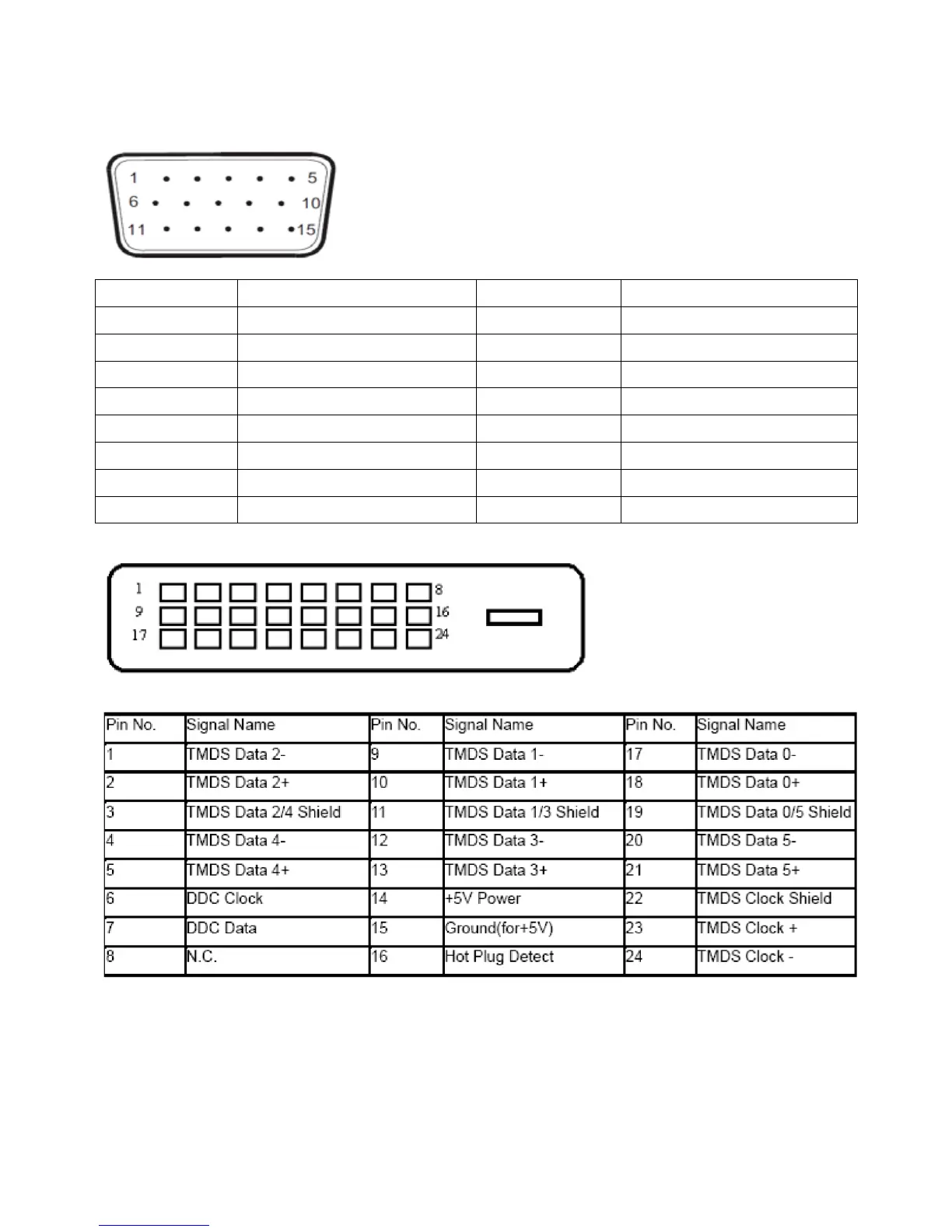

4.1 D-SUB connectors and DVI connectors
Pin Assignments
Pin Number
15-Pin Side of the Signal Cable
Pin Number 15-Pin Side of the Signal Cable
1
Video-Red
9 +5V
2
Video-Green
10
Ground
3
Video-Blue
11 N.C.
4 N.C. 12 DDC- Serial data
5
Detect Cable
13 H-
sync
6 GND-R 14 V- sync
7 GND-G 15 DDC- Serial clock
8 GND-B
To Next Page
