AOC E970SW User Manual

39

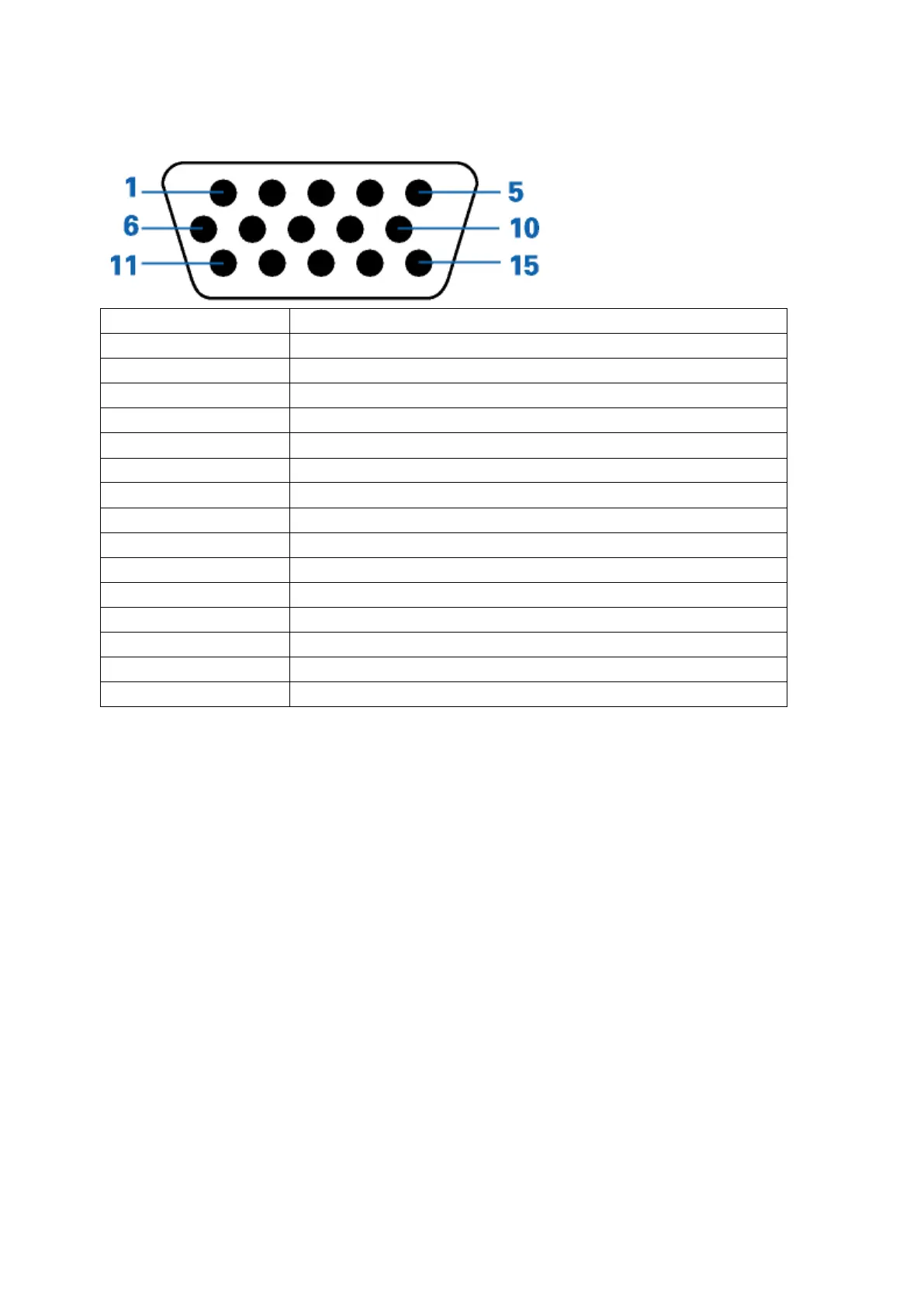

Pin Assignments
Pin Number
15-Pin Side of the Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
s
N.C.
5
Detect Cable
6
GND-R
7
GND-G
8
GND-B
9
+5V
10
Ground
11
N.C.
12
DDC-Serial data
13
H-sync
14
V-sync
15
DDC-Serial clock

AOC E970SW Specifications

General

Screen Size	18.5 inches
Resolution	1366 x 768
Panel Type	TN
Aspect Ratio	16:9
Brightness	200 cd/m²
Response Time	5 ms
Refresh Rate	60 Hz
Inputs	VGA
Weight	2.15 kg
Viewing Angle	90° (H) / 65° (V)
Power Consumption	15W
