AOC G2460FQ User Manual

58

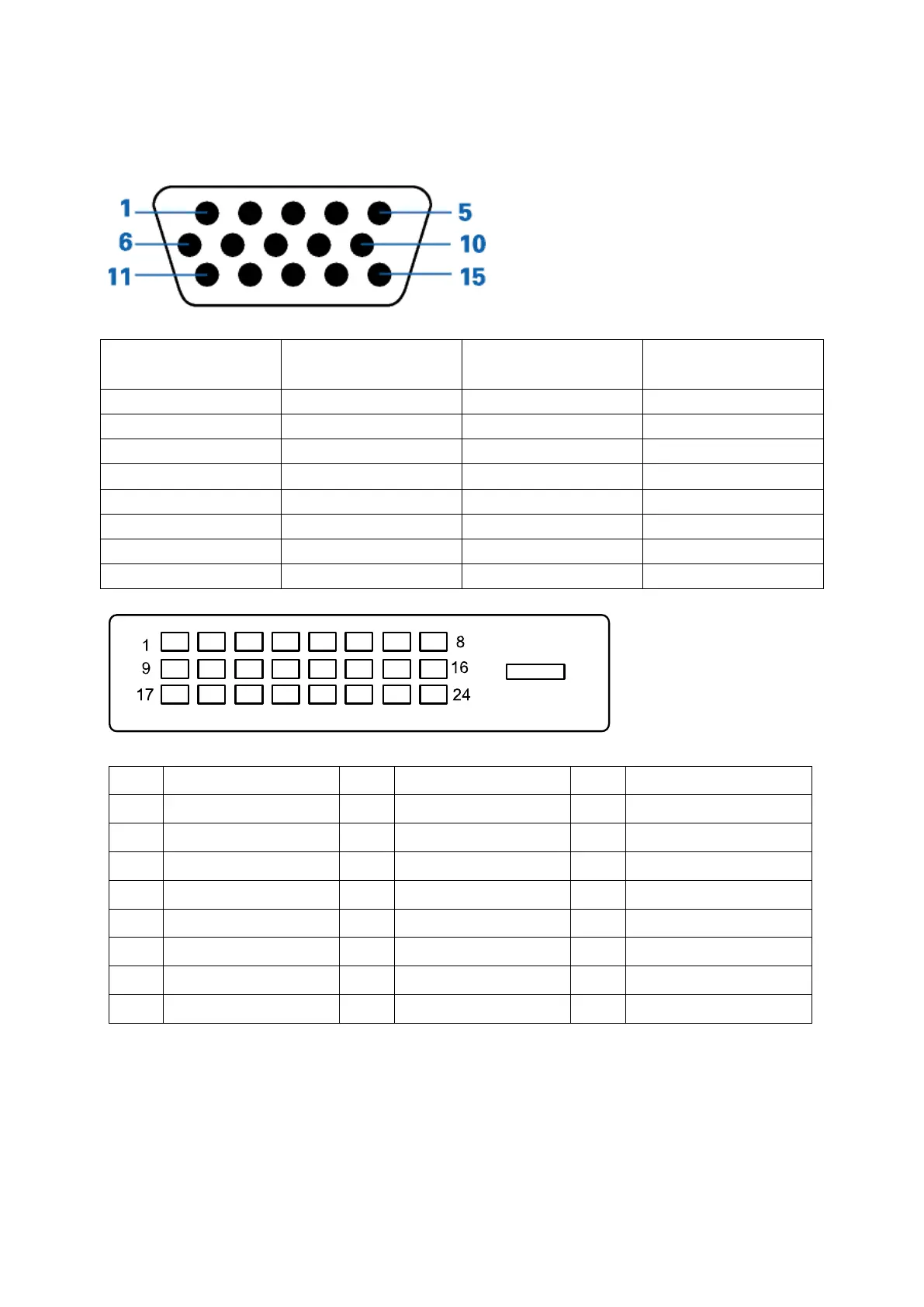

Pin Assignments
15-Pin Color Display Signal Cable
Pin Number
15-Pin Side of the
Signal Cable
Pin Number 15-Pin Side of the
Signal Cable
1
Video-Red
9
+5V
2
Video-Green
10
Ground
3
Video-Blue
11
N.C.
4
N.C.
12
DDC-Serial data
5
Detect Cable
13
H-sync
6
GND-R
14
V-sync
7
GND-G
15
DDC-Serial clock
8
GND-B
24-Pin Color Display Signal Cable
Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name
1. TMDS Data 2- 9. TMDS Data 1- 17. TMDS Data 0-
2. TMDS Data 2+ 10. TMDS Data 1+ 18. TMDS Data 0+
3. TMDS Data 2/4 Shield 11. TMDS Data 1/3Shield 19. TMDS Data 0/5Shield
4. TMDS Data 4- / N.C. 12. TMDS Data 3- / N.C. 20. TMDS Data 5- / N.C.
5. TMDS Data 4+ / N.C. 13. TMDS Data 3+ / N.C. 21. TMDS Data 5+ / N.C.
6. DDCClock 14. +5V Power 22. TMDS Clock Shield
7. DDCData 15. Ground（for +5V） 23. TMDS Clock +
8. N.C. 16. Hot Plug Detect 24. TMDS Clock -
