AOC G2460VQ6 User Manual

36

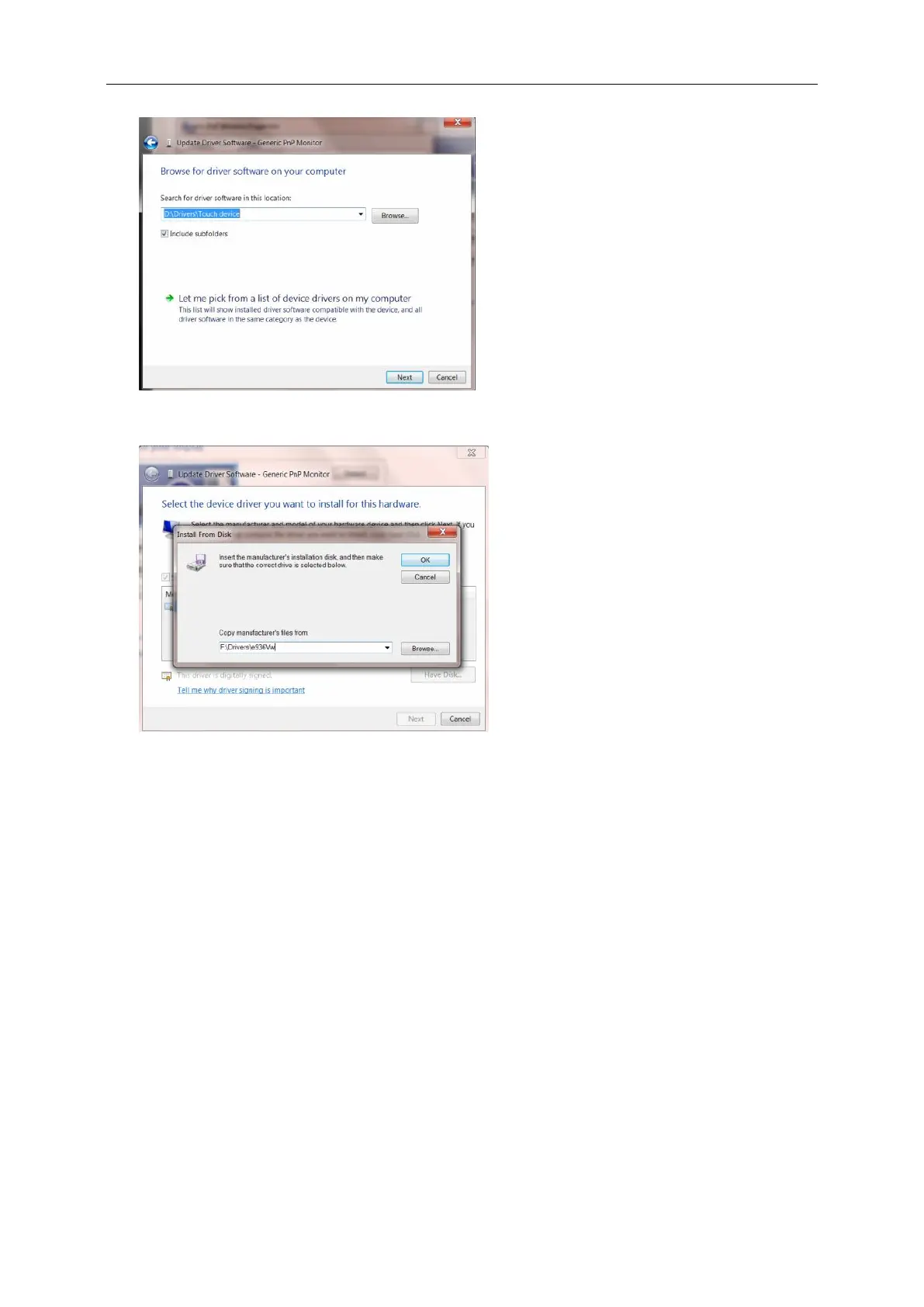

11. Select "Let me pick from a list of device drivers on my computer".
12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory:
X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive).
13. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button.
14. Select your monitor model and click the “Next” button. The files will be copied from the CD to your hard disk
drive.
15. Close all open windows and remove the CD.
16. Restart the system. The system will automatically select the maximum refresh rate and corresponding Color
Matching Profiles.

AOC G2460VQ6 Specifications

General

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	No
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	23 W
Panel type	TN
Pixel pitch	0.276 x 0.276 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	Matt
Pixel frequency	165 MHz
Display diagonal	24 \
Display technology	LCD
Vertical scan range	48 - 76 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 83 kHz
Supported video modes	1080p
Viewable size, vertical	298.89 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	80000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	531.36 mm
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.2
Headphone connectivity	3.5 mm
Tilt angle range	-5 - 20 °
Number of OSD languages	16
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
Built-in camera	-
RMS rated power	4 W
Number of speakers	2
Certification	ISO
Product color	Black
Front bezel color	Black/Red
Heavy metals free	Hg (mercury)
Market positioning	Gaming
Recyclable packaging material	100 %
Mean time between failures (MTBF)	50000 h
Package type	Box
Package depth	131 mm
Package width	621 mm
Package height	476 mm
Package weight	6100 g
VGA cable length	1.8 m
Cables included	AC, Audio (3.5mm), DisplayPort, HDMI, VGA
Sustainability certificates	RoHS, ENERGY STAR
AMD FreeSync type	FreeSync
AMD FreeSync refresh rate range	30 - 144 Hz
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth (with stand)	219.3 mm
Height (with stand)	411.6 mm
Weight (with stand)	4270 g
Depth (without stand)	78.2 mm
Width (without stand)	565.4 mm
Weight (without stand)	- g
