AOC I2369Vm Service Manual

25
4.3 Panel Specification
4.3.1 General Features
LM230WF3-S2F2 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED)
backlight system. The matrix employs a-Si Thin Film Transistor as the active element. It is a transmissive type
display operating in the normally white mode. It has a 23.0 inch diagonally measured active display area with Full
HD resolution (1080 vertical by 1920 horizontal pixel array) Each pixel is divided into Red, Green and Blue
sub-pixels or dots which are arranged in vertical stripes. Gray scale or the brightness of the sub-pixel color is
determined with
a 8-bit gray scale signal for each dot, thus, presenting a palette of more than 16,7M colors with
Advanced-FRC(Frame Rate Control). It has been designed to apply the interface method that enables low power,
high speed, low EMI. FPD Link or compatible must be used as a LVDS(Low Voltage Differential Signaling) chip. It is
intended to support applications where thin thickness, wide viewing angle, low power are critical factors and graphic
displays are important. In combination with the vertical arrangement of the sub-pixels, the LM230WF3-S2F2
characteristics provide an excellent flat panel display for office automation products such as monitors.

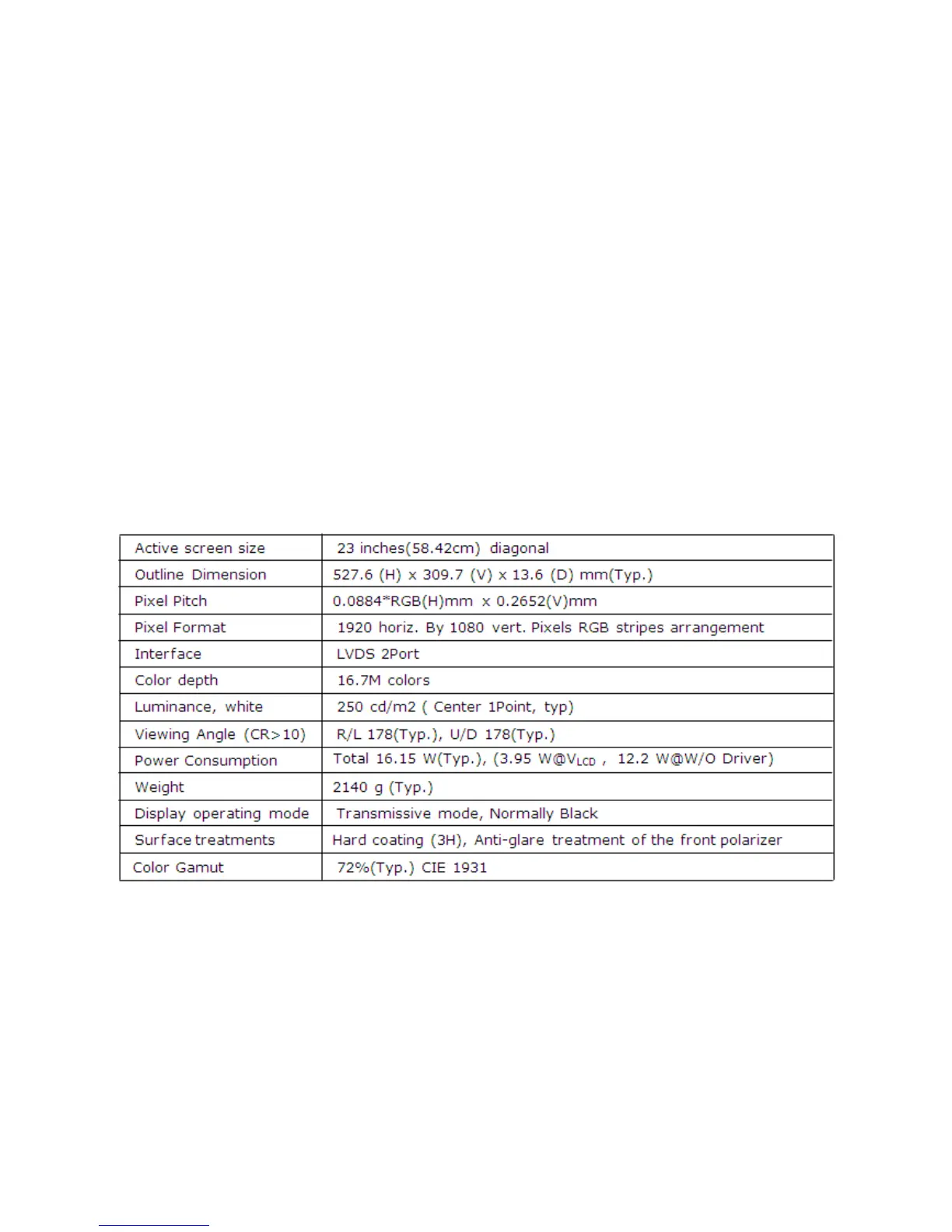

4.3.2 Display Characteristics

AOC I2369Vm Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	-
Pixel frequency	170 MHz
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	286.74 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.76 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.1
Headphone connectivity	3.5 mm
Tilt angle range	-3 - 21 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	29 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Mean time between failures (MTBF)	50000 h
Feet color	Black/Silver
Certification	GOST
Product color	Black, Silver
Front bezel color	Silver
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	Home
Cables included	AC, HDMI, VGA
HDMI cable length	1.5 m
Power cable length	1.2 m
Package type	Box
Package depth	138 mm
Package width	603 mm
Package height	467 mm
Package weight	5480 g
Sustainability certificates	RoHS, ENERGY STAR
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth (with stand)	204 mm
Height (with stand)	398 mm
Weight (with stand)	3760 g
Depth (without stand)	44.9 mm
Width (without stand)	531.4 mm
Height (without stand)	326.5 mm
Weight (without stand)	- g
