AOC I2369Vm Service Manual

30
DP
DP_RETU RN
DP_AU X_CHP
DP_AU X_CHN
OEM MODEL Size
Rev
Date
Sheet of
TPV MODEL
PCB NAME
称爹
T P V ( Top Victory Electronics Co . , Ltd. )
Key Component
絬 隔 瓜 絪 腹 I2269VW M D
AOC
B
48Tuesday , Nov ember 06, 2012
<
称爹 >
G5812-M0B-AOC-X-1-120911.DSN

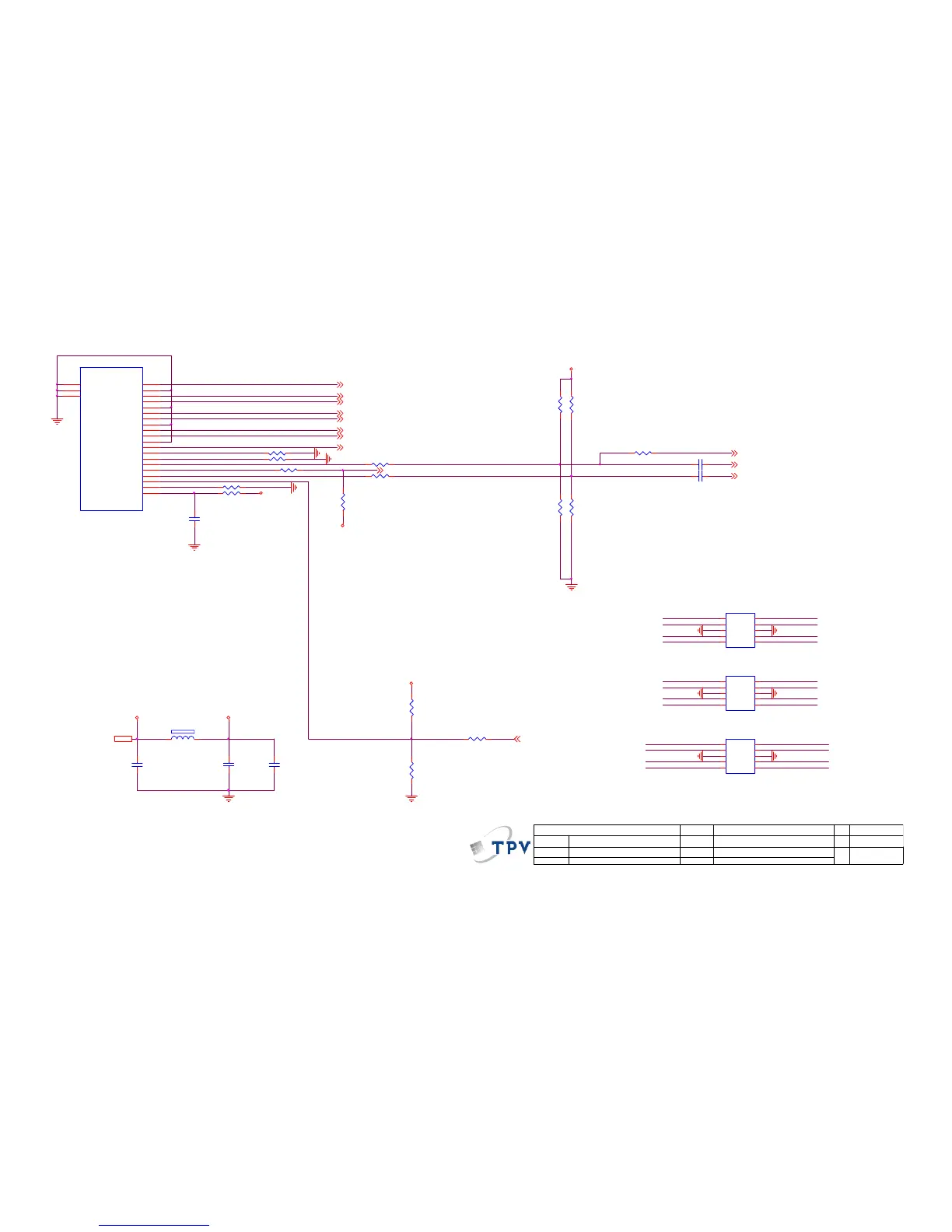

04.DP
DP_RX2N
DP_RX3P
DP_RX2P
DP_RX3N
DP_RX2N
DP_RX2P
DP_RX3P
DP_RX3N
C148
0.1U F 16V
U114
AOZ8804DI
CH1
1
CH2
2
VN
3
CH3
4
CH4
5
NC
6
NC
7
VN
8
NC
9
NC
10
DP_PLUGIN
R1861MOH M 1/16W +/-5%
FB106 120R 6A
1 2
CN104
DP CONNECTOR
SHELL1
21
SHELL2
22
ML_ Lane 3(n)
1
GND
2
ML_ Lane 3(p)
3
ML_ Lane 2(n)
4
GND
5
ML_ Lane 2(p)
6
ML_ Lane 1(n)
7
GND
8
ML_ Lane 1(p)
9
ML_ Lane 0(n)
10
GND
11
ML_ Lane 0(p)
12
CONFIG1
13
CONFIG2
14
AUX_CH(p)
15
GND
16
AUX_CH(n)
17
Hot Plug Detect
18
Return
19
SHELL3
23
DP_PWR
20
R178 1K
R181 0.05R
R180 0.05R
R184 0 OHM +- 5% 1/8W
R1751MOHM 1/ 16W +/-5%
DP_RX1P
DP_RX0N
C145
0.1UF 16V
R177 0. 05R
DP_RX0P
DP_RX1N
R179 0. 05R
R185NC
U116
AOZ8804DI
CH1
1
CH2
2
VN
3
CH3
4
CH4
5
NC
6
NC
7
VN
8
NC
9
NC
10
R187
NC
U115
AOZ8804DI
CH1
1
CH2
2
VN
3
CH3
4
CH4
5
NC
6
NC
7
VN
8
NC
9
NC
10
R176NC
DP_RX0P
DP_RX1P
C147
0.1U F 16V
R182 0.05R
DP_RX1N
DP_RX0N
R188 100OHM
C146
10UF 10V
R189
NC/100K1/16W
+3V32,3, 5,7,8
DP_VDD
DP_VDD
DP_VDD
DP_DET
+3V3 DP_VDD
DP_AUX_CHN
DP_PLUGIN
DP_AUX_CHP DP_AUX_CHP
DP_AUX_CHN
DP_PLUGIN
DP_DET
DP_VDD
DP_PWR
DP_RX0N 5
DP_RX2N 5
DP_RX1N 5
DP_RX1P 5
DP_RX3N 5
DP_RX3P 5
DP_RX2P 5
DP_RX0P 5
DP_PLUG1 5
DP_AUXP 5
DP_AUXN 5
R192 100OHM
DP_DET 5
R190
100K1/16W
+3V3
DP_HPD 5
DPGND
C149
0.1UF 16V
C150
0.1UF 16V
DPGND

AOC I2369Vm Specifications

General

3D	No
Pixel pitch	0.265 x 0.265 mm
Aspect ratio	16:9
Screen shape	Flat
Backlight type	W-LED
Display surface	-
Pixel frequency	170 MHz
Display diagonal	23 \
Display technology	LED
Vertical scan range	50 - 76 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 83 kHz
Viewable size, vertical	286.74 mm
Contrast ratio (dynamic)	20000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Viewable size, horizontal	509.76 mm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1920 x 1080 (HD 1080)
HDCP	Yes
HDMI version	1.4
DisplayPort version	1.1
Headphone connectivity	3.5 mm
Tilt angle range	-3 - 21 °
Cable lock slot type	Kensington
Number of OSD languages	16
Panel mounting interface	75 x 75 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, ITA, JPN, KOR, POL, POR, RUS, SWE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Annual energy consumption	29 kWh
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Mean time between failures (MTBF)	50000 h
Feet color	Black/Silver
Certification	GOST
Product color	Black, Silver
Front bezel color	Silver
Heavy metals free	Hg (mercury), Pb (lead)
Market positioning	Home
Cables included	AC, HDMI, VGA
HDMI cable length	1.5 m
Power cable length	1.2 m
Package type	Box
Package depth	138 mm
Package width	603 mm
Package height	467 mm
Package weight	5480 g
Sustainability certificates	RoHS, ENERGY STAR
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 85 %

Weight and Dimensions

Depth (with stand)	204 mm
Height (with stand)	398 mm
Weight (with stand)	3760 g
Depth (without stand)	44.9 mm
Width (without stand)	531.4 mm
Height (without stand)	326.5 mm
Weight (without stand)	- g
