14. Check List after replacing LCD Main Board
Check if white-balance is within the specs after replacing Main board and panel,then re-writing DDC is
necessary.
14.1 Check white-balance
The white-balance value for each common color temperature:
9300 º K: x=283± 20 ; y = 297± 20;
6500K: x = 313± 20 ; y = 329 ± 20;
sRGB: x = 313± 20 ; y = 329 ± 20;
The color temperature value above must be up to the situation of x<y. The value of Y should be
confirmed according to different customers. 15 ”LCD is commonly 180±20cd/cm
2
（Center）and 17” LCD is
required to be larger than 200cd/cm
2
(Center). The exact brightness values are confirmed by the
checking-regulations of different customers and different models.
14.2 Steps for writing DDC：
Re-programming Analog DDC IC

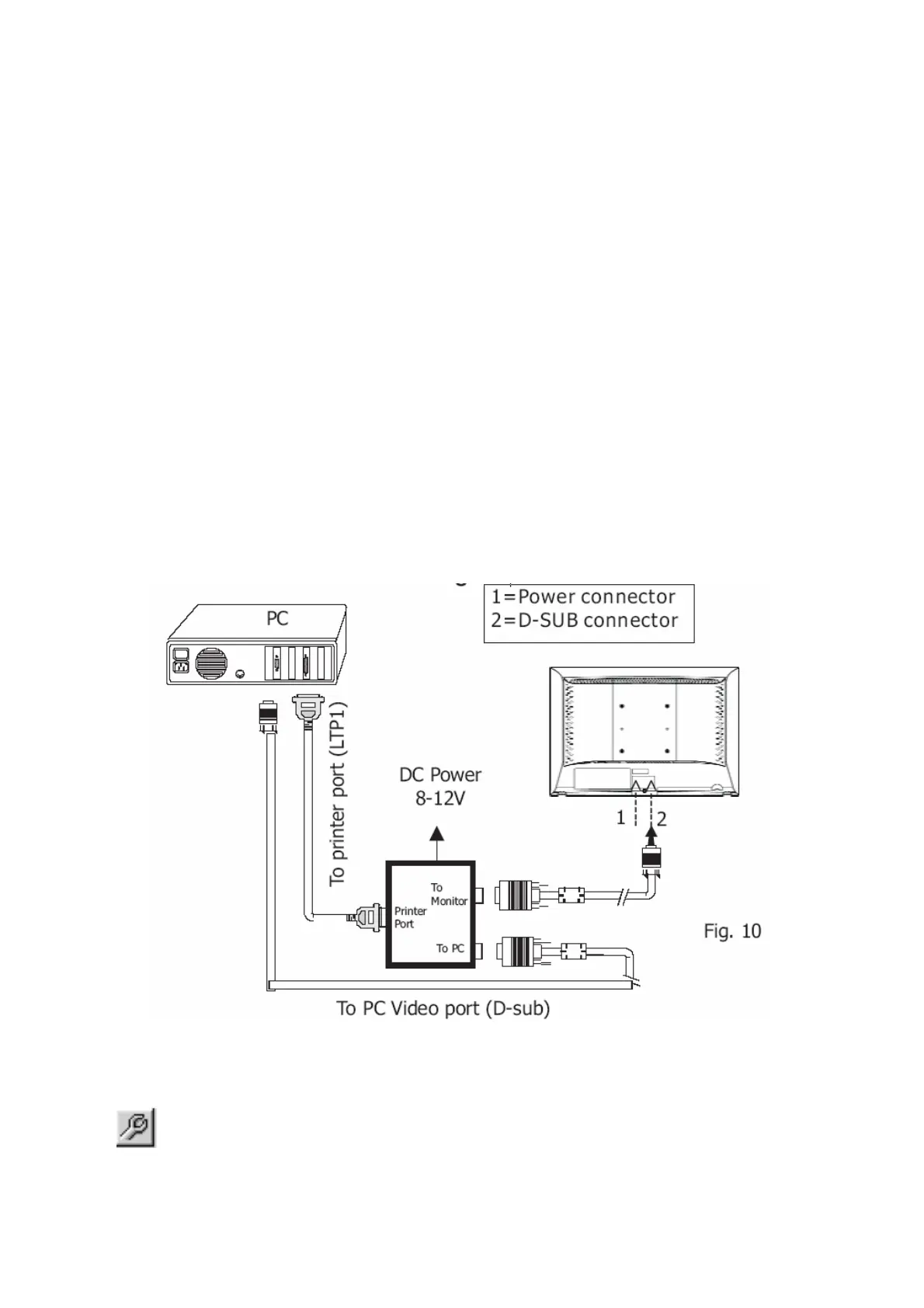

Step 1: After initialize alignment box, connecting all cables and box as shown in Fig. 10.
Step 2: Read DDC data from monitor
1. Click
icon as shown in Fig. 11 from the tool bar to bring up the Channels "Configuration Setup" windows as
shown in Fig. 11.
To Next Page
