13
Connecting Your Basic Set-Top Box
Using Composite Video
1. Turn off the TV and Set-Top Box.

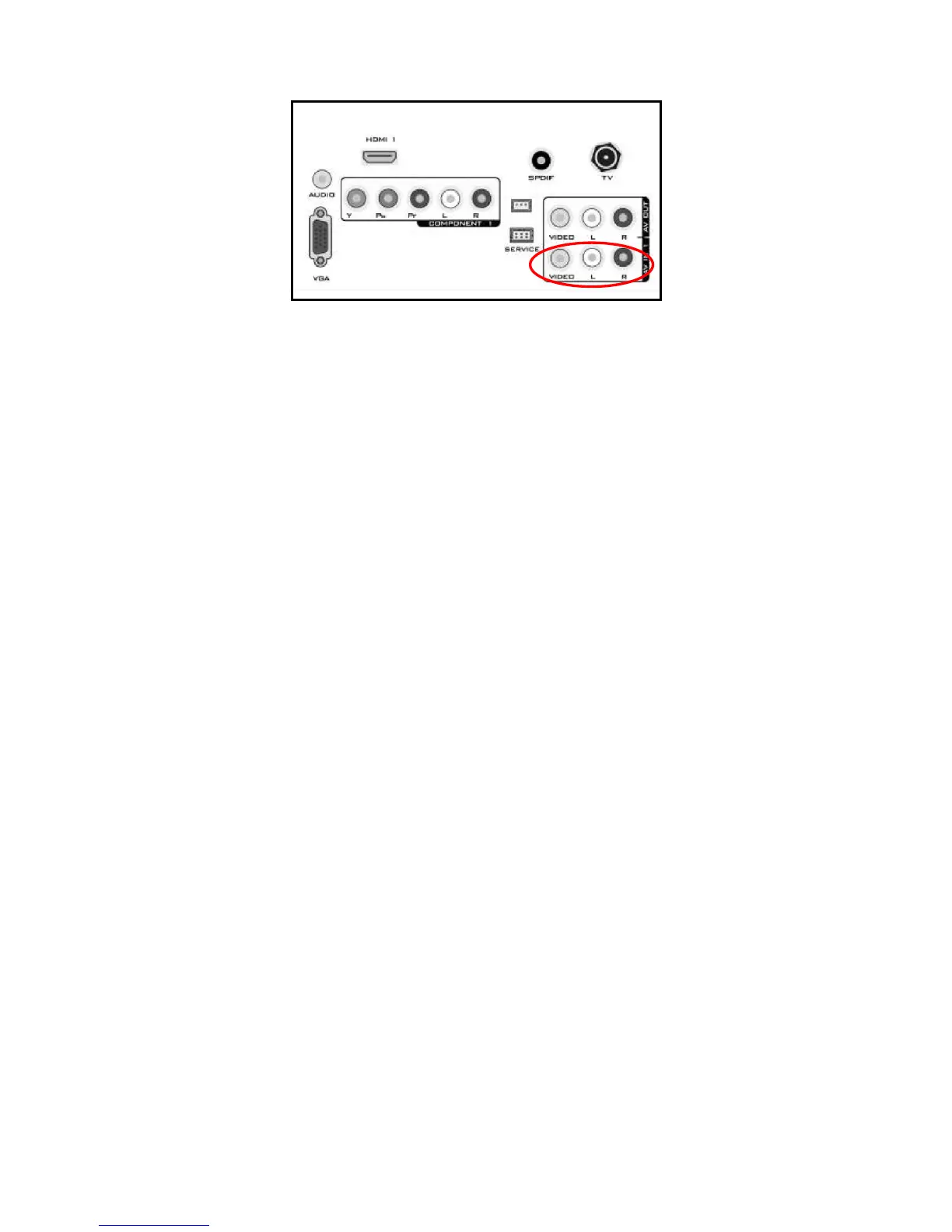

2. Using an AV Cable, connect the Video (yellow color) connector on your Set-Top Box to the corresponding Video
(yellow color) connector in the AV group at the rear of the TV.
3. Using the red and white connectors, connect the cable to the audio output connectors associated with the Video
output on your Set-Top Box and connect the other end to the audio connectors associated with the AV input at the
rear of the TV.
4. Turn on the TV and Set-Top Box.
5. Select AV-1 using the SOURCE button on the Remote control or the INPUT keypad on the side of the TV or
directly by pressing the VIDEO button on the Remote Control.
