For TV Set-Top Boxes with DVI
1. Turn off the power to the TV and TV Set-Top Box.
2. Using a HDMI-DVI cable, connect the DVI end to your TV Set-Top
Box and the HDMI end to the HDMI Input at the rear of the TV.
3. Turn on the power to the TV and TV Set-Top Box.
4. Select HDMI using the INPUT button on the remote, side of the TV,
or directly by pressing the PC/HDMI button on the Remote Control.
Using Component Video
Connecting your TV Set-Top Box (Better):
1. Turn off the power to the TV and TV Set-Top Box.

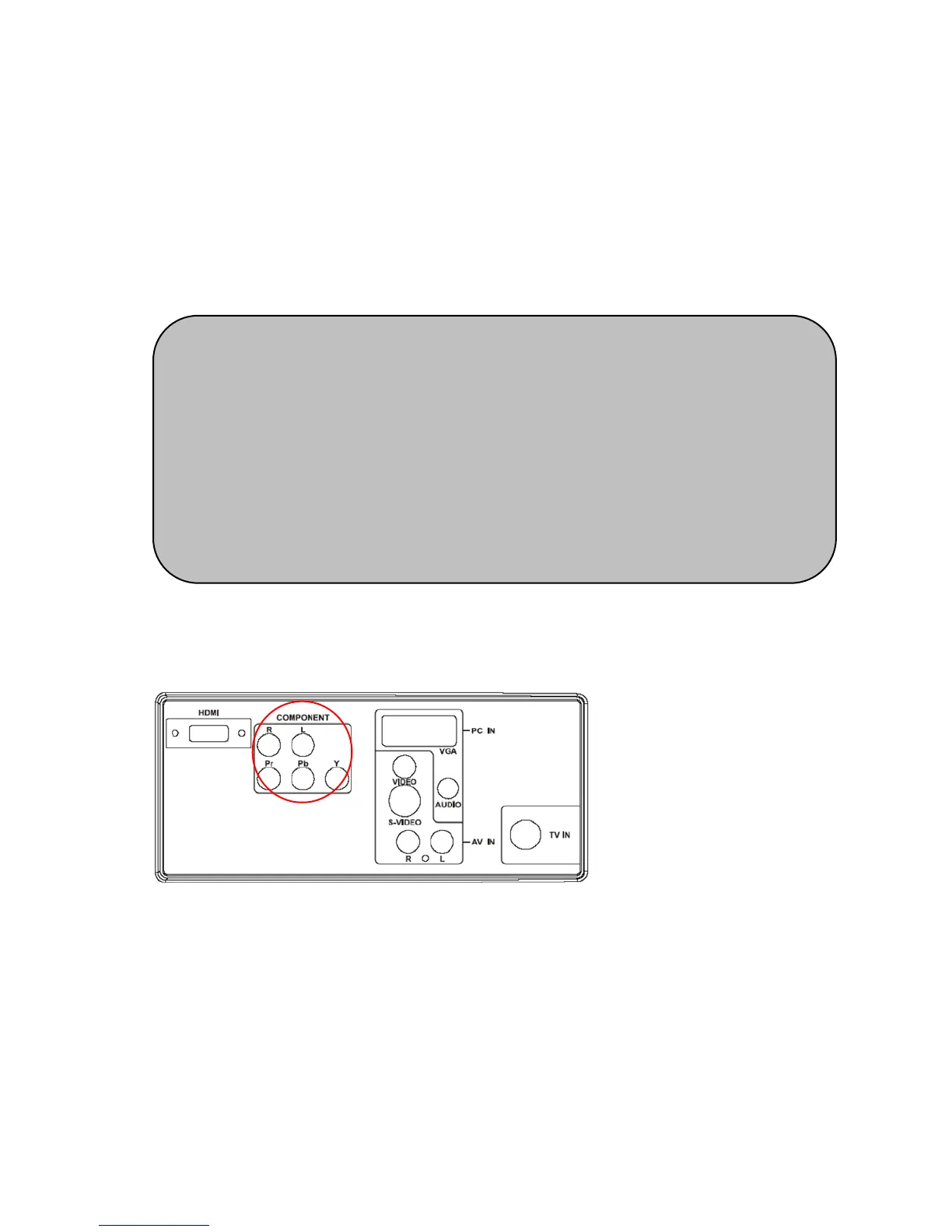

2. Connect the Pr (red color) connector on your TV Set-Top Box to the
corresponding Pr (red color) connector in the Component group.
3. Connect the Pb (blue color) connector on your TV Set-Top Box to
the corresponding Pb (blue color) connector in the Component
group.
4. Connect the Y (green color) connector on your TV Set-Top Box to
the corresponding Y (green color) connector in the Component
group.
Note:
a) The HDMI input on the TV supports High-bandwidth Digital Content
Protection (HDCP). HDCP encrypts the transmission between the
video source and the digital display for added security and protection.
b) Refer to your TV Set-Top Box user manual for more information about
the video output requirements of the product or consult your cable or
satellite operator.
c) The DVI to HDMI connection provides video only. Connecting an
alternate audio player to PC audio port is required for audio.
To Next Page
