Using Component Video
Connecting your DVD Player (Better)
1. Turn off the power to the TV and DVD player.

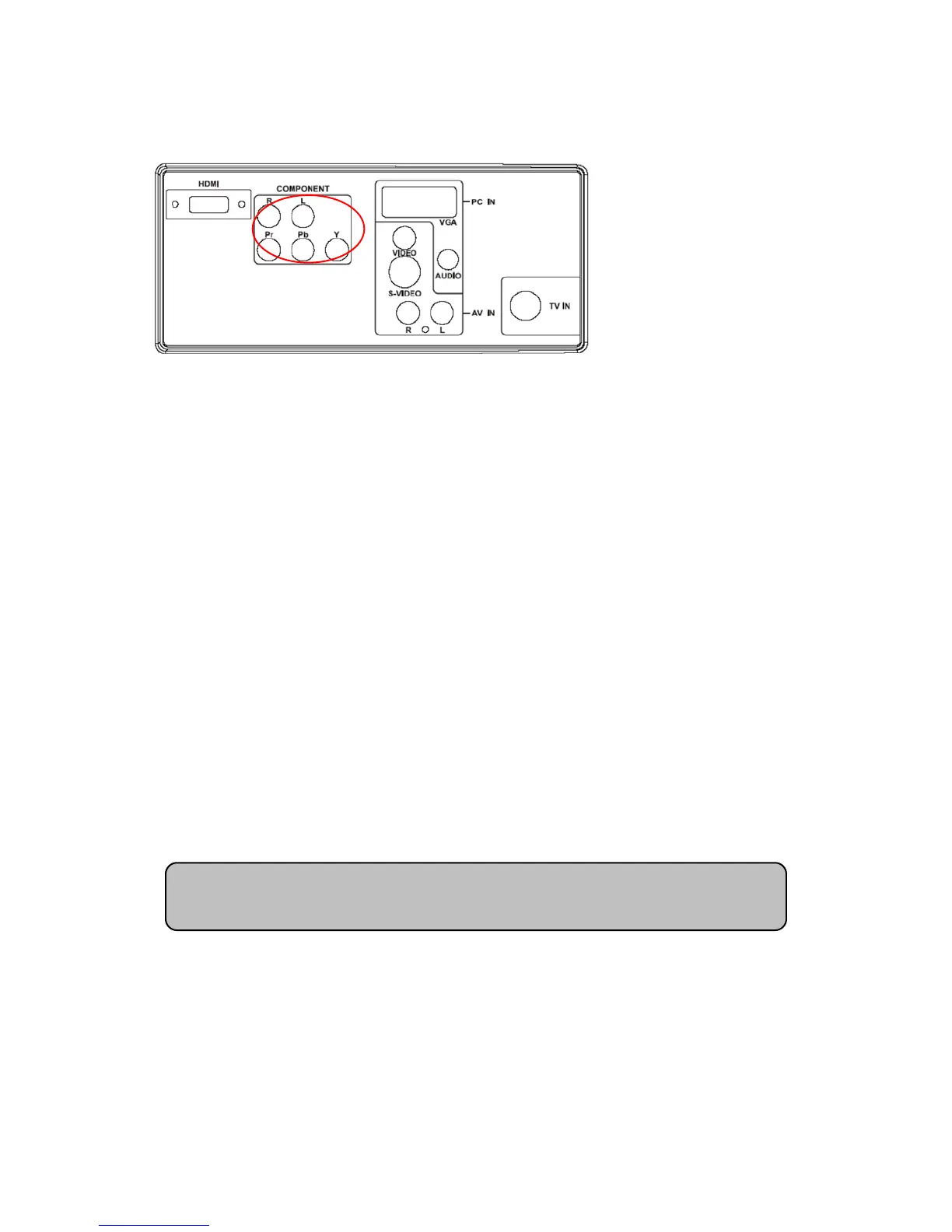

2. Connect the Pr (red color) connector on your DVD player to the
corresponding Pr (red color) connector in the Component at the rear
of the TV.
3. Connect the Pb (blue color) connector on your DVD player to the
corresponding Pb (blue color) connector in the Component group at
the rear of the TV.
4. Connect the Y (green color) connector on your DVD player to the
corresponding Y (green color) connector in the Component group at
the rear of the TV.
5. Using an audio cable (red and white connectors), connect the cable
to the audio output connectors associated with the Component
output on your DVD player and connect the other end to the audio
connectors associated with the Component input at the rear of the
TV.
6. Turn on the power to the TV and DVD player.
7. Select Component using the INPUT button on the remote, side of
the TV or directly by pressing the COMP button on the Remote
Control.
Note: Refer to your DVD player user manual for more information
about the video output requirements of the product.
