22ƎLCD TV AOC L22W961

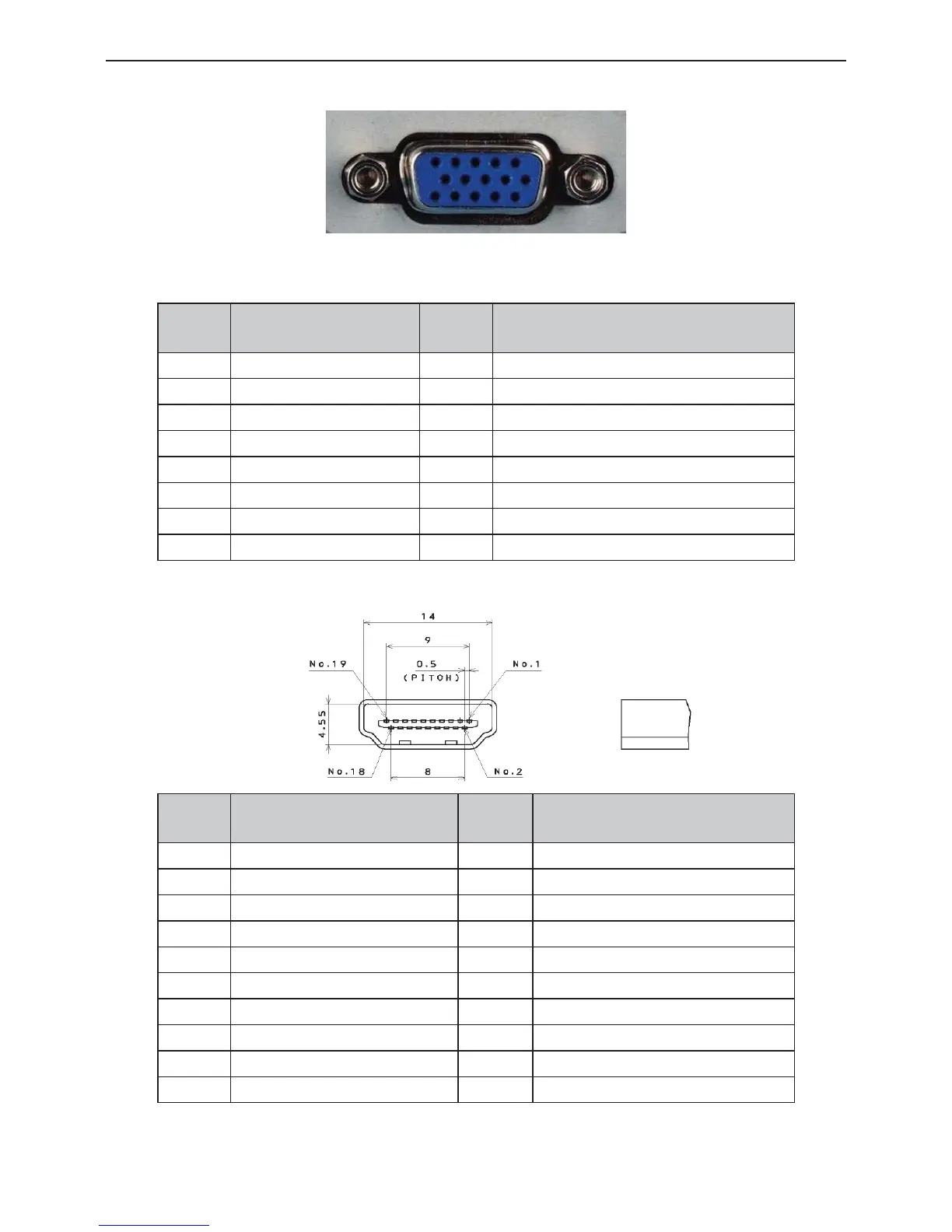

3. Input/Output Specification

3.1 RGB Signal Input

15 - Pin Color Display Signal Cable

Pin No. Description Pin No. Description

1 Red Video 9 No Pin

2 Green Video 10 Sync Ground

3 Blue Video 11 SDA(Remote Control)

4 SCL(Remote Control) 12 Serial Data for DDC

5 Ground 13 H-Sync.

6 Red Video Ground 14 V-Sync.

7 Green Video Ground 15 Serial Clock for DDC

8 Blue Video Ground

3.2 HDMI Digital Connector Pin Assignments

Pin No. Description Pin No. Description

1 TMDS Data2+ 2 TMDS Data2 Shield

3 TMDS Data2- 4 TMDS Data1+

5 TMDS Data1 Shield 6 TMDS Data1-

7 TMDS Data0+ 8 TMDS Data0 Shield

9 TMDS Data0- 10 TMDS Clock+

11 TMDS Clock Shield 12 TMDS Clock-

13 CEC 14 NC

15 SCL 16 SDA

17 DDC/CEC Ground 18 +5V Power

19 Hot Plug Detect
