22ƎLCD TV AOC L22W961
35
Note: We can use the HDMI white balance to cover the white balance of all source modes, this method is
meeting to the Zoran 775 software.
HDMI mode:
. In the TV mode adjust volume to zero, press menu key and then press number key 1
9. It will

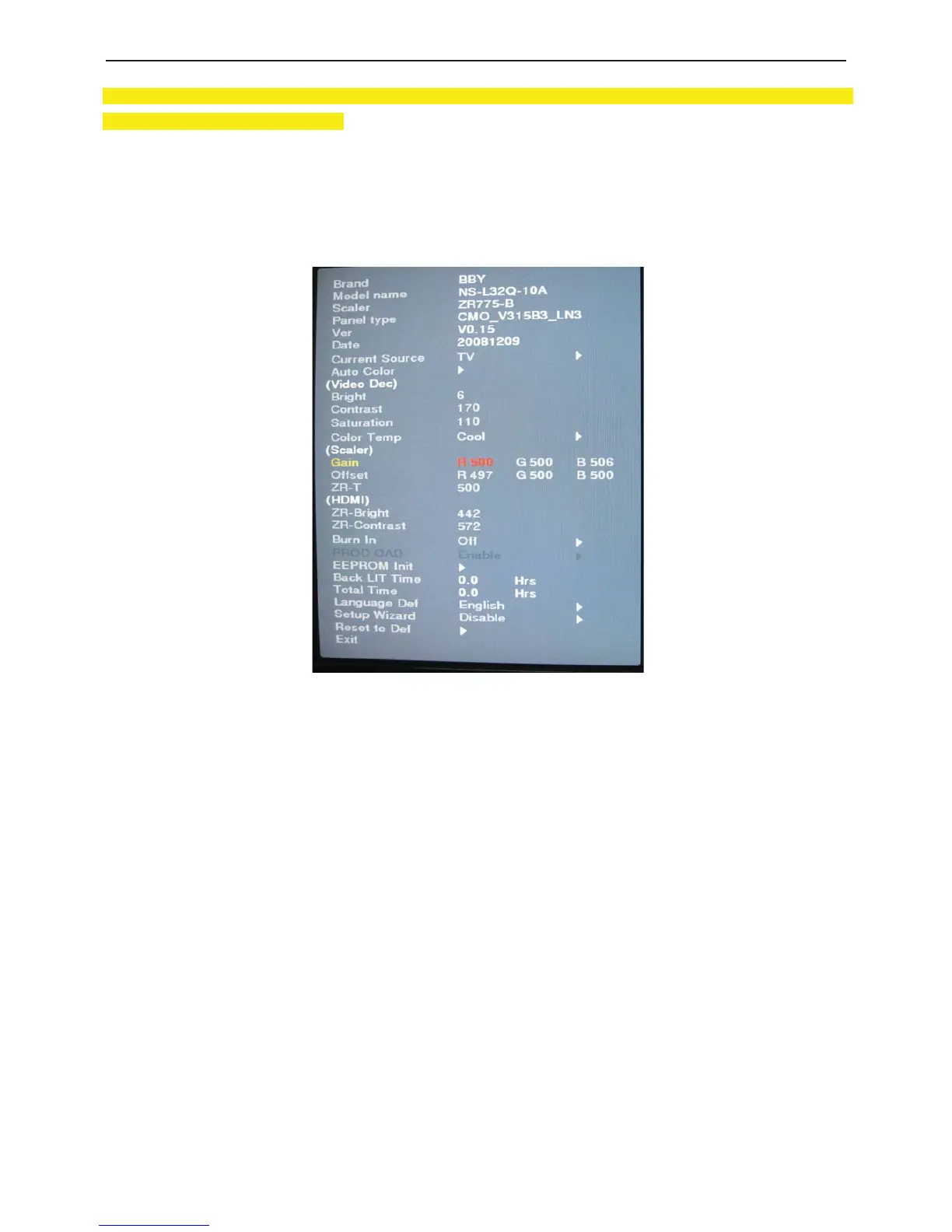

achieve the factory mode. Select the item of White Balance and press right key to enter it. The factory menu
follow picture:
.before to adjust the white balance, please press the factory mode OSD of “Reset” to reset all white
balance factory setting.
In the White Balance you can adjust 8 items.
1> R Offset, G Offset, B Offset Æ R, G, B Offset adjust.
2> R Gain, G Gain, B Gain Æ R, G, B Gain adjust.
3> ZR-Bright adjust;
4>ZR-Contrast adjust;
5>ZR-T ÆColor Temp adjust;
. Gain adjustment:
A. Adjust Cool color-temperature:
1. Set the pattern generator to pattern 104 or 0 IRE pattern. And adjust the Item “ZR-Bright” to min luminance.
2. Switch the Ca210 to xyLv-mode (with press “MODE” button)
3. Switch the Ca210 channel to Channel 05 (with up or down “MEMORY CH” button)
4. The LCD-indicator on Ca210 will show x =289, y =304, Lv can adjust to max luminance.
5. Use the item R Offset and B Offset adjust to Adjust black balance: use 20 IRE(Pattern 190) signal, and adjust the
To Next Page
