AOC L32W781A User Manual

32’’ LCD TV AOC L32W781A
20

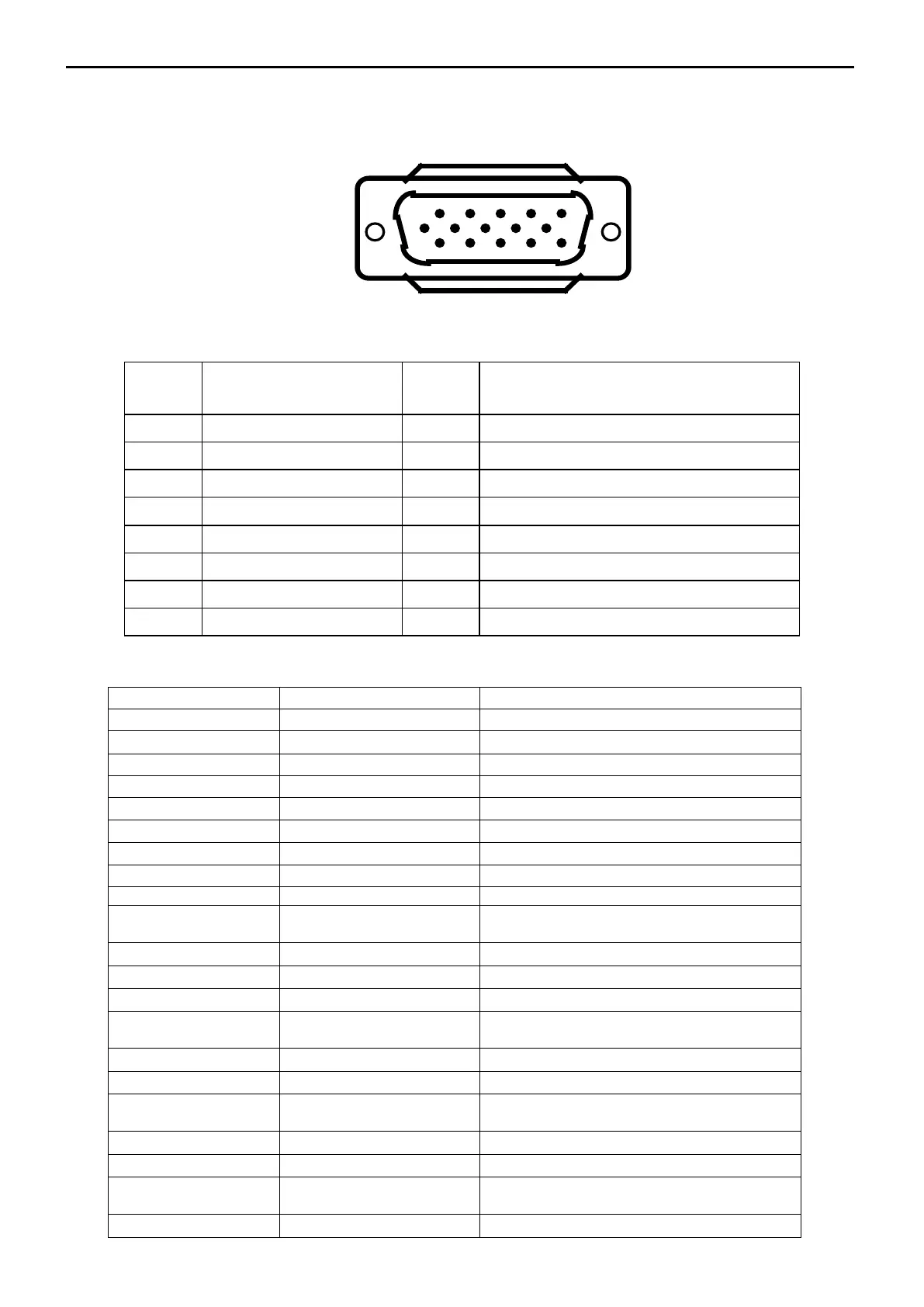

3. Input/Output Specification
3.1 RGB Signal input
15 - Pin Color Display Signal Cable
Pin No. Description Pin No. Description
1 Red Video 9 No Pin!
2 Green Video 10 Sync Ground
3 Blue Video 11 Not Used
4
Not Used
12
Serial Data for DDC
5 Ground 13 H-Sync.
6 Red Video Ground 14 V-Sync.
7 Green Video Ground 15 Serial Clock for DDC
8 Blue Video Ground
CVBS/S-VIDEO/ SCART /COMPONENT/HDMI INPUTS
Composite Video
Video system
NTSC/PAL/SECAM
Amplitude
1.0Vpp (including sync )
Impedance 75 ohm terminated
S-Video
Video system
NTSC/PAL/SECAM
Y signal amplitude
1.0Vpp (including sync )
C signal amplitude 0.286Vpp
Impedance
75 ohm terminated
SCART (RGB)
Video system
PAL/SECAM
R/G/B signal amplitude
0.7Vpp
CVBS signal amplitude
1.0Vpp (including sync )
Impedance
75 ohm terminated
SCART (Composite)
Video system
PAL/SECAM
Amplitude
1.0Vpp (including sync )
Impedance
75 ohm terminated
HDMI
( EIA/CEA-861B )
Output Formats H/V Frequency
Component
1.
480 I SDTV)
15.734K / 60 HZ
2.
480 P (SDTV)
31.469K / 60
3.
576 I (SDTV)
15.625K / 50
4. 576 P (SDTV) 31.250K / 50
5.
1080I /60 (HDTV)
33.750K / 60
6.
1080I /50 (HDTV)
28.125K / 50
1
6
11
15
5
10
