AOC L42H861

42″LCD TV AOC L42H861
18

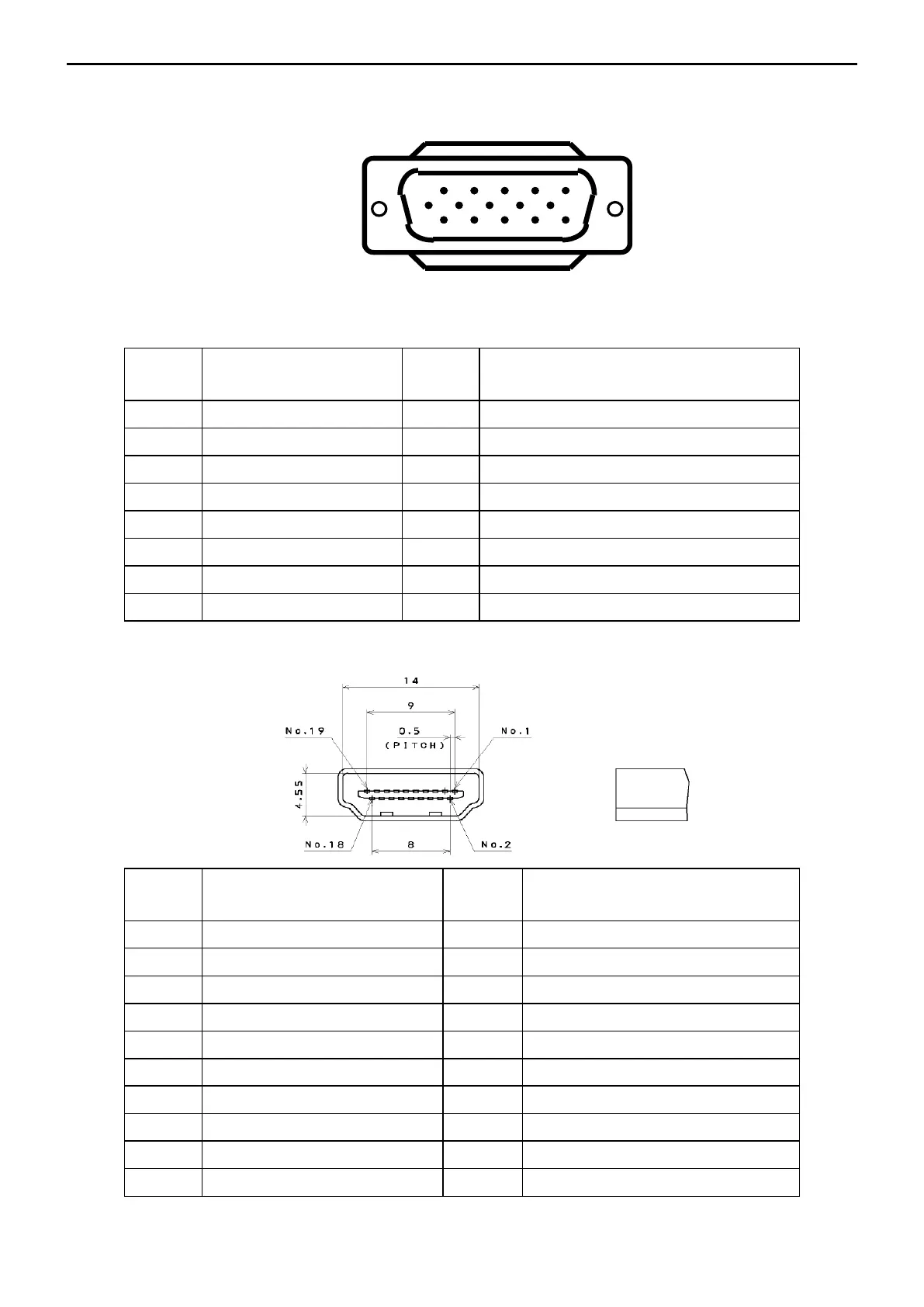

3. Input/Output Specification
3.1 RGB Signal input
15 - Pin Color Display Signal Cable
Pin No.
Description
Pin No.
Description
1
Red Video
9
Mandatory +5V Supply for PC Bypass
2
Green Video
10
Sync Ground
3
Blue Video
11
SDA(Remote Control)
4
SCL(Remote Control)
12
Bi-directional Data (SDA) for PC Bypass
5
Ground
13
H-Sync.
6
Red Video Ground
14
V-Sync.
7
Green Video Ground
15
Data Clock (SCL) for PC Bypass
8
Blue Video Ground
3.2 HDMI Digital connector pin assignments
Pin No.
Description
Pin No.
Description
1
TMDS Data2+
2
TMDS Data2 Shield
3
TMDS Data2-
4
TMDS Data1+
5
TMDS Data1 Shield
6
TMDS Data1-
7
TMDS Data0+
8
TMDS Data0 Shield
9
TMDS Data0-
10
TMDS Clock+
11
TMDS Clock Shield
12
TMDS Clock-
13
CEC
14
NC
15
SCL
16
SDA
17
DDC/CEC Ground
18
+5V Power
19
Hot Plug Detect
1
6
11
15
5
10
