AOC L42H861 User Manual

12
HDMI S-Video Composite Pr Pb Y PC Audio in 15-pin D-Sub

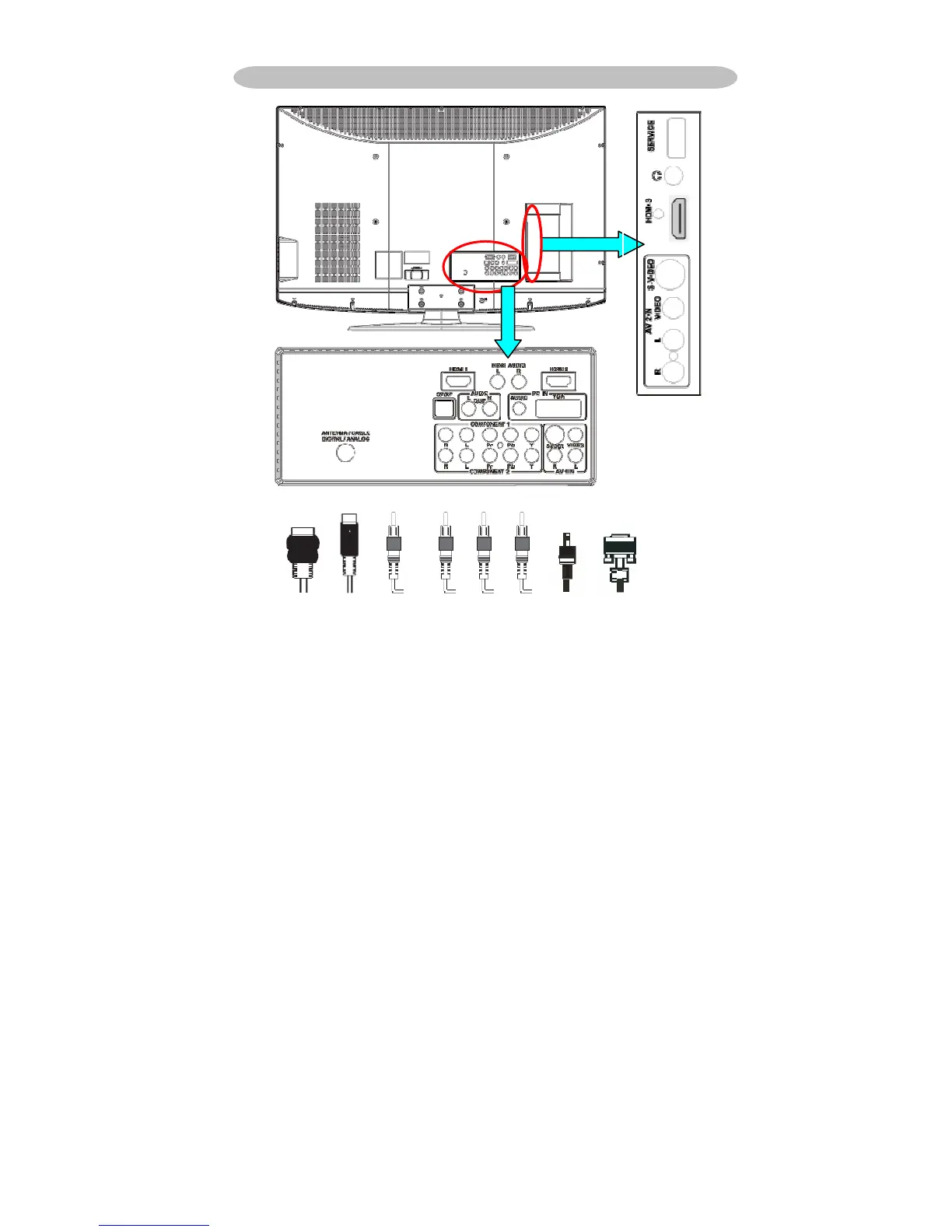

1. HDMI – Connect the primary source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
The white color band on the rear of the TV indicates this connection.
2. RGB PC – Connect the video and audio cables from a computer
here.
3. AV/S-VIDEO IN – Connect the primary source for composite video
devices, such as a VCR or video game. Use the white and red
connectors to connect the external audio from the same source.
The signal being carried by the S-Video cable and connector, if
connected, will take priority over the Video RCA connector (yellow
connector).
PERIPHERAL CONNECTION GUIDE

AOC L42H861 Specifications

General

3D	No
Power LED	Yes
Pixel pitch	0.4845 x 0.4845 mm
Vertical scan range	60 - 75 Hz
Headphone connectivity	3.5 mm
Digital vertical frequency	56 - 75 Hz
Digital horizontal frequency	31.5 - 60 kHz
Response time	8 ms
Display diagonal	42 \
Display brightness	500 cd/m²
Display technology	LCD
Native aspect ratio	16:9
Contrast ratio (dynamic)	6000:1
Contrast ratio (typical)	1500:1
Display number of colors	16.78 million colors
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
Package depth	251.46 mm
Package width	1155.7 mm
Package height	807.72 mm
Package weight	25600 g
Certification	FCC, cULus, RoHS, TUV-S
Audio (L/R) out	1
SCART ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	2
Sustainability certificates	ENERGY STAR
Product color	Black
LED indicators	Y, Stand-by
Panel mounting interface	400 x 200 mm
Cables included	AC, VGA
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	250 W
RMS rated power	14 W
Tuner type	Analog
Analog signal format system	NTSC, PAL, PAL M, PAL N

Weight and Dimensions

Depth (with stand)	261.62 mm
Width (with stand)	1010.92 mm
Height (with stand)	688.34 mm
Depth (without stand)	99.06 mm
Height (without stand)	635 mm
